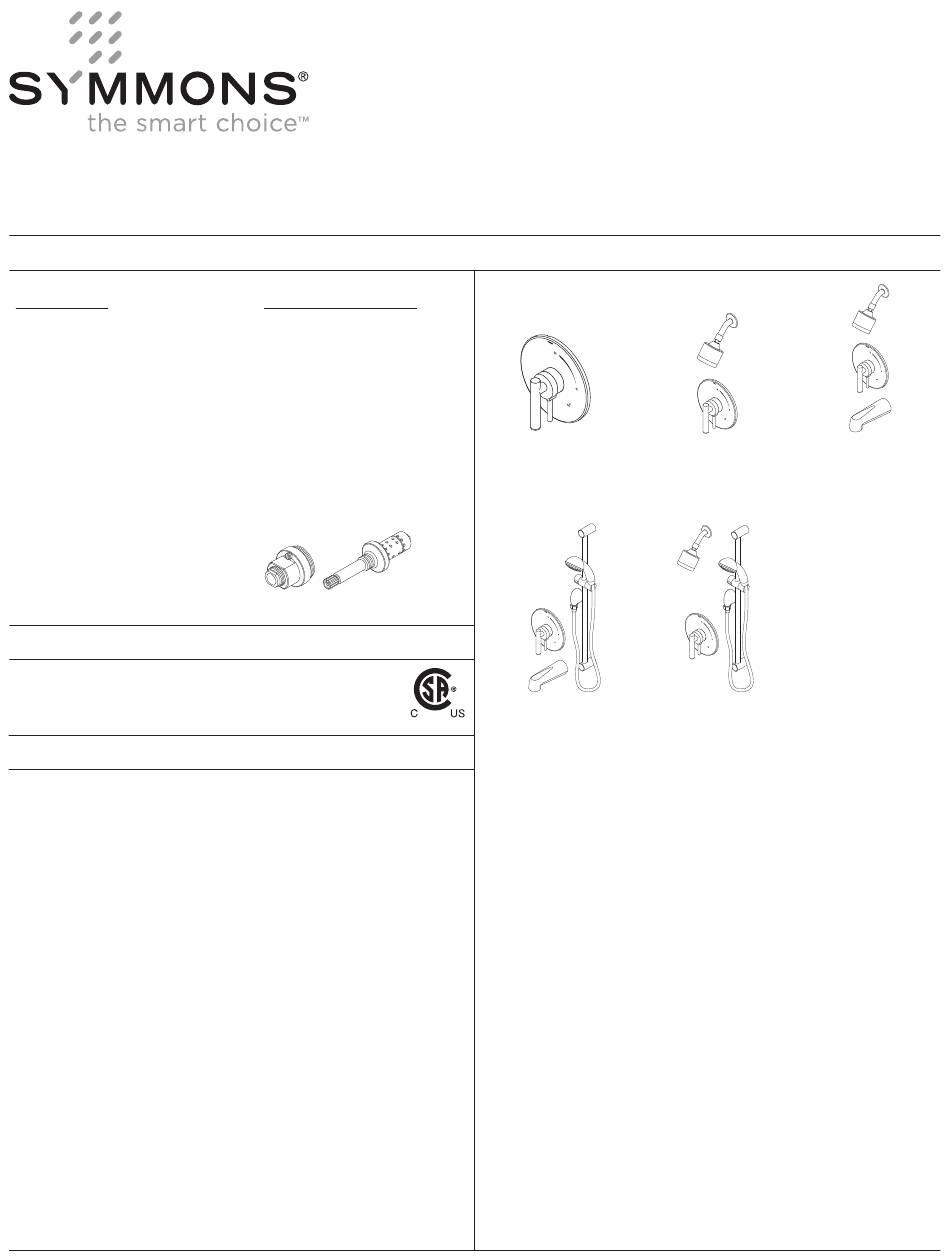

Dia Trim Series
Dia Trim Series with TA-10 Flow Control Spindle & T-12A Cap Assembly
Installation & Operation Instructions
Model Numbers
TRIM ONLY
S-3500-CYL-B-TRM

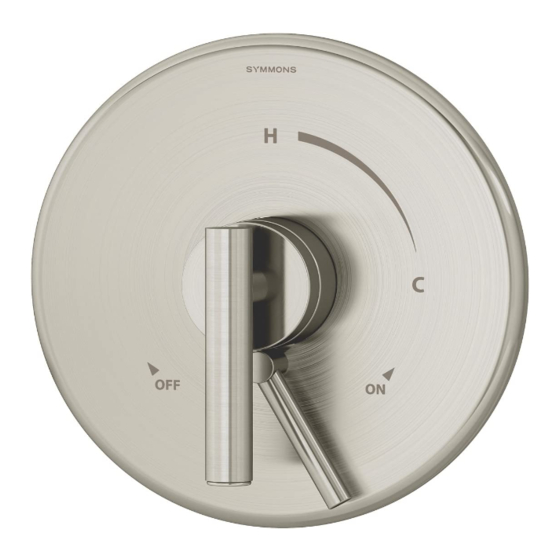

Shower Valve Trim
S-3501-CYL-B-TRM
Shower Trim
S-3502-CYL-B-TRM
Tub/Shower Trim
S-3504-H321-V-CYL-B-TRM
Tub/Hand Shower Trim
S3508BTRM
Shower/Hand Shower Trim
Compliance
•
ASME A112.18.1/CSA B125.1
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Go to www.symmons.com/register to register your
Symmons product.
Dia
®
TRIM, TA-10, T-12A
S3500CYLBTRMTC
Shower Valve Trim
S3501CYLBTRMTC
Shower Trim
S3502CYLBTRMTC
Tub/Shower Trim
S3504H321CYLBTRMTC
Tub/Hand Shower Trim
S3508BTRMTC
Shower/Hand Shower Trim
T-12A
TA-10
S-3500-CYL-B-TRM
S-3501-CYL-B-TRM
S3500CYLBTRMTC
S3501CYLBTRMTC
S-3504-H321-V-CYL-B-TRM
S3504H321CYLBTRMTC
S-3502-CYL-B-TRM
S3502CYLBTRMTC
S3508BTRM
S3508BTRMTC
Advertisement
Table of Contents
Related Manuals for Symmons Dia Trim Series
Summary of Contents for Symmons Dia Trim Series
- Page 1 ® Dia Trim Series Dia Trim Series with TA-10 Flow Control Spindle & T-12A Cap Assembly Installation & Operation Instructions Model Numbers TRIM ONLY TRIM, TA-10, T-12A S-3500-CYL-B-TRM S3500CYLBTRMTC Shower Valve Trim Shower Valve Trim S-3501-CYL-B-TRM S3501CYLBTRMTC Shower Trim Shower Trim...
- Page 2 1. Recommended Tools FIGURE 1 Adjustable Wrench Allen Wrench (3mm) Drill Phillips Screwdriver Safety Glasses Thread Seal Tape 2. Dimensions Measurements FIGURE 2 Ø 2-1/2", 64 mm 6-3/4", 171 mm 6", 152 mm Male 1/2-14 NPT thread must be recessed 1/4" (6 mm) from finished wall Ref.
- Page 3 3. Parts Breakdown (Model Numbers Ending in TRMTC) Replacement Parts LIMIT STOP Item Description Part Number SCREW Cap Assy. T-12A Flow Control Spindle TA-10 IMPORTANT: Model numbers ending in TRMTC coordinate with Temptrol pressure balancing valves ordered with Test Cap. The Test Cap is used to allow pressurization of system.
- Page 4 7. Parts Breakdown FIGURE 7 Replacement Parts Item Description Part Number Showerhead 352SH Shower Arm 300S Flange Standard Handle T-242A Dome Cover T-19/20 Brass: Shower Escutcheon RTS-009 Screws Plastic: Mounting Plate RTS-010 Standard: Diverter/Volume RTS-014 Brass: Control Handle RTS-013 Tub Spout Slide Bar RA-009 Assembly...
- Page 5 8. Installation - Shower Valve Trim 1) Secure large mounting plate to Temptrol FIGURE 8.1 FIGURE 8.2 pressure balancing valve using mounting screws (FIGURE 8.1). 2) Place diverter/volume control handle into slot in shower escutcheon (FIGURE 8.2). 3) Secure large shower escutcheon to mounting plate. Guide handle into control port on valve body.
- Page 6 10. Installation - Slide Bar Assembly 1a) Dry Wall Option: Remove upper and lower caps from slide bar brackets. Place slide bar into desired position. Using brackets as a guide, carefully drill 3/16" holes into wall. Remove slide bar and install anchors. Note: Slide bar holes and bracket holes must be aligned before drilling.
- Page 7 FIGURE 12.1 clockwise to divert to tub spout or other Symmons accessory. Turn diverter control handle counterclockwise to divert to shower or other Symmons accessory. TUB/ACCESSORY SHOWER/ACCESSORY 13. Operation (Volume Control) Turn volume control handle FIGURE 13.1 clockwise to increase volume.
- Page 8 For more information, go to www.P65Warnings.ca.gov. ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2020 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3410 REV 0 030220...
