With/without ta-10 flow control spindle & t-12a cap assembly (8 pages)
Summary of Contents for Symmons Canterbury Trim Series

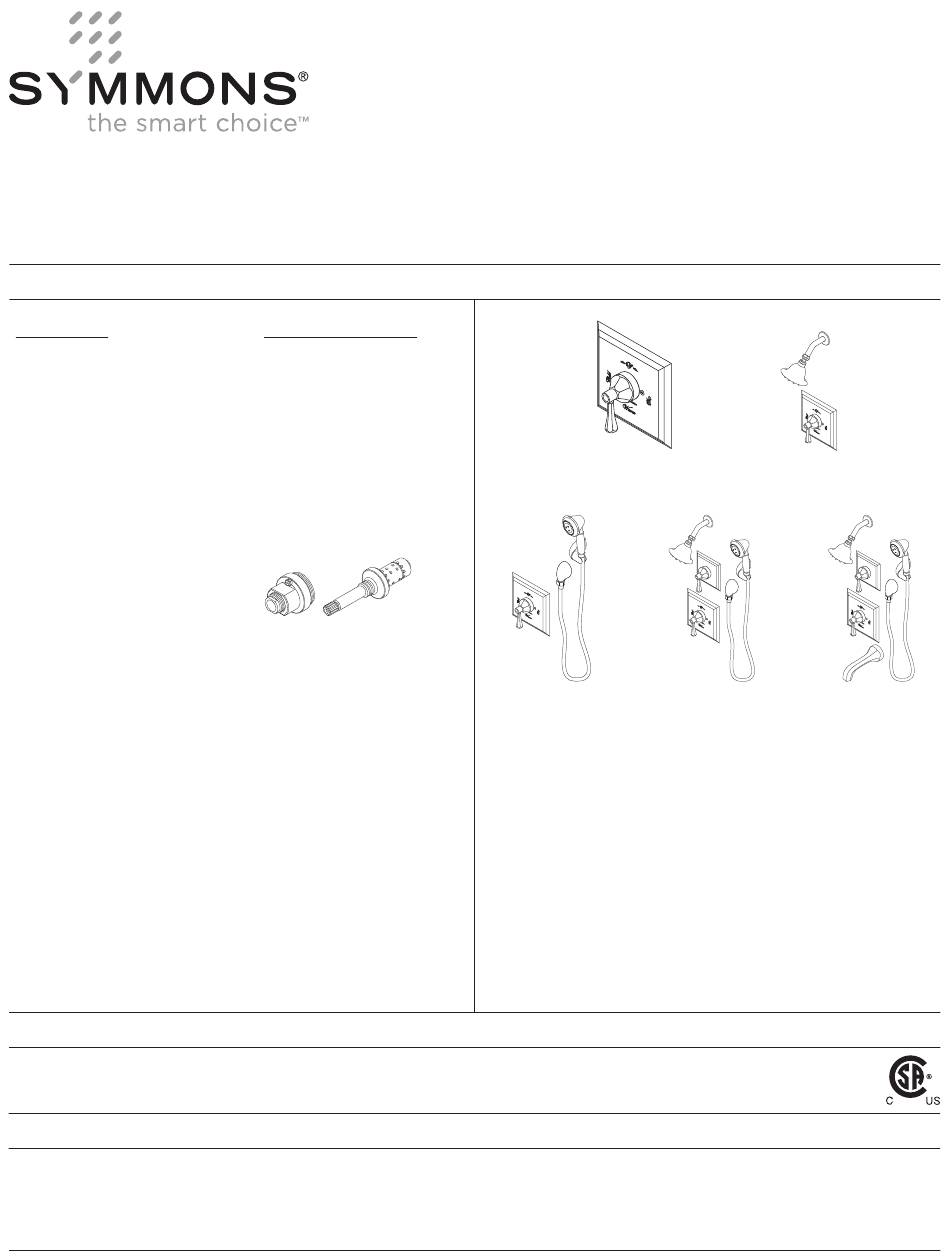

Page 1

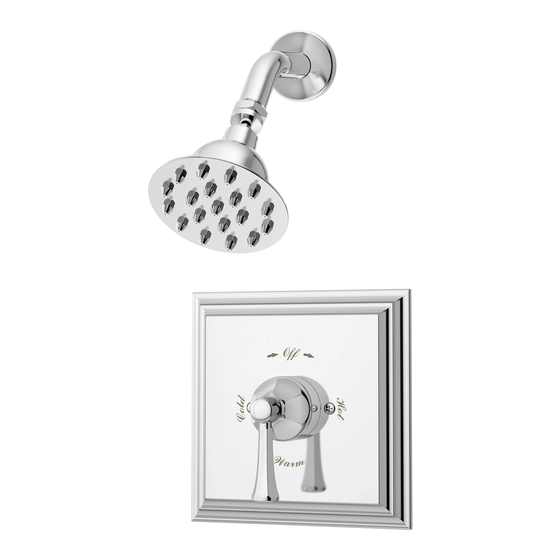

Canterbury ® Canterbury Trim Series Canterbury Trim Series with TA-10 Flow Control Spindle & T-12A Cap Assembly Installation & Operation Instructions Model Numbers TRIM ONLY TRIM, TA-10, T-12A 4500-TRM 4500TRMTC Shower Valve Trim Shower Valve Trim 4501-TRM 4501TRMTC Shower Trim...
Page 2
1. Recommended Tools FIGURE 1 Adjustable Wrench Allen Wrench (3mm) Drill Phillips Screwdriver Safety Glasses Thread Seal Tape 2. Dimensions Measurements FIGURE 2 Ø 2-1/4", 57 mm 8-5/8", 219 mm 2-1/8", 54 mm 6", 152 mm right or left 5", 127 mm 77", 1956 mm Male 1/2"...
Page 3
3. Parts Breakdown (Model Numbers Ending in TRMTC) Replacement Parts LIMIT STOP Item Description Part Number SCREW Cap Assy. T-12A Flow Control Spindle TA-10 IMPORTANT: Model numbers ending in TRMTC coordinate with Temptrol pressure balancing valves ordered with Test Cap. The Test Cap is used to allow pressurization of system.
Page 4
7. Parts Breakdown Replacement Parts FIGURE 7 Item Description Part Number Showerhead 4-163 Shower Arm Flange Plug Button Set Screw T-226 Star Washer Handle Lock Nut T-19/20-PL Dome Cover Diverter Escutcheon Mounting Screws T-531 Mounting Plate Mounting Screws T-225 Shower Escutcheon Hand Shower 442W Wall Cradle...
Page 5
Attach plug button to handle (FIGURE 8.3). FIGURE 8.3 9. Installation - Diverter Valve Trim 1) Secure small mounting plate to Symmons diverter valve FIGURE 9.1 FIGURE 9.2 using mounting screws (FIGURE 9.1). 2) Secure small diverter escutcheon to mounting plate.
Page 6
11. Installation - Slide Bar Assembly 1) Place mounting plate in position. Mark and drill 3/16" FIGURE 11.1 FIGURE 11.2 holes for tile anchors, 5/16" holes for drywall anchors. Install anchors (FIGURE 11.1). Note: For dry wall 1/2" thick or less, insert anchor tool into drywall anchor to secure behind wall prior to installing wall cradle.
Page 7
12. Operation (Temperature Control) 1) Turn shower handle counter-clockwise FIGURE 12.1 FIGURE 12.2 FIGURE 12.3 approximately 1/4 turn to put valve in cold position (FIGURE 12.1). 2) Turn shower handle counter- clockwise approximately 1/2 turn to put valve in warm position (FIGURE 12.2). 3) Turn shower handle counter- clockwise approximately 3/4 turn to put valve in hot position (FIGURE 12.3).
