Symmons Elm Trim Series Installation & Operation Instructions
Hide thumbs
Also See for Elm Trim Series:
- Operation & maintenance manual (7 pages) ,
- Operation & maintenance manual (22 pages)
Advertisement
Quick Links
Elm Trim Series

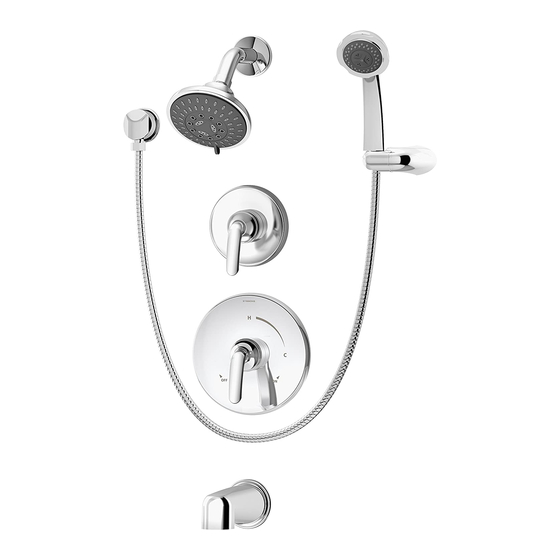

Elm Trim Series with TA-10 Flow Control Spindle & T-12A Cap Assembly
Installation & Operation Instructions
Model Numbers
TRIM ONLY
S-5500-TRM
Shower Valve Trim
S-5501-TRM
Shower Trim
S-5502-TRM
Tub/Shower Trim
S-5504-TRM
Tub/Hand Shower Trim
S5508TRM
Shower/Hand Shower Trim
Compliance
•
ASME A112.18.1/CSA B125.1
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Go to www.symmons.com/register to register your
Symmons product.
Elm
®
TRIM, TA-10, T-12A
S5500TRMTC
Shower Valve Trim
S5501TRMTC
Shower Trim
S5502TRMTC
Tub/Shower Trim
S5504TRMTC
Tub/Hand Shower Trim
S5508TRMTC
Shower/Hand Shower Trim
T-12A
TA-10
S-5500-TRM
S-5501-TRM
S5500TRMTC
S5501TRMTC
S-5504-TRM
S5508TRM
S5504TRMTC
S5508TRMTC
S-5502-TRM
S5502TRMTC
Advertisement
Related Manuals for Symmons Elm Trim Series
Summary of Contents for Symmons Elm Trim Series

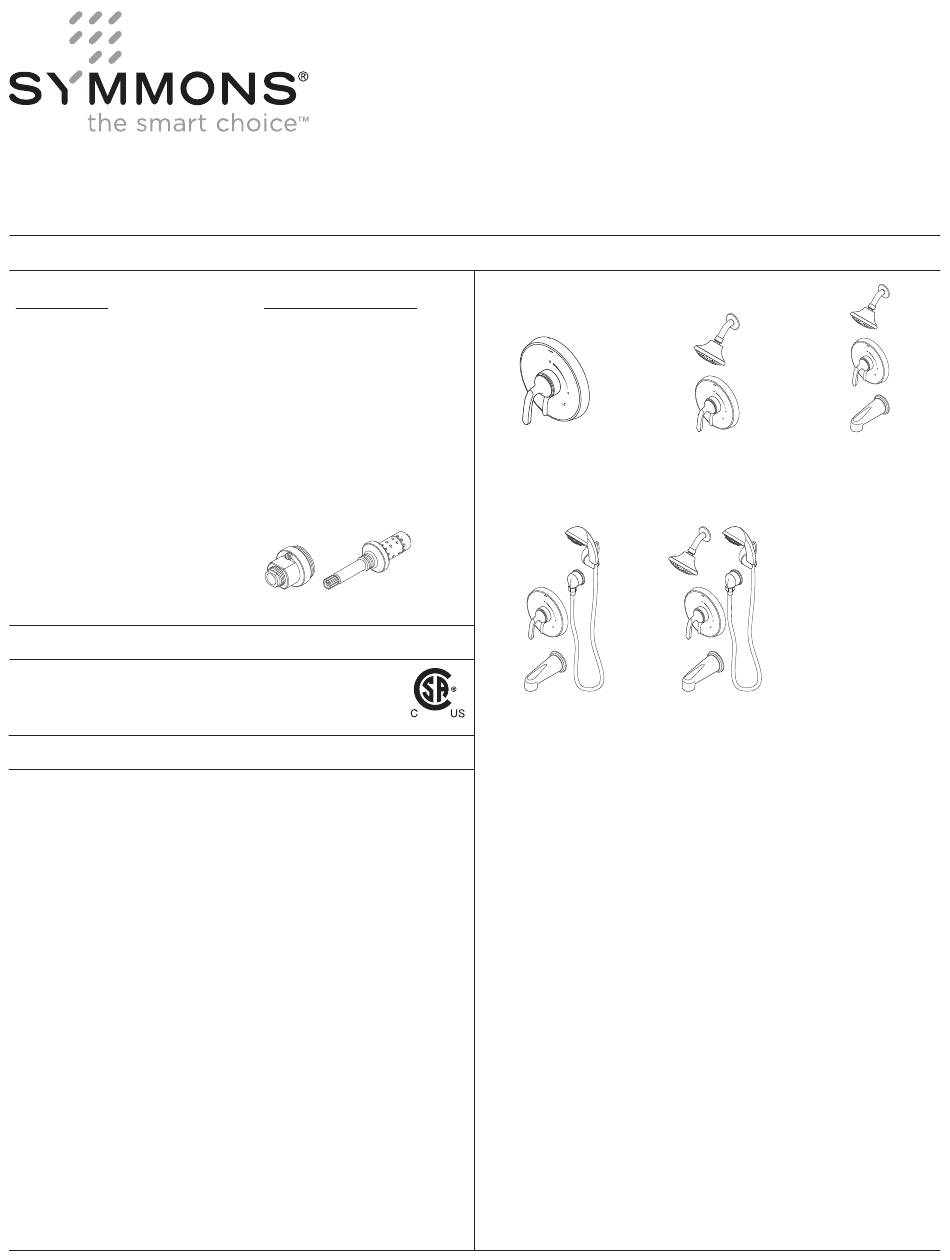

- Page 1 ® Elm Trim Series Elm Trim Series with TA-10 Flow Control Spindle & T-12A Cap Assembly Installation & Operation Instructions Model Numbers TRIM ONLY TRIM, TA-10, T-12A S-5500-TRM S5500TRMTC Shower Valve Trim Shower Valve Trim S-5501-TRM S5501TRMTC Shower Trim Shower Trim...
-
Page 2: Recommended Tools
1. Recommended Tools FIGURE 1 Adjustable Wrench Allen Wrench (3mm) Drill Phillips Screwdriver Safety Glasses Thread Seal Tape 2. Dimensions Measurements FIGURE 2 Ø 2-1/4", 57 mm 8", 203 mm 1/2" NPT thread must protrude 1/2" (13 mm) from finished wall 6", 152 mm Ref. - Page 3 3. Parts Breakdown (Model Numbers Ending in TRMTC) Replacement Parts LIMIT STOP Item Description Part Number SCREW Cap Assy. T-12A Flow Control Spindle TA-10 IMPORTANT: Model numbers ending in TRMTC coordinate with Temptrol pressure balancing valves ordered with Test Cap. The Test Cap is used to allow pressurization of system.
-
Page 4: Parts Breakdown
7. Parts Breakdown Replacement Parts FIGURE 7 Item Description Part Number Showerhead 552SH Shower Arm 300S Flange Shower Handle RTS-006 Set Screw Dome Cover T-19 Shower Escutcheon Screws T-631A-NS-K002 Mounting Plate Diverter/Volume RTS-008 Control Handle Tub Spout 552TS Escutcheon Hand Shower 552W Wall Cradle Screws... - Page 5 8. Installation - Shower Valve Trim 1) Secure large mounting plate to Temptrol FIGURE 8.1 FIGURE 8.2 pressure balancing valve using mounting screws (FIGURE 8.1). 2) Place diverter/volume control handle into slot in shower escutcheon (FIGURE 8.2). 3) Secure large shower escutcheon to mounting plate. Guide handle into control port on valve body.
- Page 6 10. Installation - Slide Bar Assembly 1) Place mounting plate in position. Mark and drill 3/16" FIGURE 10.1 FIGURE 10.2 holes for tile anchors, 5/16" holes for drywall anchors. Install anchors (FIGURE 10.1). Note: For dry wall 1/2" thick or less, insert anchor tool into drywall anchor to secure behind wall prior to installing wall cradle.
- Page 7 FIGURE 12.1 clockwise to divert to tub spout or other Symmons accessory. Turn diverter control handle counterclockwise to divert to shower or other Symmons accessory. TUB/ACCESSORY SHOWER/ACCESSORY 13. Operation (Volume Control) Turn volume control handle FIGURE 13.1 clockwise to increase volume.
-
Page 8: 14. Troubleshooting Chart
For more information, go to www.P65Warnings.ca.gov. ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2020 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3412 REV 0 030220...
