S202PP, S202G
Lavatory Faucet
Operation & Maintenance Manual
Model Numbers
☐

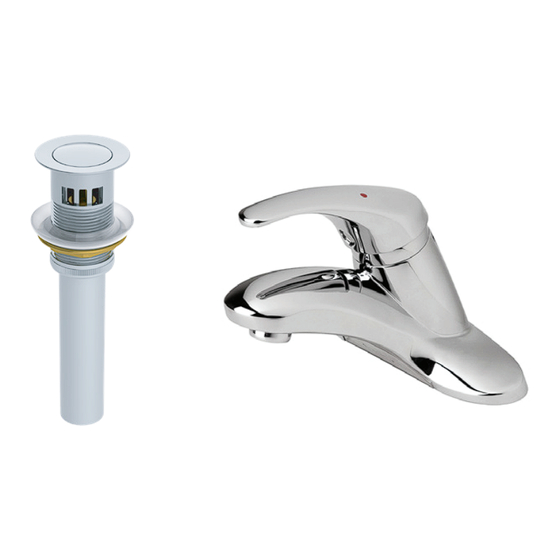

S202PP
Lavatory Faucet with Push Pop
Drain Assembly
☐
S202G
Lavatory Faucet With all metal grid
drain
Compliance
- ASME A112.18.1/CSA B125.1
- NSF/ANSI/CAN 61: Q<1, NSF/ANSI 372
- WaterSense: 1.0 gpm (3.8 L/min)
WARNING: This product can expose you to chemicals including
lead, which is known to the state of California to cause cancer,
birth defects, or other reproductive harm. For more information,
go to www.P65Warnings.ca.gov.
W
ADA compliant lever handles
Symmetrix®
Feature Highlights
•
Singlelever faucet with red and blue indicators on
handle
•
Ceramic control components and handle limit stops
•
3/8" Braided flexible supply lines
•
4 inch (102mm) centers
•
standard 1.0 gpm (3.8 L/min) aerator
•
Metal contruction, polished chrome finish
Warranty
Limited Lifetime - to the original end
purchaser in consumer/residential
Certi ed by
10 Years - for commercial/industrial
CSA Group
installations. Refer to
www.symmons.com/warranty for
complete warranty information.
handle options
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Symmons Symmetrix S202PP
Summary of Contents for Symmons Symmetrix S202PP
- Page 1 CSA Group installations. Refer to WARNING: This product can expose you to chemicals including www.symmons.com/warranty for lead, which is known to the state of California to cause cancer, complete warranty information. birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
- Page 2 Symmetrix® S202PP, S202G Dimensions S202 20” Braided supply lines with 3/8” compression fittings Note: Dimensions subject to change without notice. S202W 6-7/8” 175mm 4-7/8” 122mm Note: Dimensions subject to change without notice. Note: Dimensions subject to change without notice.
- Page 3 Parts Assembly Symmetrix Lavatory Faucet, S202 Series KN-2 Compression ring KN-3BRB LN-34 KN-3RB* Solid handle KN-3RB KN-3BRB* Loop handle L-22 KN-4 Cartridge LN-135 KN-23 Anchor bar (2) KN-157 KN-26 Mounting spacer (2) KN-157 Plug button LN-8 T-33 LN-8* Valve cap LN-171 KN-2 LN-11*...
- Page 4 5 above. ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2023 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3829 REV 0 101923...
