Unity Trim Series

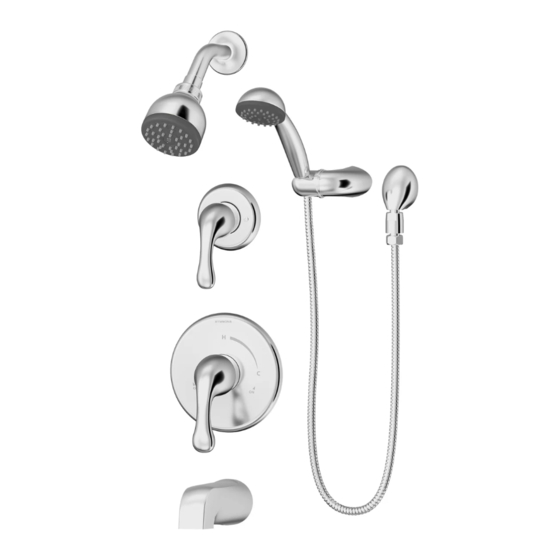

Unity Trim Series with TA-10 Flow Control Spindle & T-12A Cap Assembly
Installation & Operation Instructions
Model Numbers
TRIM ONLY
S-6600-TRM
Shower Valve Trim
S-6601-TRM
Shower Trim
S-6602-TRM
Tub/Shower Trim
S-6603-TRM
Hand Shower Trim
S-6604-TRM
Tub/Hand Shower Trim
S6608TRM
Shower/Hand Shower Trim
Compliance
•
ASME A112.18.1/CSA B125.1
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Go to www.symmons.com/register to register your
Symmons product.
Unity
TRIM, TA-10, T-12A
S6600TRMTC
Shower Valve Trim
S6601TRMTC
Shower Trim
S6602TRMTC
Tub/Shower Trim
S6603TRMTC
Hand Shower Trim
S6604TRMTC
Tub/Hand Shower Trim
S6608TRMTC
Shower/Hand Shower Trim
T-12A
TA-10
®
S-6600-TRM
S6600TRMTC
S-6603-TRM
S6603TRMTC
S-6601-TRM
S-6602-TRM
S6601TRMTC
S6602TRMTC
S-6604-TRM
S6608TRM
S6604TRMTC
S6608TRMTC
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Symmons Unity Trim Series
Summary of Contents for Symmons Unity Trim Series

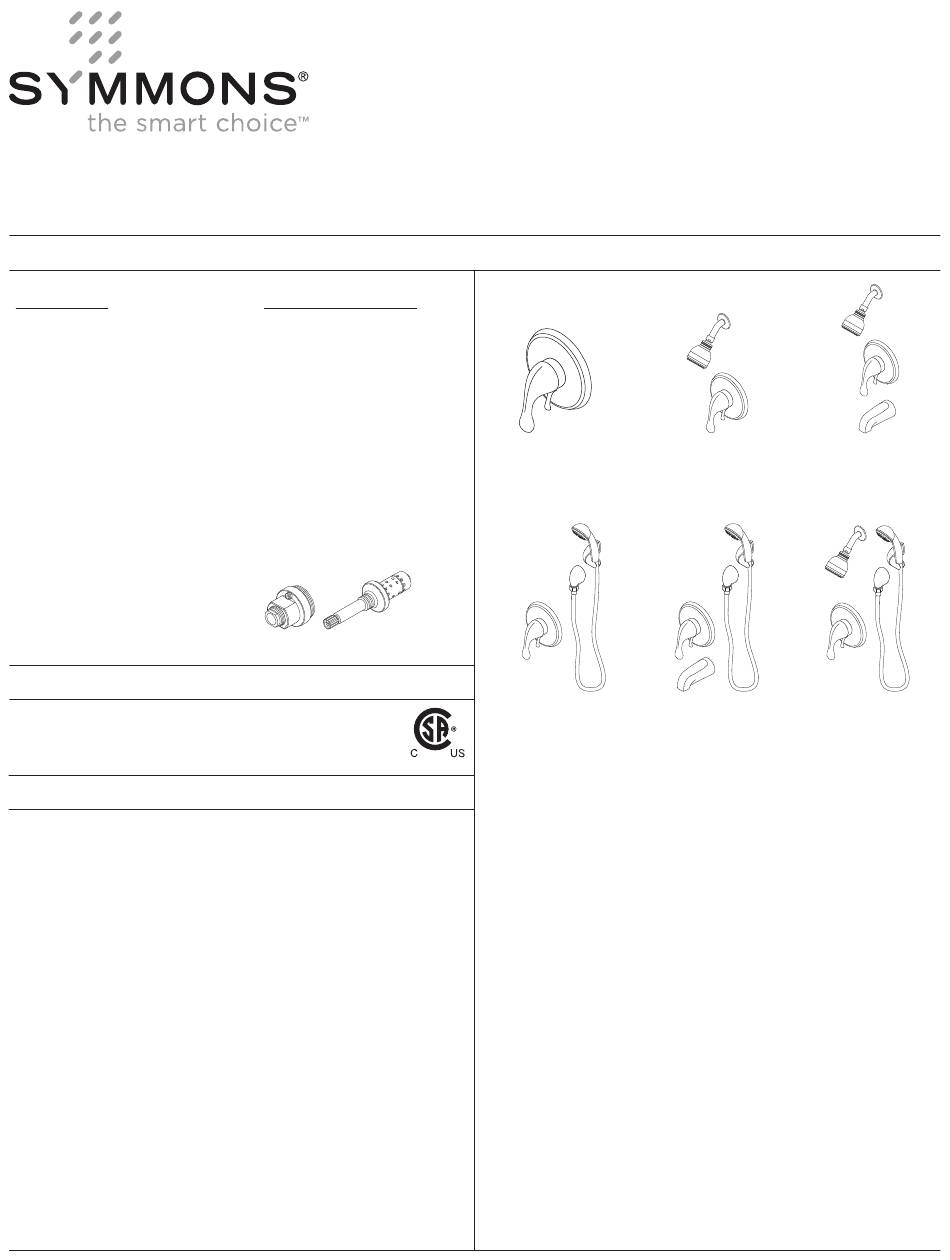

- Page 1 Unity ® Unity Trim Series Unity Trim Series with TA-10 Flow Control Spindle & T-12A Cap Assembly Installation & Operation Instructions Model Numbers TRIM ONLY TRIM, TA-10, T-12A S-6600-TRM S6600TRMTC Shower Valve Trim Shower Valve Trim S-6601-TRM S6601TRMTC Shower Trim...
-
Page 2: Recommended Tools
1. Recommended Tools FIGURE 1 Adjustable Wrench Allen Wrench (3mm) Drill Phillips Screwdriver Safety Glasses Thread Seal Tape 2. Dimensions FIGURE 2 Measurements 6-3/8", 162 mm Male 1/2" NPT fitting must be recessed 1/4" (6 mm) from finished wall 3-1/2", 89 mm Ref. - Page 3 3. Parts Breakdown (Model Numbers Ending in TRMTC) Replacement Parts LIMIT STOP Item Description Part Number SCREW Cap Assy. T-12A Flow Control Spindle TA-10 IMPORTANT: Model numbers ending in TRMTC coordinate with Temptrol pressure balancing valves ordered with Test Cap. The Test Cap is used to allow pressurization of system.
-
Page 4: Parts Breakdown
7. Parts Breakdown FIGURE 7 Replacement Parts Item Description Part Number Showerhead 4-141 Shower Arm 300S Flange Handle Assy. RTS-064 Dome Cover T-19 Shower Escutcheon Screws S-6600-ESC Mounting Plate Diverter/Volume RTS-066 Control Handle Tub Spout Wall Cradle Screws EF-106 Mounting Plate Hand Shower EF-100 Wall Elbow... - Page 5 8. Installation - Shower Valve Trim 1) Secure large mounting plate to Temptrol FIGURE 8.1 FIGURE 8.2 pressure balancing valve using mounting screws (FIGURE 8.1). 2) Place diverter/volume control handle into slot in shower escutcheon (FIGURE 8.2). 3) Secure large shower escutcheon to mounting plate. Guide handle into control port on valve body.
- Page 6 10. Installation - Slide Bar Assembly 1) Place mounting plate in position. Mark and drill 3/16" FIGURE 10.1 FIGURE 10.2 holes for tile anchors, 5/16" holes for drywall anchors. Install anchors (FIGURE 10.1). Note: For dry wall 1/2" thick or less, insert anchor tool into drywall anchor to secure behind wall prior to installing wall cradle.
- Page 7 FIGURE 12.1 clockwise to divert to tub spout or other Symmons accessory. Turn diverter control handle counterclockwise to divert to shower or other Symmons accessory. TUB/ACCESSORY SHOWER/ACCESSORY 13. Operation (Volume Control) Turn volume control handle FIGURE 13.1 clockwise to increase volume.
-
Page 8: 14. Troubleshooting Chart
For more information, go to www.P65Warnings.ca.gov. ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2020 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3417 REV 0 030220...
