Symmons Unity Trim Series Installation & Operation Instructions

Symmons Unity Trim Series Installation & Operation Instructions

Flow control spindle & cap assembly

Advertisement

Quick Links

Unity Trim Series
Unity Trim Series with TA-10 Flow Control Spindle & T-12A Cap Assembly
Installation & Operation Instructions
Model Numbers
TRIM ONLY
6600-TRM
Shower Valve Trim
6601-TRM
Shower Trim
6602-TRM
Tub/Shower Trim
6603-TRM
Hand Shower Trim
6604-TRM
Tub/Hand Shower Trim
6605-TRM
Shower/Hand Shower Trim
6606-TRM

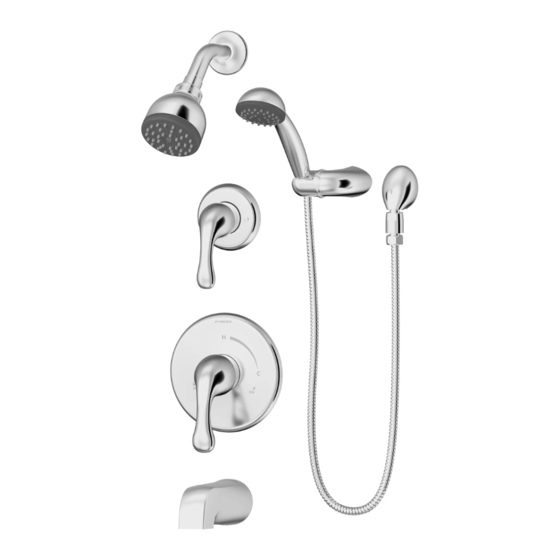

Tub/Shower/Hand Shower Trim
Compliance
ASME A112.18.1/CSA B125.1
Warranty
Limited Lifetime - to the original end purchaser in consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete warranty information.
Go to www.symmons.com/register to register your Symmons product.
Unity
TRIM, TA-10, T-12A
6600TRMTC
Shower Valve Trim
6601TRMTC
Shower Trim
6602TRMTC
Tub/Shower Trim
6603TRMTC
Hand Shower Trim
6604TRMTC
Tub/Hand Shower Trim
6605TRMTC
Shower/Hand Shower Trim
6606TRMTC
Tub/Shower/Hand Shower Trim
T-12A
TA-10
®
6600-TRM
6600TRMTC
6603-TRM
6603TRMTC
6606-TRM
6606TRMTC
6601-TRM
6602-TRM
6601TRMTC
6602TRMTC
6604-TRM
6605-TRM
6604TRMTC
6605TRMTC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Unity Trim Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Symmons Unity Trim Series

  • Page 1 Unity ® Unity Trim Series Unity Trim Series with TA-10 Flow Control Spindle & T-12A Cap Assembly Installation & Operation Instructions Model Numbers TRIM ONLY TRIM, TA-10, T-12A 6600-TRM 6600TRMTC Shower Valve Trim Shower Valve Trim 6601-TRM 6601TRMTC Shower Trim...
  • Page 2 1. Recommended Tools FIGURE 1 Adjustable Wrench Allen Wrench (3mm) Drill Phillips Screwdriver Safety Glasses Thread Seal Tape 2. Dimensions FIGURE 2 Measurements 6-3/8", 162 mm Diverter Valve Hole Size Min. Ø 3", 76 mm Max. Ø 3-1/4", 83 mm 3-1/2", 89 mm Male 1/2"...
  • Page 3 3. Parts Breakdown (Model Numbers Ending in TRMTC) Replacement Parts LIMIT STOP Item Description Part Number SCREW Cap Assy. T-12A Flow Control Spindle TA-10 IMPORTANT: Model numbers ending in TRMTC coordinate with Temptrol pressure balancing valves ordered with Test Cap. The Test Cap is used to allow pressurization of system.
  • Page 4 7. Parts Breakdown FIGURE 7 Replacement Parts Item Description Part Number Showerhead 4-141 Shower Arm 300S Flange Handle Assy. RTS-064 Dome Cover T-19 Diverter Escutcheon 96-66-DIV-ESC Screws Shower Escutcheon Screws 6600-ESC Mounting Plate Tub Spout Diverter Tub Spout Wall Cradle Screws EF-106 Mounting Plate...
  • Page 5 4) Install handle to shower valve. Secure with set screw (FIGURE 8.4). FIGURE 8.3 FIGURE 8.4 9. Installation - Diverter Valve Trim 1) Secure small diverter escutcheon to Symmons diverter FIGURE 9.1 FIGURE 9.2 valve using mounting screws (FIGURE 9.1). 2) Install dome cover by turning clockwise (FIGURE 9.2).
  • Page 6 11. Installation - Slide Bar Assembly 1) Place mounting plate in position. Mark and drill 3/16" FIGURE 11.1 FIGURE 11.2 holes for tile anchors, 5/16" holes for drywall anchors. Install anchors (FIGURE 11.1). Note: For dry wall 1/2" thick or less, insert anchor tool into drywall anchor to secure behind wall prior to installing wall cradle.
  • Page 7 12. Operation (Temperature Control) 1) Turn shower handle counter-clockwise FIGURE 12.1 FIGURE 12.2 FIGURE 12.3 approximately 1/4 turn to put valve in cold position (FIGURE 12.1). 2) Turn shower handle counter- clockwise approximately 1/2 turn to put valve in warm position (FIGURE 12.2). 3) Turn shower handle counter- clockwise approximately 3/4 turn to put valve in hot position (FIGURE 12.3).
  • Page 8 For more information, go to www.P65Warnings.ca.gov. ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2019 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3287 REV A 062819...
