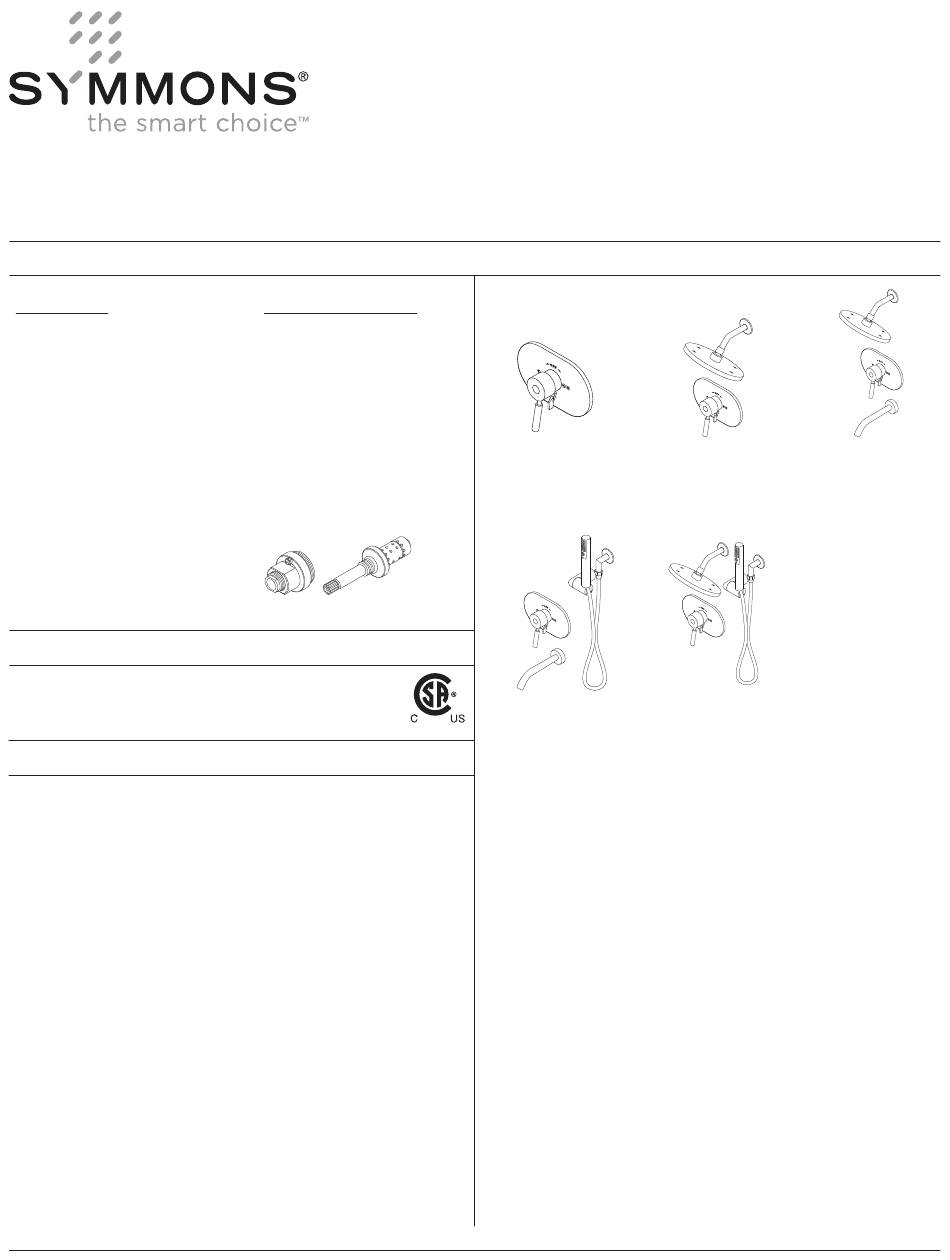

Sereno Trim Series
Sereno Trim Series with TA-10 Flow Control Spindle & T-12A Cap Assembly
Installation & Operation Instructions
Model Numbers
TRIM ONLY
S-4300-TRM
Shower Valve Trim
S-4301-TRM
Shower Trim
S-4302-TRM

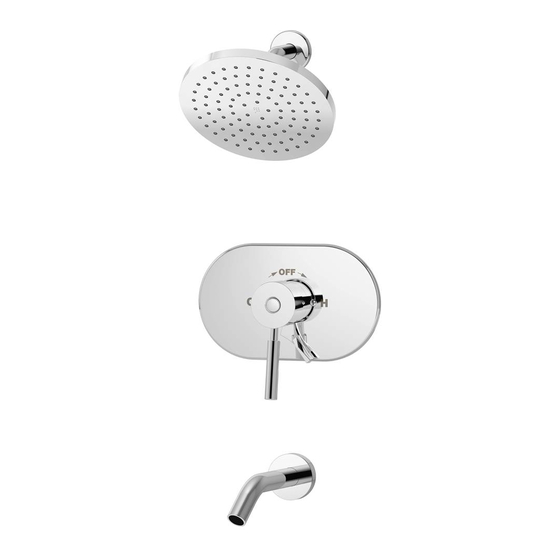

Tub/Shower Trim
S-4304-TRM
Tub/Hand Shower Trim
S4308TRM
Shower/Hand Shower Trim
Compliance
•
ASME A112.18.1/CSA B125.1
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Go to www.symmons.com/register to register your
Symmons product.
Sereno
TRIM, TA-10, T-12A
S4300TRMTC
Shower Valve Trim
S4301TRMTC
Shower Trim
S4302TRMTC
Tub/Shower Trim
S4304TRMTC
Tub/Hand Shower Trim
S4308TRMTC
Shower/Hand Shower Trim
T-12A
TA-10
®
S-4300-TRM
S4300TRMTC
S-4304-TRM
S4304TRMTC
S-4301-TRM
S-4302-TRM
S4301TRMTC
S4302TRMTC
S4308TRM
S4308TRMTC
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Symmons Sereno Trim TA-10 T-12A S4300TRMTC
Summary of Contents for Symmons Sereno Trim TA-10 T-12A S4300TRMTC
- Page 1 ASME A112.18.1/CSA B125.1 S-4304-TRM S4308TRM S4304TRMTC S4308TRMTC Warranty Limited Lifetime - to the original end purchaser in consumer/residential installations. 5 Years - for industrial/commercial installations. Refer to www.symmons.com/warranty for complete warranty information. Go to www.symmons.com/register to register your Symmons product.
-
Page 2: Recommended Tools
1. Recommended Tools FIGURE 1 Adjustable Wrench Allen Wrench (3mm) Drill Phillips Screwdriver Safety Glasses Thread Seal Tape 2. Dimensions Measurements FIGURE 2 Ø 2-1/4", 57 mm Ø 2-1/4", 57 mm 6", 152 mm 9-1/4", 235 mm Female 1/2" IPS thread must be recessed 7/8"... - Page 3 3. Parts Breakdown (Model Numbers Ending in TRMTC) Replacement Parts LIMIT STOP Item Description Part Number SCREW Cap Assy. T-12A Flow Control Spindle TA-10 IMPORTANT: Model numbers ending in TRMTC coordinate with Temptrol pressure balancing valves ordered with Test Cap. The Test Cap is used to allow pressurization of system.
-
Page 4: Parts Breakdown
7. Parts Breakdown FIGURE 7 Replacement Parts Item Description Part Number Showerhead 432SH Shower Arm Flange Plug Button Screw T-251 Star Washer Handle Lock Nut T-19/20-PL Dome Cover Shower Escutcheon T-249A Screws Diverter/Volume T-30M Control Handle Tub Spout 432TS Hand Shower 432W Cradle Mount Cradle Mount Screws... - Page 5 8. Installation - Shower Valve Trim 1) Place diverter/volume control handle into slot in shower FIGURE 8.1 FIGURE 8.2 escutcheon (FIGURE 8.1). 2) Secure escutcheon to Temptrol pressure balancing valve using mounting screws. Guide handle into control port on valve body (FIGURE 8.2). 3) Install dome cover and lock nut to valve by turning clockwise (FIGURE 8.3).
- Page 6 10. Installation - Slide Bar Assembly 1) Press tab to remove mounting plate from cradle mount FIGURE 10.1 FIGURE 10.2 cover (FIGURE 10.1). Note: Mounting plate center tabs must be horizontal for removal. 2) Place mounting plate in position, mark and drill 3/16" holes into drywall.
- Page 7 FIGURE 12.1 clockwise to divert to tub spout or other Symmons accessory. Turn diverter control handle counterclockwise to divert to shower or other Symmons accessory. TUB/ACCESSORY SHOWER/ACCESSORY 13. Operation (Volume Control) Turn volume control handle FIGURE 13.1 clockwise to increase volume.
-
Page 8: 14. Troubleshooting Chart
For more information, go to www.P65Warnings.ca.gov. ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2020 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3416 REV 0 030220...
