Oxford Trim Series

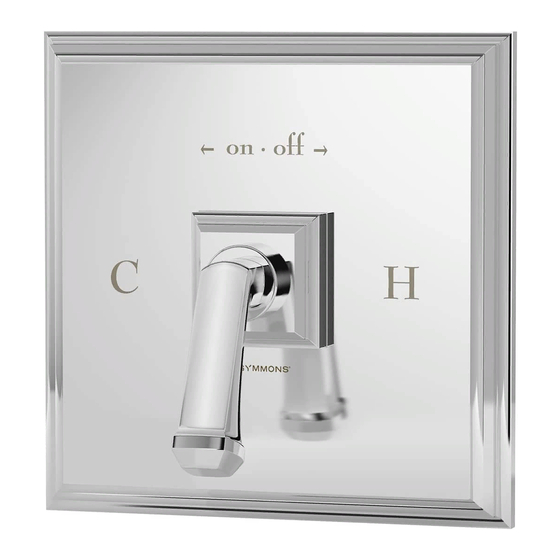

Oxford Trim Series with TA-10 Flow Control Spindle & T-12A Cap Assembly
Installation & Operation Instructions
Model Numbers
TRIM ONLY
S-4200-TRM
Shower Valve Trim
S-4201-TRM
Shower Trim
S-4202-TRM
Tub/Shower Trim
S-4204-TRM
Tub/Hand Shower Trim
S4208TRM
Shower/Hand Shower Trim
Compliance
ASME A112.18.1/CSA B125.1
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Go to www.symmons.com/register to register your
Symmons product.
Oxford
TRIM, TA-10, T-12A
S4200TRMTC
Shower Valve Trim
S4201TRMTC
Shower Trim
S4202TRMTC
Tub/Shower Trim
S4204TRMTC
Tub/Hand Shower Trim
S4208TRMTC
Shower/Hand Shower Trim
T-12A
TA-10
®
S-4200-TRM
S4200TRMTC
S-4204-TRM
S4204TRMTC
S-4201-TRM
S-4202-TRM
S4201TRMTC
S4202TRMTC
S4208TRM
S4208TRMTC

Advertisement

loading
Need help?

Need help?

Do you have a question about the Oxford Trim Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Symmons Oxford Trim Series

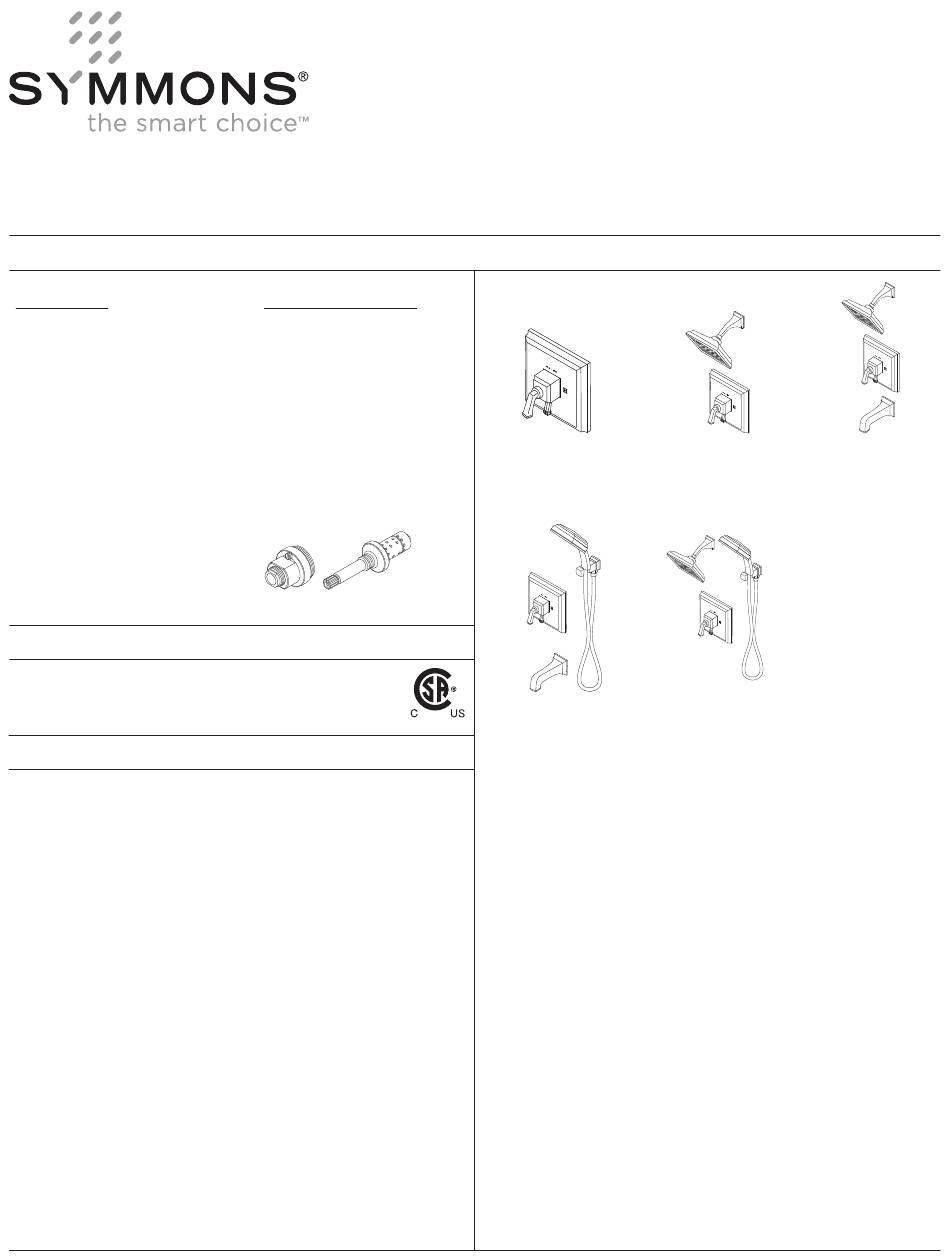

  • Page 1 Oxford ® Oxford Trim Series Oxford Trim Series with TA-10 Flow Control Spindle & T-12A Cap Assembly Installation & Operation Instructions Model Numbers TRIM ONLY TRIM, TA-10, T-12A S-4200-TRM S4200TRMTC Shower Valve Trim Shower Valve Trim S-4201-TRM S4201TRMTC Shower Trim...
  • Page 2: Recommended Tools

    1. Recommended Tools FIGURE 1 Adjustable Wrench Allen Wrench (3mm) Drill Phillips Screwdriver Safety Glasses Thread Seal Tape 2. Dimensions Measurements FIGURE 2 6-1/2", 165 mm 9-5/8", 245 mm 3-7/8", 98 mm Male 1/2" IPS thread must protrude 1/2" from finished wall 6", 152 mm right or left 77", 1956...
  • Page 3 3. Parts Breakdown (Model Numbers Ending in TRMTC) Replacement Parts LIMIT STOP Item Description Part Number SCREW Cap Assy. T-12A Flow Control Spindle TA-10 IMPORTANT: Model numbers ending in TRMTC coordinate with Temptrol pressure balancing valves ordered with Test Cap. The Test Cap is used to allow pressurization of system.
  • Page 4: Parts Breakdown

    7. Parts Breakdown Replacement Parts FIGURE 7 Item Description Part Number Showerhead 422SH Shower Arm 422SA Shower Handle T-549 Flange Lock Nut T-543 Dome Cover Shower Escutcheon Screws T-542-NS-K001 Mounting Plate Diverter/Volume T-589 Control Handle Tub Spout 422TS Hand Shower 422W Wall Cradle T-547...
  • Page 5 8. Installation - Shower Valve Trim 1) Secure large mounting plate to Temptrol FIGURE 8.1 FIGURE 8.2 pressure balancing valve using mounting screws (FIGURE 8.1). 2) Place diverter/volume control handle into slot in shower escutcheon (FIGURE 8.2). 3) Secure large shower escutcheon to mounting plate. Guide handle into control port on valve body.
  • Page 6 10. Installation - Slide Bar Assembly 1) Install wall cradle to stub out pipe. Tighten set screw to FIGURE 10.1 FIGURE 10.2 secure (FIGURE 10.1). 2) Attach small end of hand shower hose to wall cradle. Turn clockwise to tighten (FIGURE 10.2). 3) Attach large end of hand shower hose to hand shower wand.
  • Page 7 FIGURE 12.1 clockwise to divert to tub spout or other Symmons accessory. Turn diverter control handle counterclockwise to divert to shower or other Symmons accessory. TUB/ACCESSORY SHOWER/ACCESSORY 13. Operation (Volume Control) Turn volume control handle FIGURE 13.1 clockwise to increase volume.
  • Page 8: 14. Troubleshooting Chart

    For more information, go to www.P65Warnings.ca.gov. ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2020 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3415 REV 0 030220...
