SLC5512PP
Lavatory Faucet
Operation & Maintenance Manual
Model Numbers
SLC5512PP

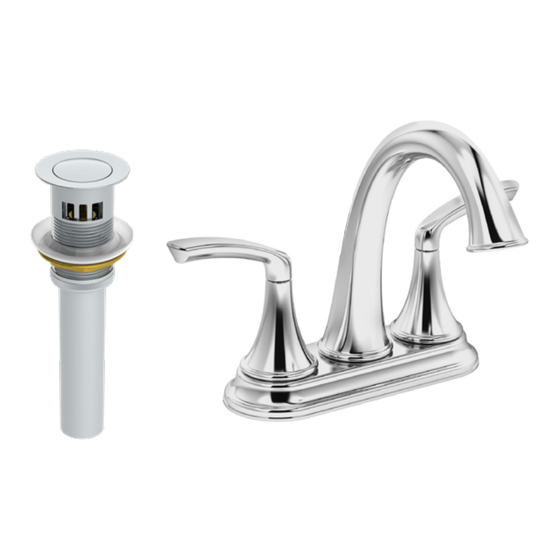

Centerset Lavatory Faucet with A Push Pop Drain
Assembly
Compliance
-ASME A112.18.1/CSA B125.1
-NSF/ANSI/CAN 61: Q<1, NSF/ANSI 372
-WaterSense 1.0 gpm
WARNING: This product can expose you to chemicals
including lead, which is known to the state of California to
cause cancer, birth defects, or other reproductive harm.
For more information, go to www.P65Warnings.ca.gov.
Dimensions
Note: Dimensions subject to change without notice.
Elm®
Feature Highlights
•
4 inch centerset lavatory faucet with lever handles
•
Commercial grade 1/4 turn ceramic disc valve
cartridge for drip free performance
•
1/2 inch IPS shanks
•
Standard flow rate is 1.0 gpm (3.8 L/min)
•
Optional lower flow rate restrictor available
•
Polished chrome finish (standard)
Warranty
Limited Lifetime - to the original end
purchaser in consumer/residential
10 Years - for commercial/industrial
installations. Refer to
Certi ed by
CSA Group
www.symmons.com/warranty for
complete warranty information.
Advertisement
Table of Contents
Related Manuals for Symmons Elm SLC5512PP
Summary of Contents for Symmons Elm SLC5512PP
- Page 1 10 Years - for commercial/industrial installations. Refer to Certi ed by CSA Group www.symmons.com/warranty for complete warranty information. WARNING: This product can expose you to chemicals including lead, which is known to the state of California to cause cancer, birth defects, or other reproductive harm.
- Page 2 Parts Breakdown Replacement Parts Item Description Part Number Handle Kit RL-021* KN-114 Cartridge H Temperature Cartridge KN-113 Cartridge C Aerator and Wrench(2.2) LN-333-KIT Aerator and Wrench(1.5) FLR-102-1.5-KIT Aerator and Wrench(0.5) FLR-102-0.5 Mounting Hardware RL-020 Push Pop Drain Assem- RL324* *Note: Append STN to part number for Satin Nickel finish.
- Page 3 Installation If replacing an older faucet ensure water supply is turned 3) Push Pop Install: Insert drain OFF before removing, then body (L) into drain opening. From turn faucet control valve ON below, Tighten locking nut (O) to relieve water pressure. with gasket (M) and washer (N) DO NOT use pipe dope to flange.
- Page 4 ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2023 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3720 REV 0 021723...
