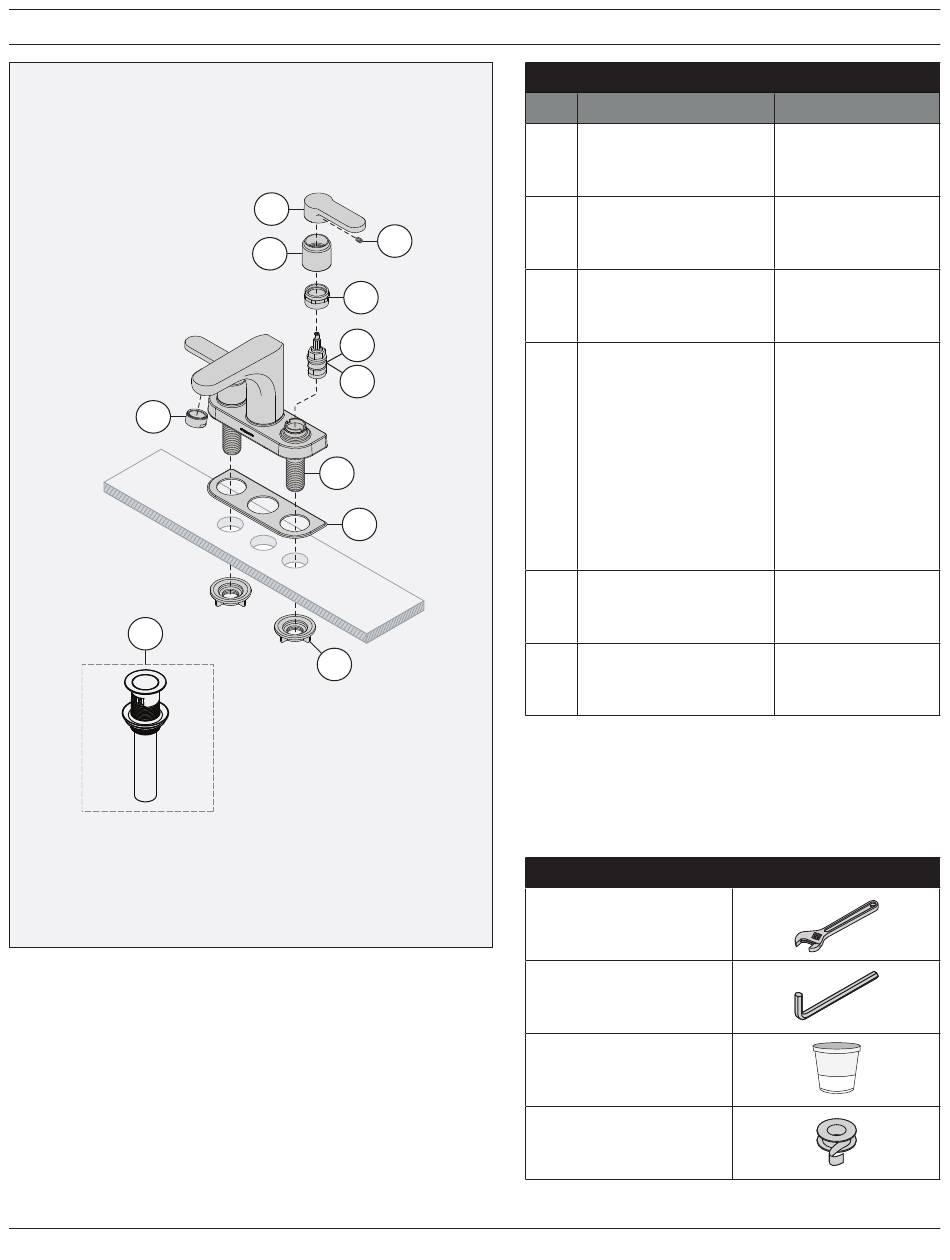

Parts Breakdown

H
L
A
B
C
D
F
G
I
J
K
Replacement Parts
Item Description
A Handle
B Set Screw
F Hot Cartridge
G Cold Cartridge
Aerator Kit (2.2)
Aerator Kit (1.5)
Aerator Kit (1.0)
Laminar Flow Kit (2.2)
Laminar Flow Kit (1.5)
H Laminar Flow Kit (1.0)
Laminar Flow Kit (0.5)
Vandal Proof Kit (2.2)
Vandal Proof Kit (1.5)
Vandal Proof Kit (1.0)
Vandal Proof Kit (0.5)
K Mounting Hardware Kit
Push Pop Drain Assem-
L
*Note: Append STN to part number for Satin Nickel
finish.
Adjustable Wrench
Allen Wrench
3/32"
Plumber Putty
Plumber Tape
2
Part Number
RL-287*
RL-075
RL-076
LN-15*
FLR-110-1.5*
FLR-110-1.0*
RL-019-2.2*
RL-019-1.5*
RL-019-1.0*
RL-019*
RL-315-2.2*
RL-315-1.5*
RL-315-1.0*
RL-315-0.5*
RL-285
RL324*
bly

Tools Required

PLUMBER
PUTTY
