Recommended Tools - Symmons Unity Trim Series Installation & Operation Instructions

1. Recommended Tools

FIGURE 1
Adjustable Wrench

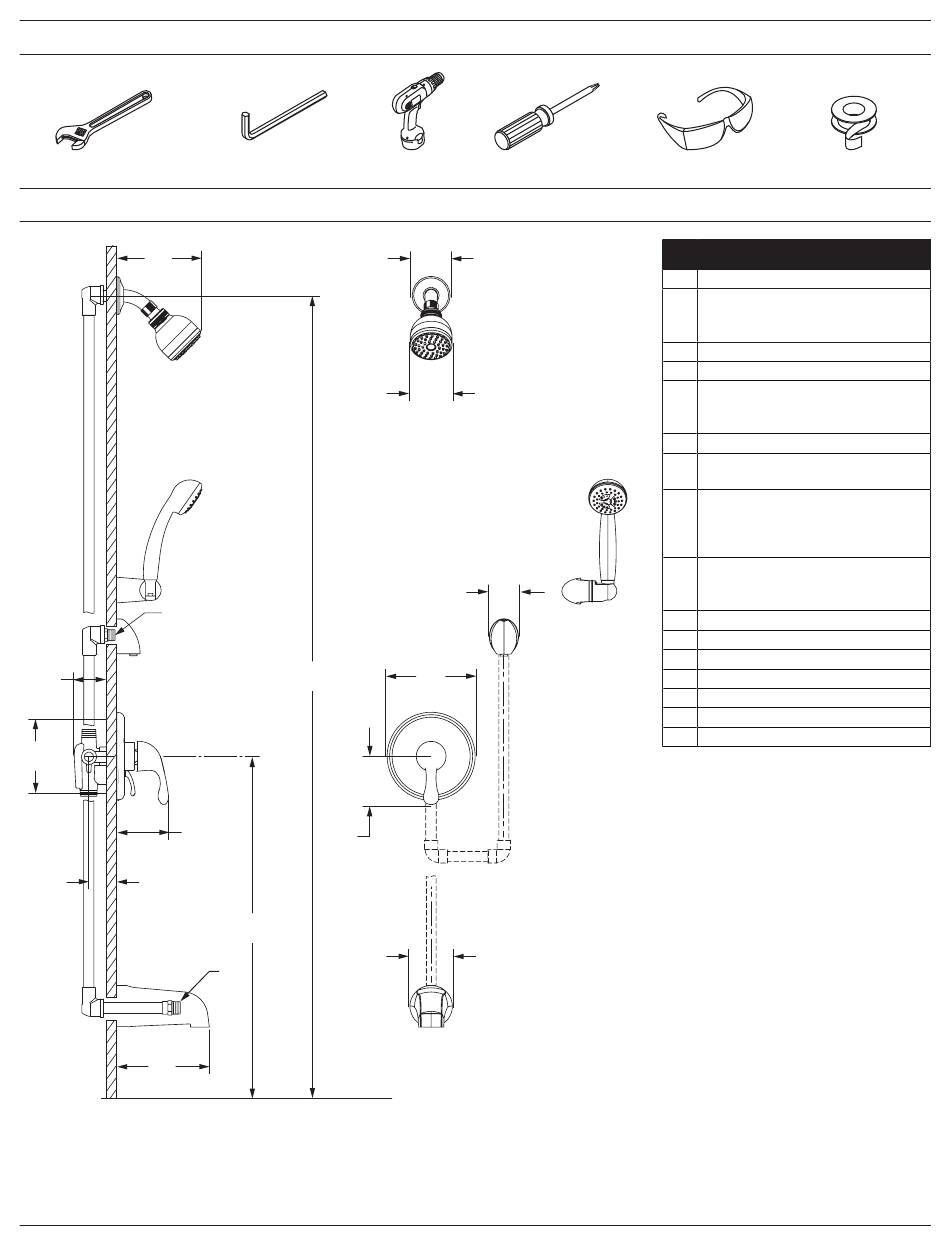

2. Dimensions
FIGURE 2 A A
B B
C C
E E
F F
G G
J J
Notes:
1) Valve body and piping not included and shown as reference only.
2) Plaster shield (p/n T-176) for dry wall, plaster or other type walls 1/2" or greater.
3) All dimensions measured from nominal rough-in (see G as reference).
4) Dimensions subject to change without notice.
Allen Wrench (3mm)
K K
L L
D D
O O
H H
P P
I I
FLOOR FLOOR
Drill Phillips Screwdriver
M M
N N
2
Safety Glasses Thread Seal Tape
Measurements
A 6-3/8", 162 mm
Male 1/2" NPT fitting must
B be recessed 1/4" (6 mm)
from finished wall
C 3-1/2", 89 mm
D Ref. 77", 1956 mm
Shower Valve Hole Size
E Min. Ø 3", 76 mm
Max. Ø 4", 102 mm
F 3-3/4", 95 mm
Rough-in
G
2-3/8" ± 1/2", 60 mm ± 13 mm
Trim with tub spout:
Ref. 32", 813 mm
H
Trim without tub spout:
Ref. 42", 1067 mm
Male 1/2" NPT fitting must
I protrude 4" from
finished wall
J 5-1/2", 140 mm
K Ø 2-1/2", 64 mm
L Ø 2-3/4", 70 mm
M 2-1/8", 54 mm
N Ø 6-3/8", 162 mm
O 3-1/2", 89 mm
P Ø 2-1/2", 64 mm
