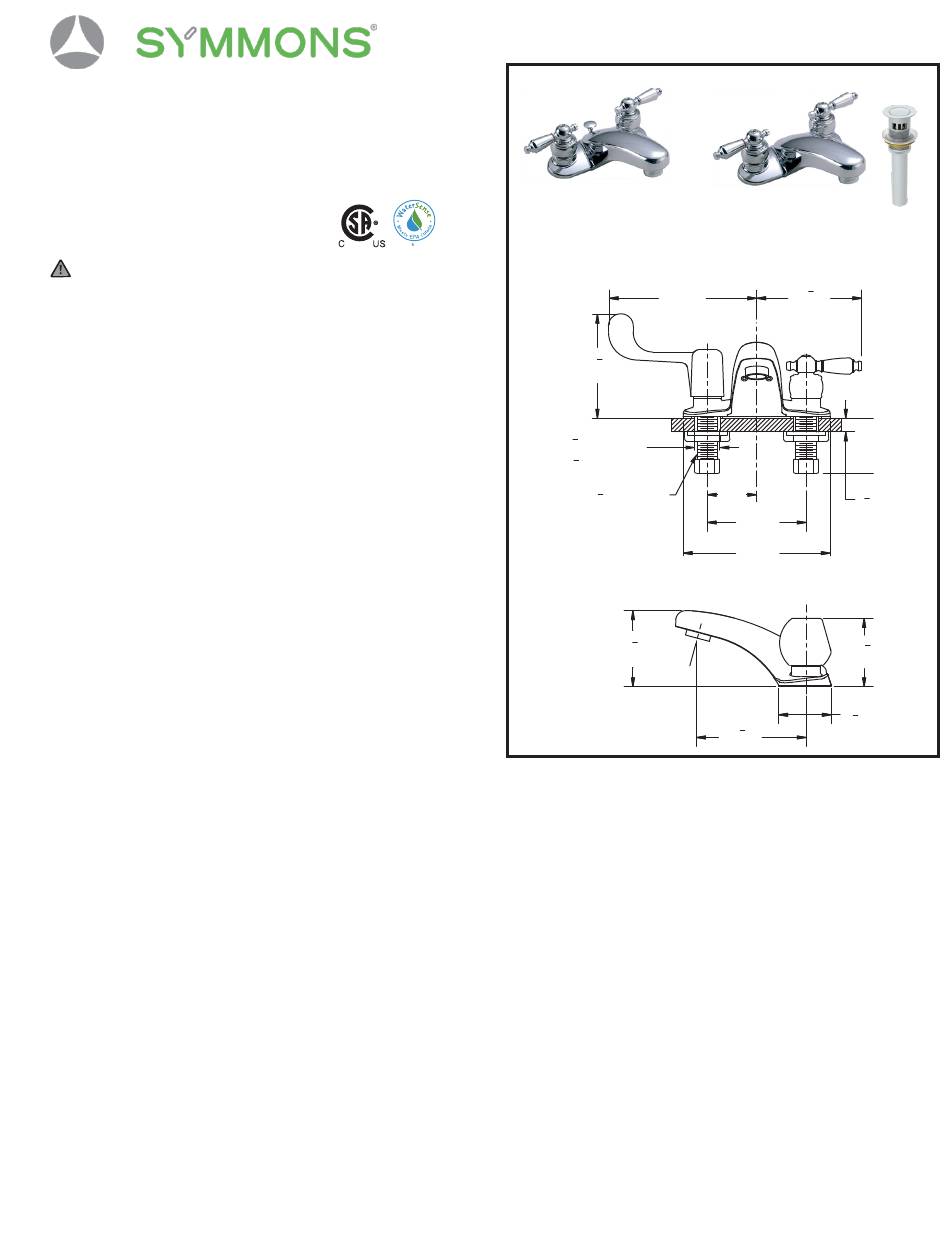

Symmons Symmetrix S240 Operation & Maintenance Manual

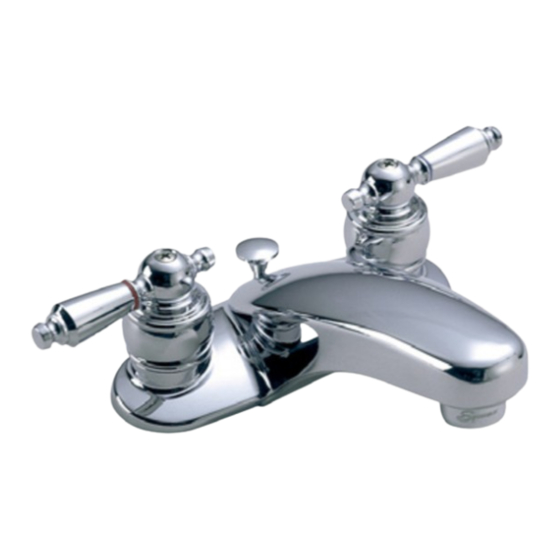

Lavatory Faucet
S240, S2401 & S2402 & S2402PP
Operation & Maintenance Manual
-ASME A112.18.1/CSA B125.1
-NSF/ANSI/CAN 61: Q<1, NSF/ANSI 372
-WaterSense: 1.5 gpm (5.7 L/min)
WARNING: This product can expose you to chemicals including
lead, which is known to the state of California to cause cancer,
birth defects, or other reproductive harm. For more information,
go to www.P65Warnings.ca.gov.
Caution: Be sure to turn off hot and cold water supplies
before installing or servicing faucet.
INSTALLATION:
1. Push faucet supplies through holes in sink. Secure faucet
to sink by tightening flange nuts (KN-116) from underside.
(If sink or counter surface is uneven, use putty or sealant
to make proper seal
under base.)
2. Connect hot supply to left tube and cold supply to right
tube using appropriate connectors.
3. Pop-up drain installation:
a) Remove pop-up plug, tail piece and flange from the drain
body. Make sure that locknut is threaded all the way
down onto the body with flat friction washer in middle
and beveled washer on top.
b) Apply plumbers putty or sealant to bottom of flange.
c) Install drain body through drain opening in lavatory and
screw flange onto the drain body making sure that the
threads are completely engaged for proper sealing and
strength of the connection. Apply joint compound to
all threaded parts to insure proper seal. Apply putty or
teflon tape to tail piece before attaching to drain body.
d) Tighten locknut to compress the beveled flange evenly
across the bottom of the drain opening taking care
not to over tighten the locknut, causing damage to the
lavatory.
e) Remove one of two ball washers from inside the
threaded cavity. Insert pop-up plug and pivot rod into
body. Add one ball washer (the second ball washer
should remain inside the body) to the outside of the ball.
Tighten the retaining nut until the ball is seated on the
internal and external ball washers. Note: The pop-up plug
can be installed either in the removable or non-
removable position, depending on the location of the
hole located in the guide at the bottom of the plug.
f) Slide the pivot rod through one side of the spring clip,
then the appropriate adjustment hole and then other
side of the spring clip.
g) Insert lift rod through faucet housing and the top of the
lift strap and secure it in place by tightening the screw.
Note: To insure proper operation of lift rod and pop-up,
some adjustment of the linkage may be required. There
are two possible adjustment points: 1) lift strap to lift rod
and 2) lift strap to pivot rod.
4. It is very important to thoroughly flush the supply lines to
prevent foreign matter, i.e. copper chips, sand, stones, etc.
from damaging the sealing surfaces of cartridge. Remove
aerator and turn cold valve handle on to full cold position,
open cold supply. Without closing, turn hot valve handle to
full hot position and open hot supply. Let water run in hot
only and cold only positions long enough to flush supply
lines thoroughly. Shut off faucet and replace aerator. Check
for leaks.
Symmetrix®
S240, S2401 & S2402
Certi ed by
CSA Group
7
8
1
1 "(29mm)max
8
To replace cartridge (KN-113 or KN-114) in
faucet with standard or LCT handles:
1. Remove plug button (T-33, T-33R or T-33B), loosen philip
head screw (LN-121A) and remove handle (LN-140, LN-131 or
LN-102).
2. Place wrench on cartridge hex nut (KN-113, KN-114). Turn
wrench counter clockwise until cartridge is removed.
3. Install new cartridge. Turn cartridge with wrench until car-
tridge does not turn easily then turn 1/4 or 1/2 turn further.
Reassemble handle in reverse fashion.
To replace cartridge (KN-113 or KN-114) in
faucet with LCF, LPO or LAM handles:
1. Loosen philip oval head screw (LN-134) and remove handle
(LN-114).
2. Remove collar (LN-112) by turning counter clockwise, do not
use wrench as this may damage the surface finish.
3. Place wrench on cartridge hex nut (KN-113, KN-114). Turn
wrenchcounter clockwise until cartridge is removed.
4. Install new cartridge. Turn cartridge with wrench until
cartridge does not turn easily then 1/4 or 1/2 turn further.
Reassemble handle in reverse fashion.
6"
152mm
1
4 "
4
108mm
"(22mm)min
2"
1
"-14 NPSM
2 51mm
4"
102mm
6"
152mm
1
3 "
8
79mm
1
4 "
2
114mm
S2402PP
1
4 "
4
108mm
1
2 "
4
57mm
3
1 "
8
35mm
max
2 " 3
4
70mm
1
2 "
8
54mm
