Symmons Dia ADA Series Operation & Maintenance

353GB-12 (18, 24, 36, 42)

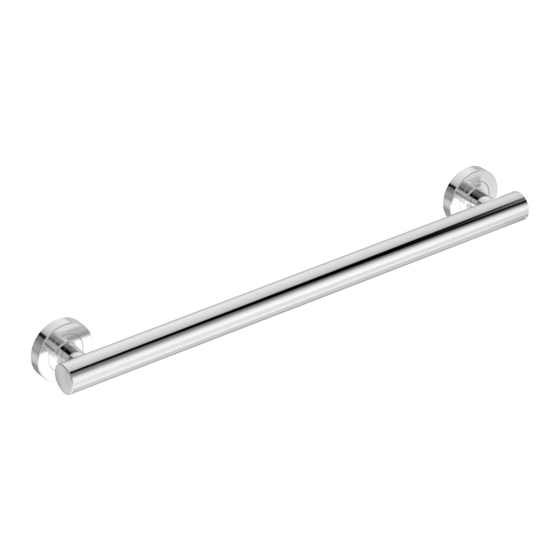

ADA Grab Bar Series
Operation & Maintenance Manual
Model Numbers
☐
353GB-12 12" Grab Bar for ADA Applications
☐
353GB-18
18" Grab Bar for ADA Applications
☐
353GB-24
24" Grab Bar for ADA Applications
☐
353GB-36 36" Grab Bar for ADA Applications
☐
353GB-42 42" Grab Bar for ADA Applications
Finish Options
☐
-STN Satin Nickel finish
Note: Append appropriate -suffix to model number.

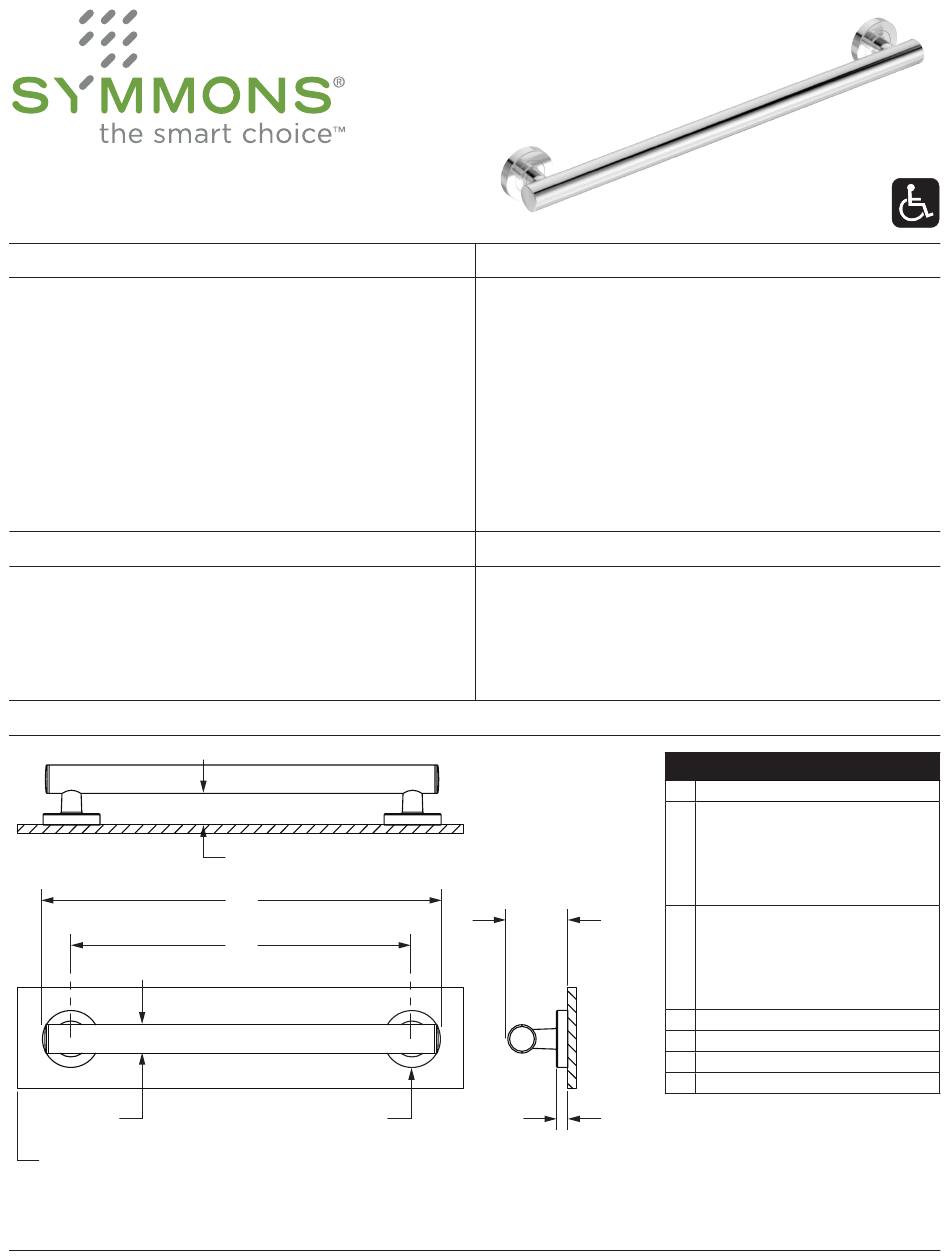

Dimensions
D D
FINISHED WALL FINISHED WALL
Note: Dimensions subject to change without notice.
Dia
A A
B B
C C
E E
®
Specification
• Supports up to 250 lbs.
• 1-1/2" bar diameter
• 3" flange diameter
• Bar extends 1-1/2" from wall
• Concealed mounting for a clean look
• Meets WW-P-541/8B Federal Specification for
Manufacturing
• Meets ADA load requirements when properly installed
• Stainless steel construction
• Grab bar compatible with WingIts stainless steel grab
bar fasteners (p/n GBW40) for drywall applications
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
F F
G G
Measurements
A 1-1/2", 38 mm
15", 381 mm (353GB-12)
21", 533 mm (353GB-18)
B 27", 686 mm (353GB-24)
39", 991 mm (353GB-36)
45", 1143 mm (353GB-42)
12", 305 mm (353GB-12)
18", 457 mm (353GB-18)
24", 610 mm (353GB-24)
C
36", 914 mm (353GB-36)
42", 1067 mm (353GB-42)
D Ø 1-1/2", 38 mm
E (2x) Ø 3-1/16", 78 mm
F 3-1/16", 78 mm
G 1/2", 13 mm
