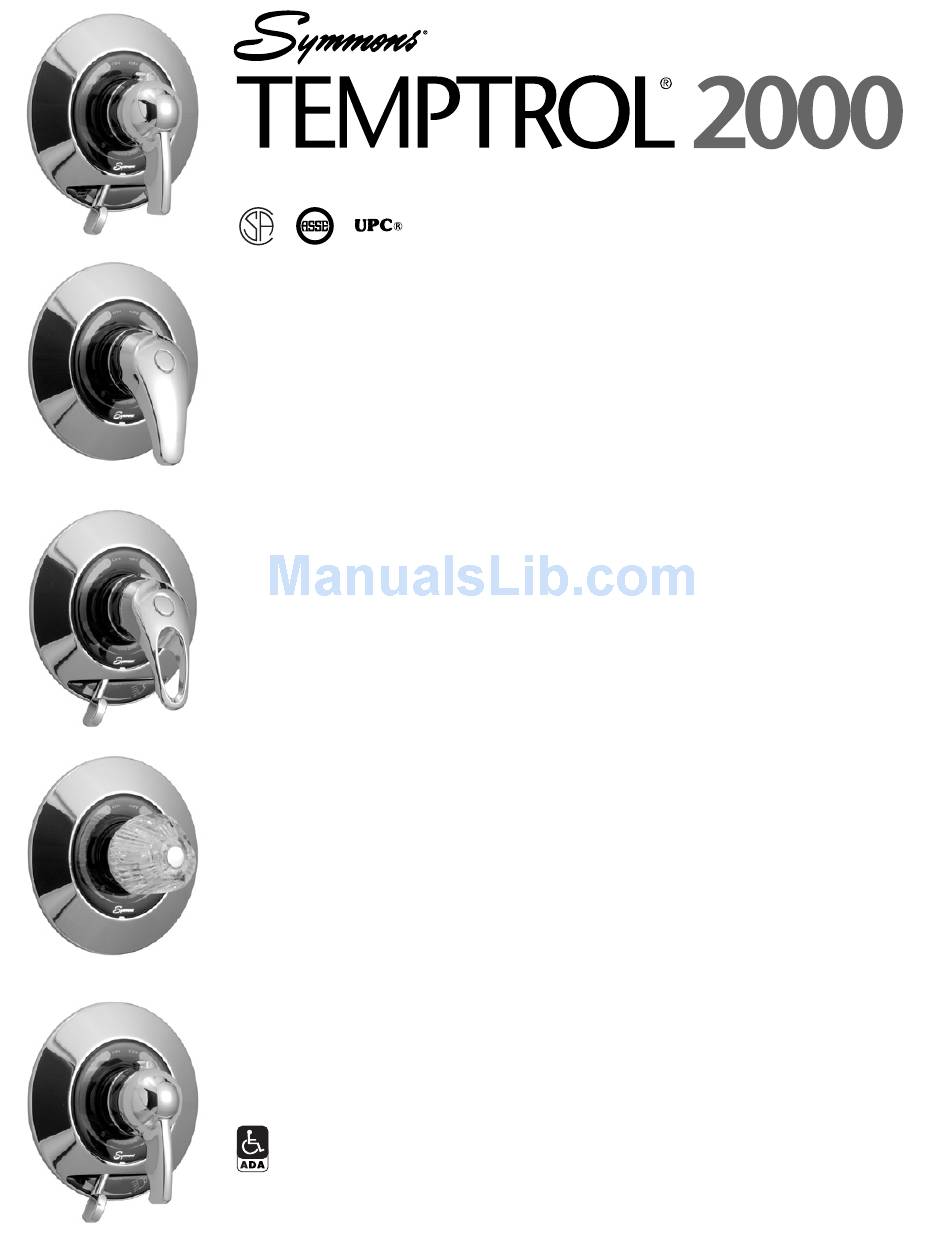

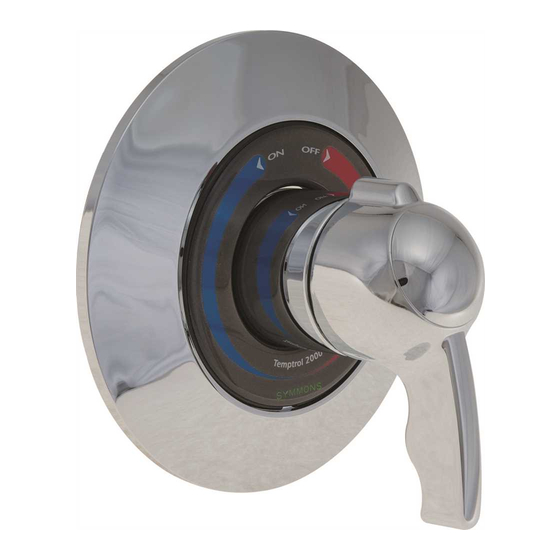

Symmons Temptrol 2000 Installation & Operation Manual

Symmons Temptrol 2000 Installation & Operation Manual

Single handle pressure-balancing mixing valve for shower or tub/shower application

Advertisement

Single Handle Pressure-Balancing Mixing Valve for Shower or Tub/Shower Application
INSTALLATION, OPERATION & SERVICE INSTRUCTIONS
Symmons valves and shower heads comply to all known standards, codes and specifica-
tions: CSA B-125, ANSI A112.18.1M, ASSE 1016, EPA '92 etc.
Symmons shower heads are equipped with a 2.5 GPM (9.5 L/min) water and energy
saving flow restrictor.
LIMITED LIFETIME GUARANTEE
Symmons warrants to the original consumer purchaser that any TEMPTROL
product will be free of defects in material and workmanship during normal domestic use for the life of your
home. All other purchasers including industrial, commercial or business use are warranted for a period of
5 years from the date of purchase.
At our option, we will either have you send the defective part or product prepaid to us for inspection, or
we may elect to send you the replacement part or product without investigation. A replacement for any
defective part will be supplied FREE OF CHARGE for installation by the purchaser. Defect or damage caused
by the use of replacement parts other than Symmons Genuine Replacement Parts will void this warranty.
Symmons further warrants that any TEMPTROL Series, Allura, or SYMMETRIX product will be leak free and
drip free during normal domestic use for the life of your home. If the product should develop a leak or drip,
Symmons will provide FREE OF CHARGE the parts necessary to return it to good working condition.
Proof of purchase (original sales receipt) and a copy of the warranty registration card from the original
consumer purchaser must accompany all warranty claims. This warranty is applicable only to Symmons
TEMPTROL Series, Allura, or SYMMETRIX products purchased after July 1, 1998 and shall be effective from
the date of purchase as shown on the purchaser's receipt.
Damage to the chrome and/or other decorative finishes on Symmons products may be a result of improper
handling or abusive treatment. Finishes should only be cleaned with a soft, damp cloth or sponge. Use of
polish, abrasive cleaners, solvents, or acid cleaners will damage the finish and void this warranty.
This warranty excludes product damage due to installation error, product abuse, or product misuse
whether performed by a contractor, service company or yourself. There are no other express warranties on
this product and ALL WARRANTIES OF MERCHANTABILITY AND OTHER IMPLIED WARRANTIES ARE LIMITED
IN ACCORDANCE WITH APPLICABLE LAW. SYMMONS INDUSTRIES, INC., EXPRESSLY DISCLAIMS CONTIN-
GENT LIABILITY AND CONSEQUENTIAL DAMAGE OF EVERY KIND. Since some states do not allow limita-
tions on how long an implied warranty lasts or an exclusion or limitation of incidental or consequential
damages, the above limitation or exclusion may not be applicable. This warranty gives specific legal rights.
Other rights may vary from state to state.
To obtain warranty service, write to Symmons Industries, Inc., 31 Brooks Drive, Braintree, MA 02184-3804
or call our Customer Service Department at 1-800-SYMMONS. If writing to us, please include proof of pur-
chase, the model number of the product with a brief description of the problem, your name, address and
phone number.
IMPORTANT: After completion of installation step 4, follow these instructions to set
the Temptrol 2000 Limit Stop Screw. This valve is equipped with a limit stop screw to
be used to limit valve handle from being turned to excessively hot water discharge
temperatures. To adjust, remove dome cover, open valve to maximum desired tem-
perature and turn in limit stop screw until it seats.
WARNING: FAILURE TO ADJUST THE LIMIT STOP SCREW PROPERLY MAY
RESULT IN SERIOUS SCALDING.
WARNING: THIS SHOWER SYSTEM MAY NOT PROTECT THE USER FROM SCALD-
ING WHEN THERE IS A FAILURE OF OTHER TEMPERATURE CONTROLLING
DEVICES ELSEWHERE IN THE PLUMBING SYSTEM.
For ADA compliance (Americans with Disabilities Act) consult ADAAG or your state
regulations for proper product choice and mounting locations.
PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING
INSTALLATION. SAVE THIS MANUAL FOR FUTURE REFERENCE.
®
