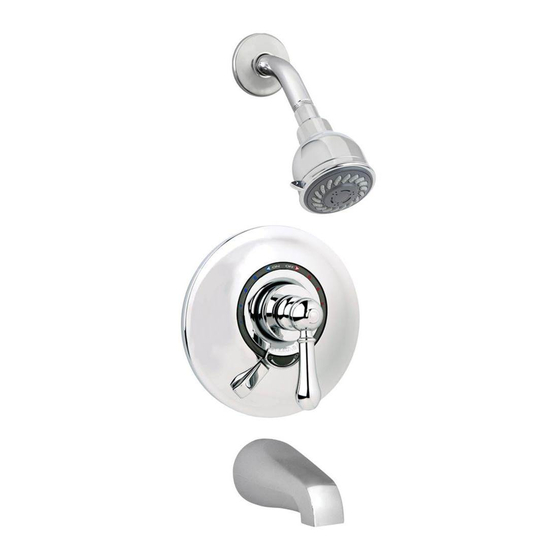

Tub-Shower System
S-7602RP , S-7602-STNRP
Installation and Service Instructions
Model number
S-7602RP ....... Tub-Shower System
with standard chrome finish
S-7602-STNRP.... Tub-Shower
System with satin nickel finish
Ordering Replacement Parts
Systems with optional satin finish,
append -STN (3 letter finish code) to
part numbers with an asterisk(

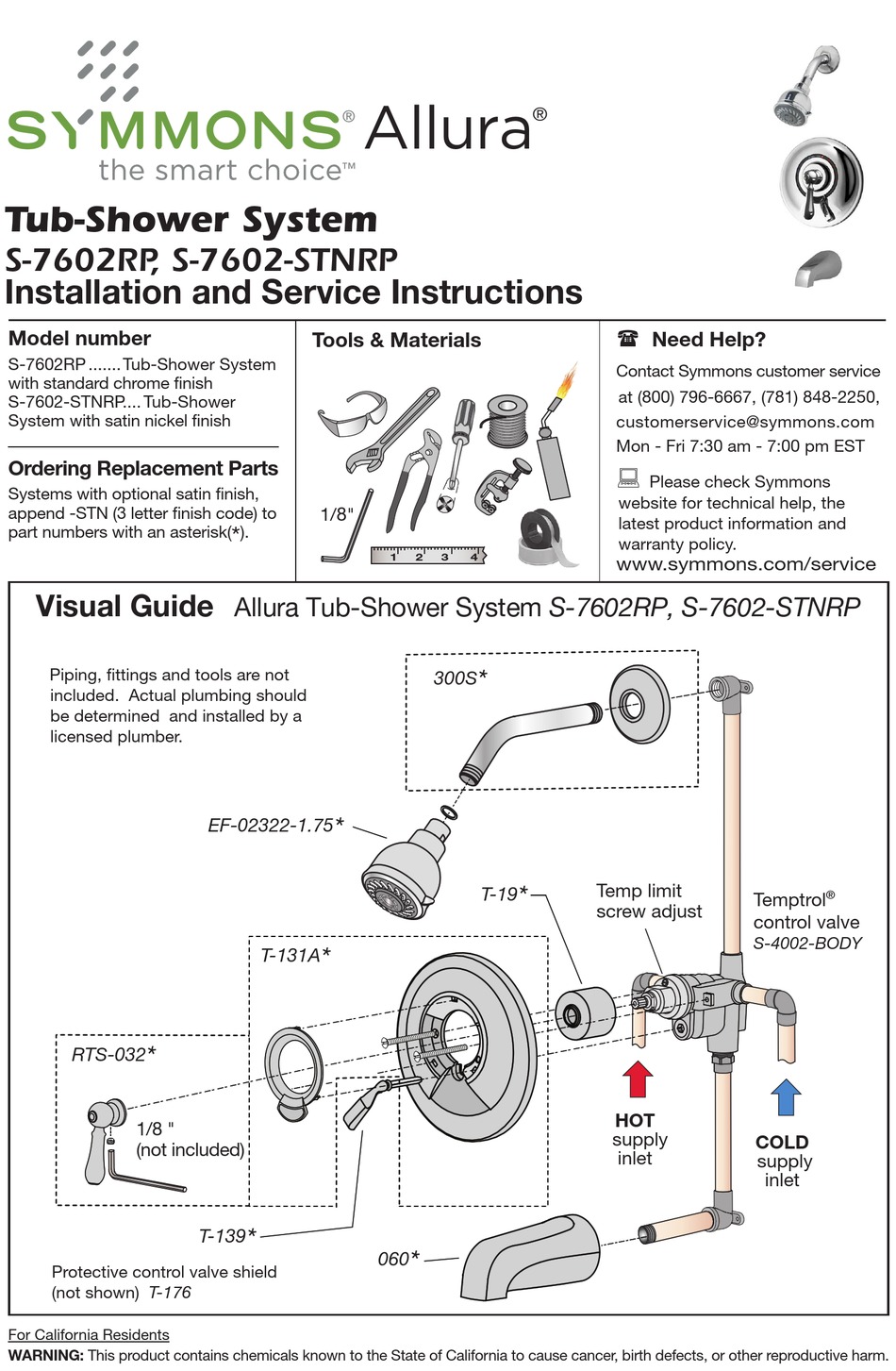

Visual Guide
Piping, ttings and tools are not
included. Actual plumbing should
be determined and installed by a
licensed plumber.
*
RTS-032
1/8 "
(not included)
Protective control valve shield
(not shown) T-176
For California Residents
WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Allura
Tools & Materials
1/8"
*
).
Allura Tub-Shower System S-7602RP, S-7602-STNRP
*
EF-02322-1.75
*
T-131A
*
T-139
®
1
2
3
4
*
300S
*
T-19
*
060
 
Need Help?
Contact Symmons customer service
at (800) 796-6667, (781) 848-2250,
customerservice@symmons.com
Mon - Fri 7:30 am - 7:00 pm EST
Please check Symmons
website for technical help, the
latest product information and
warranty policy.
www.symmons.com/service
Temp limit
Temptrol
screw adjust
control valve
S-4002-BODY
HOT
supply
COLD
inlet
supply
inlet
®
