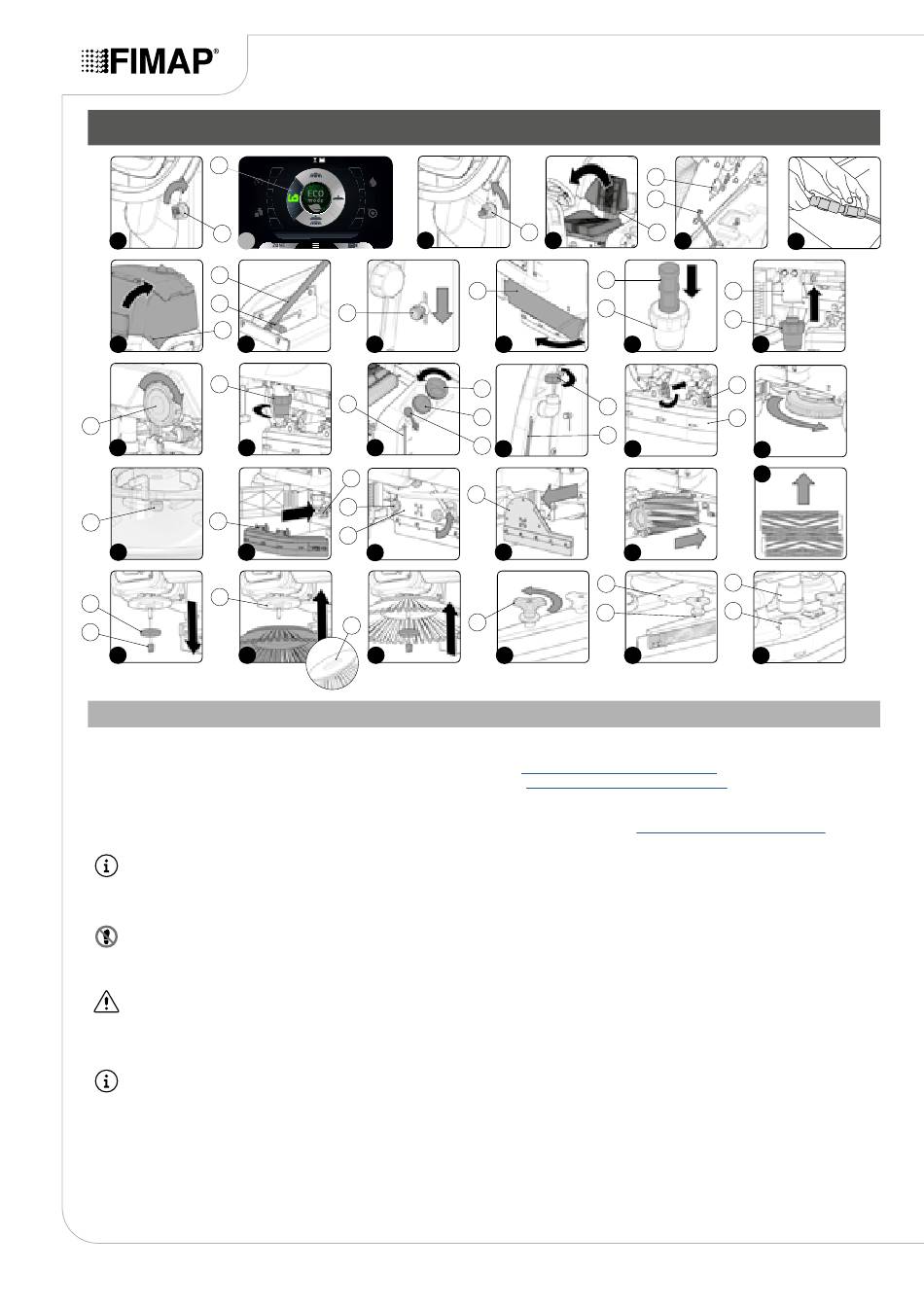

MACHINE SAFETY

To ensure that work is carried out in the best safety conditions, proceed as follows:
1. Make sure the solution tank is empty. If this is not the case, empty it (read
2. Make sure the recovery tank is empty. If this is not the case, empty it (read
3. Sit on the driver's seat.
4. Insert the key (1) into the main switch on the control panel. Set the main switch to "I" by turning the key a quarter turn clockwise (Fig.1).
5. Using the DS selector on the command display (Fig.7), activate the "transfer" program (6) (see
N.B.: the grey symbols show working programs that are not active. the green symbols show working programs that are active.
6. Set the main switch to "0" (Fig.3) by turning the key (1) a quarter turn anti-clockwise. Remove the key from the instrument panel.
7. Get off the machine.
CAUTION: when getting down from the machine, do not place your foot on the scrubbing brush head or side brush head brush.
8. Grip the back of the seat (3) and turn the seat support plate to its maintenance position (Fig.4).
ATTENTION: to prevent the seat from rotating, insert the retainer (4) into the slot (5) (Fig.5).
9. Disconnect the battery connector from the machine's main system connector (Fig.6).
10. Grip the back of the seat (3) and turn the seat support plate to the working position.
N.B.: before rotating the seat support plate, remove the retainer (4).

PREPARATION OF MACHINE
