Transfer - Fimap MAGNA PLUS Use And Maintenance Manual

ATTENTION: if you want to pass from a work program with the washing mode (only washing or washing
with drying) to the transfer program always remember to select the vacuum program for the time needed
to collect the detergent solution on the ground.
0000.00 100%
A
D
DRIVE
1

TRANSFER

1 2 3 4
0000.00
12
11
1. FFM symbol, if visible it shows that the system is operating.
2. FSS symbol, if visible it shows that the system is operating.
3. Side brush head symbol, if visible it shows that the side brush head is in the working position.
4. Working lights symbol, if visible it shows that the working lights are on.
N.B.: If you need to activate the dipped headlights during the transfer, read the section
5. General alarm symbol.
ATTENTION: if visible, stop the machine. To continue working, see
6. If the recovery tank float symbol is visible, this signals that the recovery tank is full and needs to be emptied (see
RECOVERY TANK").
7. If the solution tank float symbol is visible, this signals that the solution tank is empty and needs to be refilled (see
TANK").
8. Eco-Mode button.
N.B.: if the Eco-Mode button is pressed in transfer mode, the "scrubbing with drying" program is activated in economic mode.
9. Menu button.
10. Rear camera button.
N.B.: when the rear view camera button is pressed (if present), the camera located at the back of the machine will be activated, see
"REAR VIDEO CAMERA
11. Zone button.
N.B.: if the Zone button is pressed in transfer mode, the window for selecting the zone opens (see "ZONE PROGRAM MODE"); after
selecting a zone, the machine shifts into scrubbing with drying mode with the program of the zone selected.
12. Text indicator.
N.B.: the text indicator shows which zone program has been selected, or whether the machine is in transport mode if the word "DRIVE" is
visible.
B
C
1
5 6 7
100%
DRIVE
" to continue working.
0000.00 100%
Back

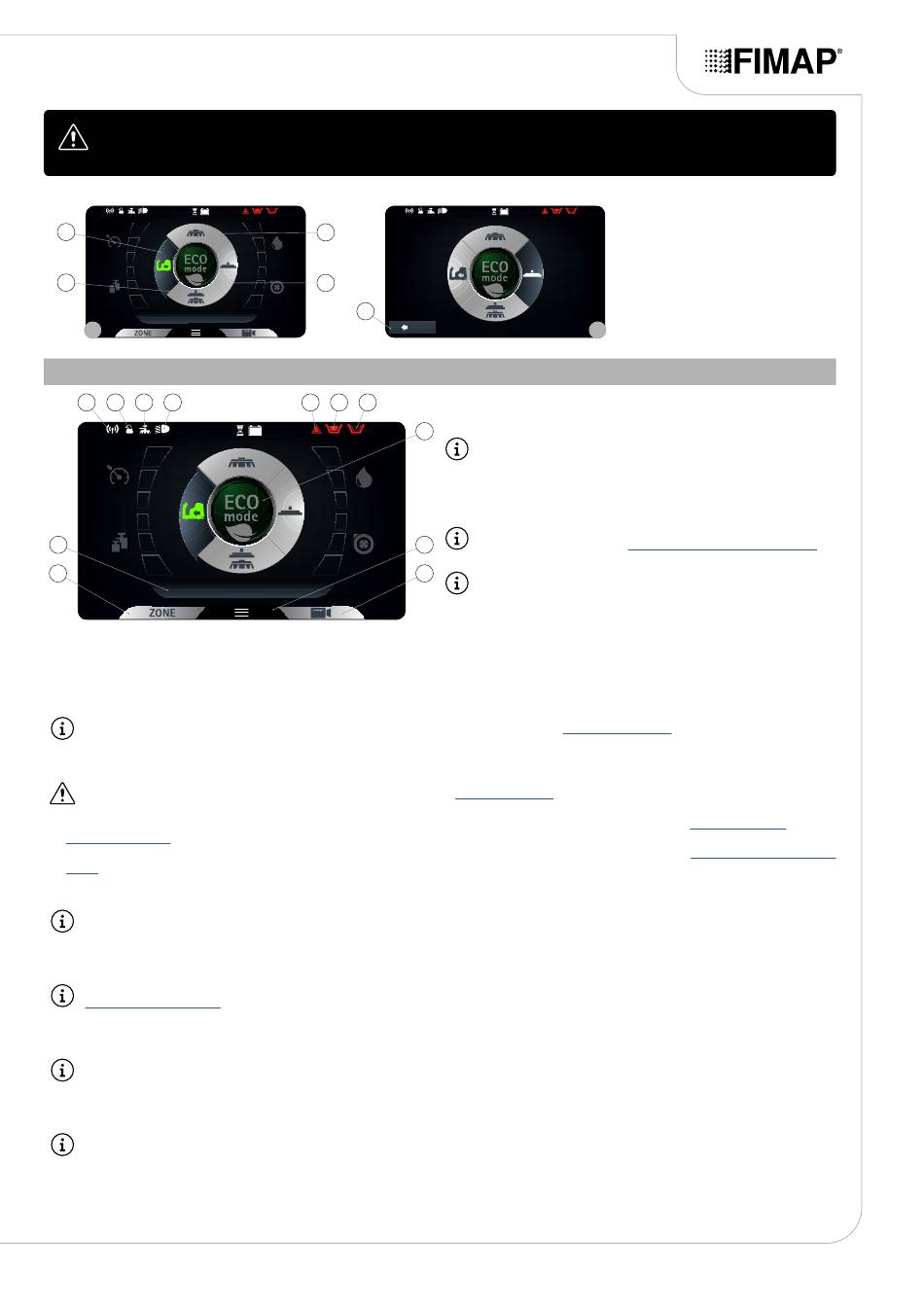

By selecting the "TRANSFER" program, the command display screen
will appear as in the adjacent figure.
8
N.B.: with this working program both the brush head and the
squeegee support are put in the rest position (raised off the floor)
and the motors switch off with the respective switching off delays
(even if the drive pedal is not pressed). When the drive pedal is pressed
only the traction motor is powered.
N.B.: In the DS selector, the transport program symbol (A) is
green (read the paragraph
9
10 N.B.: the grey symbols show working programs that are not
active. the green symbols show working programs that are active.
The icons that may be visible on the control panel display are:
"WORKING
"ALARM SCREEN".
23
2
"DS (DRIVE SELECT) SELECTOR").
LIGHTS".
"EMPTYING THE
"FILLING THE SOLUTION
