Label indicating the need to read the Use and Maintenance Manual:
Applied in the vicinity of the steering column in order to remind the operator to read the user and maintenance manual before
using the machine.
Treading ban label:
Located on the machine, to identify the surfaces that must not be trodden on (risk of personal injury or damage to the machine).
Label warning about the risk of crushed hands:
Indicates danger to hands due to crushing between two surfaces.
Warning label:
Affixed to the machine in order to warn the operator to read the user and maintenance manual (this document) before using the
machine for the first time. Also indicates the applicable procedures for properly caring for the machine itself.
Solution tank filter daily care warning label:
Applied to the machine to remind the operator to clean the solution tank after each use.
Vacuum motor filter label:
Applied inside the vacuum cover to identify the vacuum motor intake air filter, and also serves to remind the operator to clean the
filter after each machine use.
Braking system oil level check label:
Located near the braking system oil basin, to remind the operator to check the level of oil in the basin.
The bottom part of the label shows the recommended oil for the braking system.
Vacuum wand optional accessories kit position label:
Applied above the recovery tank cover to identify and position the accessories of the vacuum wand optional kit.
3
1 1 1 2 3 4
2
4

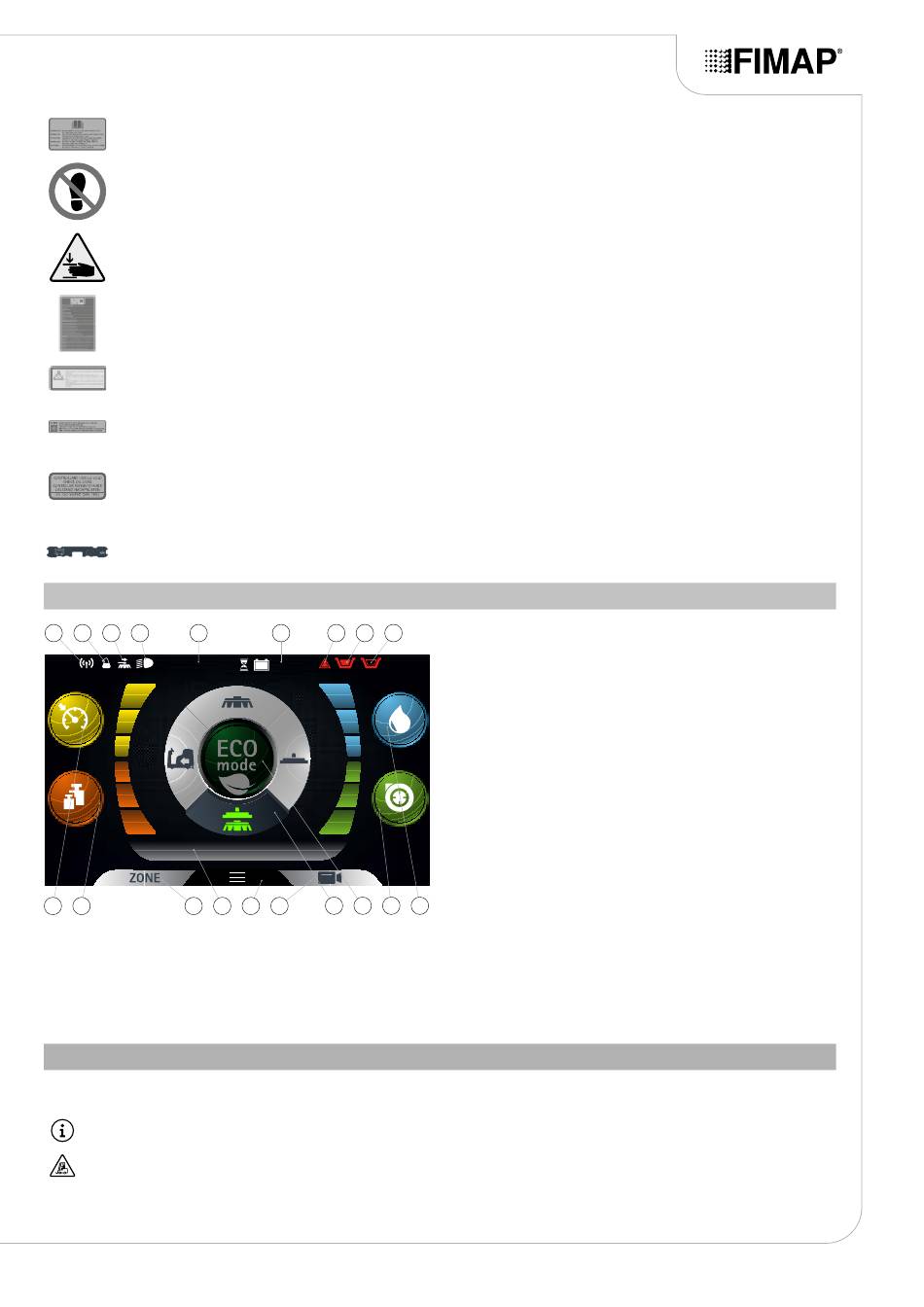

SYMBOLS USED ON THE CONTROL DISPLAY

1 2 3 4 5
0000.00
MANUAL
19 18 17 16
16. Text indicator.
17. Zone program selector button.
18. Brush head extra pressure level symbol.
19. Forward speed level symbol.

HANDLING THE PACKAGED MACHINE

The overall dimensions of the entire package are: length = 2030mm width = 1280mm height = 1605mm while the overall mass of the package is
535Kg.
N.B.: it is recommended that all the packaging components be kept for any future machine transportation.
DANGER: Move the packaged product with handling equipment that complies with legal requirements regarding size and mass of the
packaging.
6 7 8 9
100%
15 14 13 12 11 10
1. FFM symbol, if visible it shows that the "FIMAP FLEET
MANAGEMENT" system is active.
2. FSS symbol, if visible it shows that the "FIMAP SOLUTION SAVER"
system is active.
3. Side brush head symbol, if visible it shows that the side brush is
operating.
4. Working lights symbol, if visible it shows that the working lights are
on.
5. Hour meter.
6. battery charge level percentage.
7. General alarm symbol.
8. Recovery tank float symbol, if visible it shows that the recovery tank
is full and that to continue you need to empty it.
9. Solution tank float symbol, if visible it shows that the recovery tank
is empty and that to continue you need to fill it.
10. Detergent solution level symbol.
11. Vacuum motor performance level symbol.
12. "ECO-MODE" program button.
13. Working mode selector (DRIVE SELECT).
14. Rear camera symbol.
15. Menu screen activation symbol.
