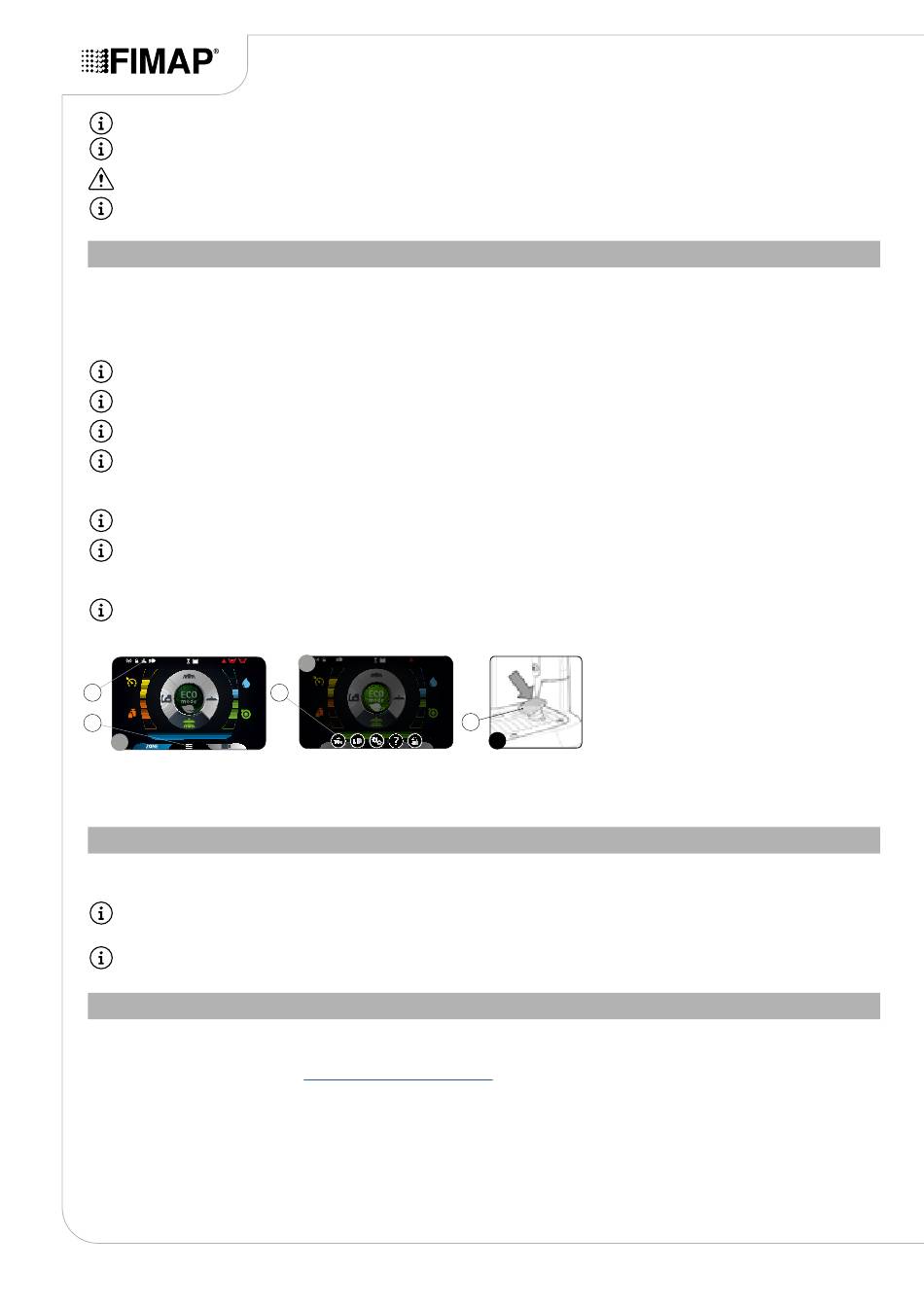

Side Brush; Automatic Request For Technical Assistance (Ffm Version); Liquid Suction Wand Kit - Fimap MAGNA PLUS Use And Maintenance Manual

N.B.: if the FSS system is activated, the relative symbol (3) is displayed in the working screen.
N.B.: if you want to deactivate the FSS system press button (2) again.
ATTENTION: before starting any work, remember to start the FSS system.
N.B.: to return to the working screen press on any point of the screen, except the edges of the display or else wait three seconds without
touching anything.

SIDE BRUSH

If the lateral brush needs to be used during the floor scrubbing operations, and therefore with the brush head in its working position, do as
follows.
1. With the machine on, press the menu button (1) on the working screen (Fig.1).
2. press the ACTIVATION-DEACTIVATION OF LATERAL BRUSH 1SL (2) (Fig.2).
N.B.: when the ACTIVATING-DEACTIVATING THE SIDE BRUSH 1SL (2) key is grey it shows that the brush is not active (Fig.2).
N.B.: when the ACTIVATING-DEACTIVATING THE SIDE BRUSH 1SL (2) key is green it shows that the brush is not active (Fig.2).
N.B.: when the SIDE BRUSH 1SL mode is active, the top left part of the work screen displays the symbol (3) specifically for this (Fig.1).
N.B.: the lateral brush head starts to move towards the outside of the machine only when the drive pedal (4) is pressed (Fig.3). Only
when the lateral brush head is in the working position will the solenoid valve begin to dispense the detergent solution (if the detergent
level is other than zero).
N.B.: In order to bring the lateral brush head back to its resting position, press the button (2).
N.B.: when the drive pedal is released all the brush head motors stop with the respective delays. After the "Reset Delay"time all the brush
heads are taken to the rest position (raised off the floor). Even if the lateral brush head is in a rest position, the lateral brush function is still
active, in fact when the drive pedal (4) is operated all the brush heads are brought to the working position (in contact with the floor).
N.B.: to return to the working screen press on any point of the screen, except the edges of the display or else wait three seconds without
touching anything.
0000.00 100%
3
1
OFFICE
1

AUTOMATIC REQUEST FOR TECHNICAL ASSISTANCE (FFM VERSION)

The machine has an automatic service for activating an urgent technical assistance request. To activate this function, the operator simply needs
to press the button under the hatch bearing the symbol "SOS".
N.B.: in order to activate this urgent technical assistance request the machine needs to be equipped with the FIMAP FLEET
MANAGEMENT kit.
N.B.: in order to send a technical assistance request the machine needs to be on and should be in a zone with data traffic coverage.

LIQUID SUCTION WAND KIT

Upon request, the machine can be fitted with the VACUUM WAND system that vacuums up the detergent solution more accurately. To start it do
as follows.
1. Select the "transfer" program (see
2. Remove all the vacuum kit components from the storage compartment (Fig.1).
3. Assemble the steel extension tube (Fig.2).
4. Insert the vacuum brush (2) into the extension tube (1) (Fig.3).
5. Connect the vacuum tube (3) to the extension tube (1) (Fig.4).
6. Remove the vacuum tube (5) from the sleeve (4) in the squeegee body (Fig.5).
2 0000.00 100%
2
ECO mode
"DS (DRIVE SELECT) SELECTOR").
3
3
32
