FortiGate-5140 chassis
Connecting a FortiGate-5140 chassis to Data Center DC power
and Data Center ground
FortiGate-5000 Series Quick Guide
01-00000-0294-20060315
Connecting a FortiGate-5140 chassis to Data Center DC power and Data Center ground
Connect the FortiGate-5140 chassis to Data Center DC power (also called battery
power) using the redundant power entry modules (PEMs). Fortinet supplies and
recommends AWG-14 stranded wires for all power connections. Black for
-48VDC, red for RTN, and green for ground. If required, install terminal lugs on the
wires before connecting them to the PEM terminal strips. If you are connecting
both PEMs the -48VDC and RTN terminals on PEM A and PEM B must be wired
symmetrically.

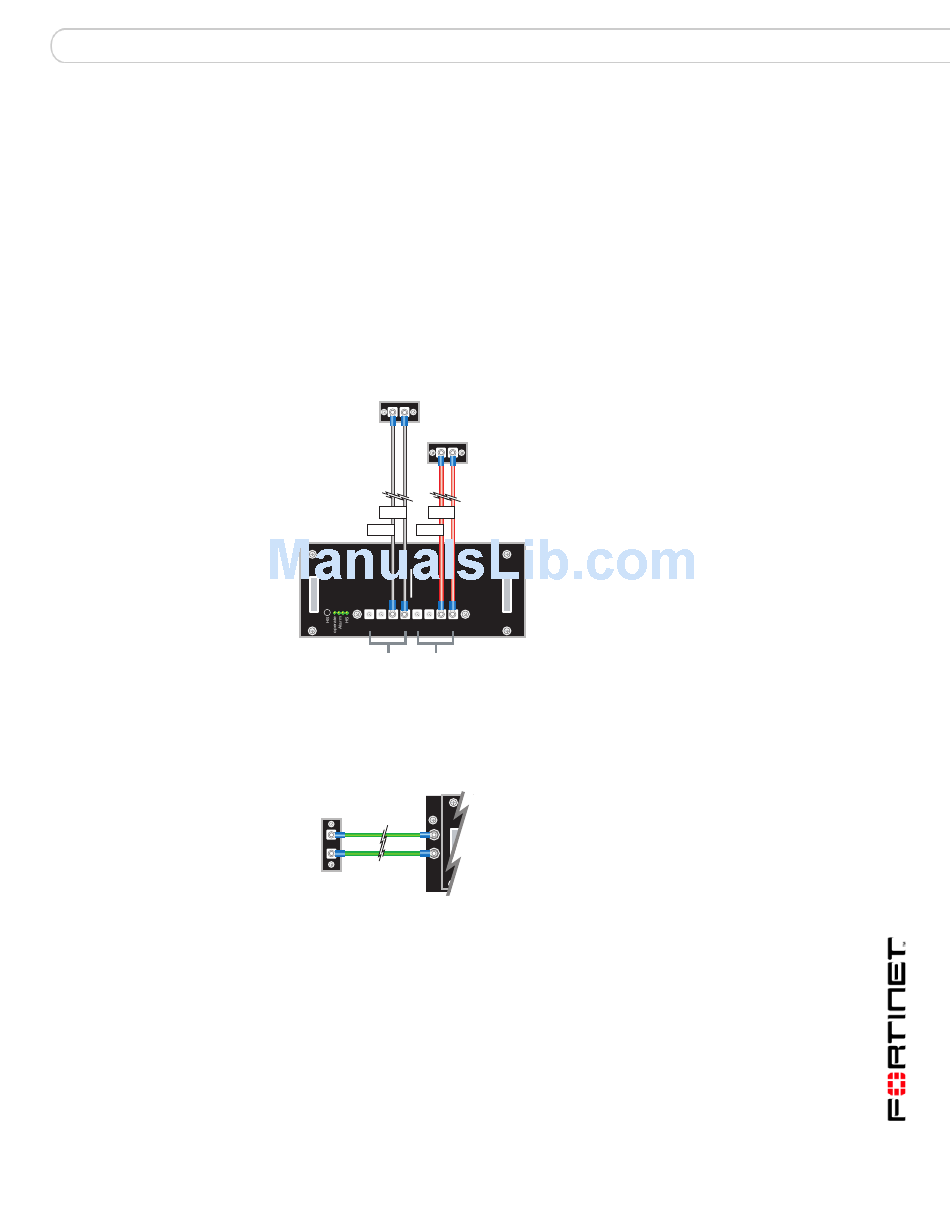

Figure 3: Connecting a FortiGate-5140 PEM to Data Center DC power
Data Center
-48VDC
connector
Data Center
RTN connector
-48V/-60 VDC
black to Data
Center -48VDC
RTN (positive)
-48V RTN
-48V RTN
-48V/-60 VDC nom RTN
4 3 2 1 4 3 2 1
4 3 2 1 4 3 2 1
-48V/-60 VDC nom RTN (positive)
terminal strip
terminal strip
connectors
connectors
1, 2, 3, 4
1, 2, 3, 4
Figure 4: Connecting a FortiGate-5140 chassis to Data Center ground
Data Center
ground
connectors
red to Data
Center RTN
FortiGate-5140
Ground
connectors
