Connecting the FortiGate-5140 chassis to AC power using the FortiGate-5053 power converter tray
Basic power requirements
To supply enough power for a FortiGate-5140 chassis with a total of 14 FortiGate
and FortiSwitch modules you require one FortiGate-5053 power converter tray
and two FortiGate-5140 power supplies (see
supplies are installed in FortiGate-5053 slots 1 and 2. This configuration supplies
2400W of power to the FortiGate-5140 chassis.

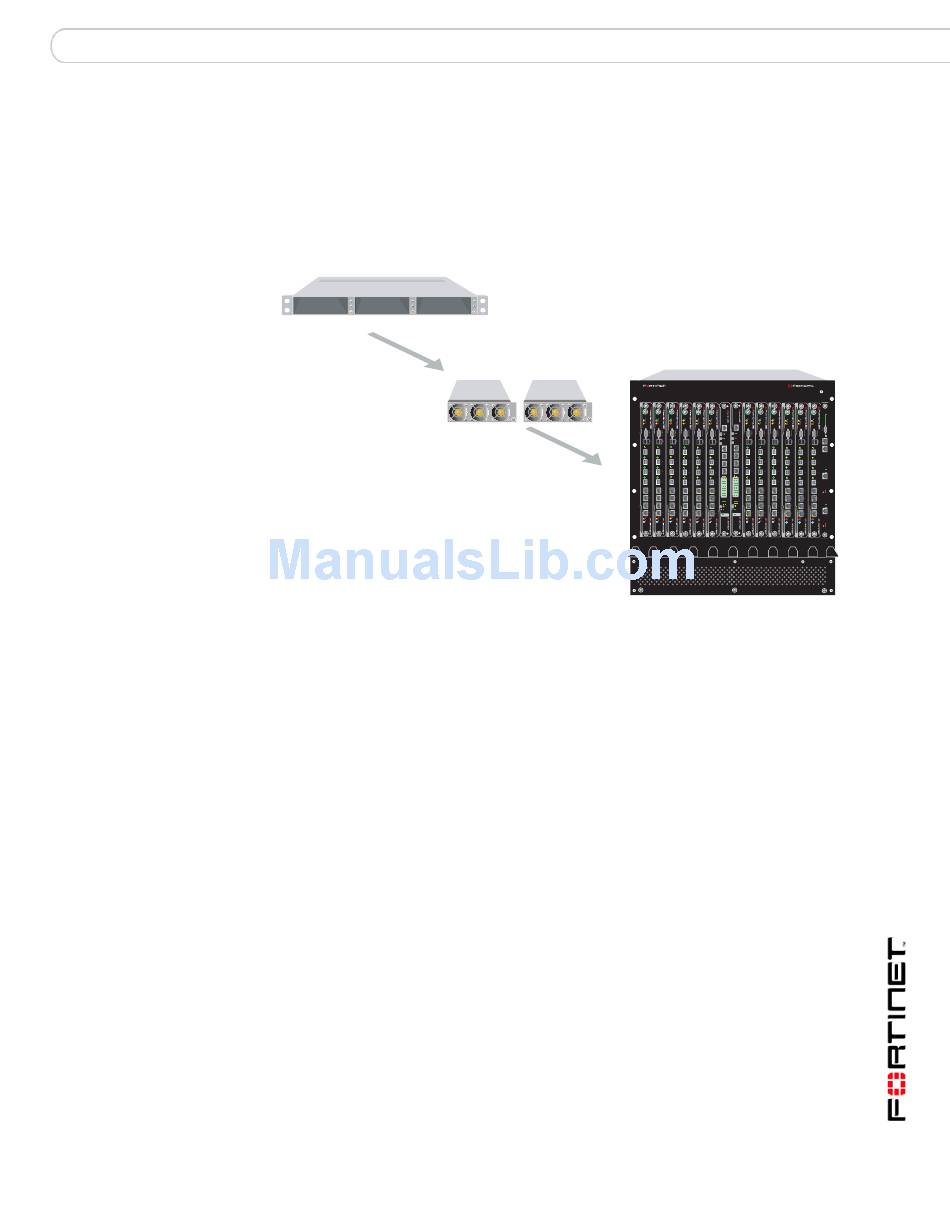

Figure 7: Non-redundant power for all FortiGate-5140 chassis slots
Slot 3 Slot 2 Slot 1
2 FortiGate-5140
power supplies
2 x 1200W = 2400W
For information about additional power configurations, see the
Series Hardware Guide.
Figure 7). The FortiGate-5140 power
1 FortiGate-5053
power convertor tray
13 11 9
1 FortiGate-5140
chassis
5140
7 5 3 1 2 4 6 8 10 12 14
