You can install up to five FortiGate-5000 series modules in the five slots of the
FortiGate-5050 ATCA chassis. The FortiGate-5050 is a 5U chassis that contains
two redundant DC power connections that connect to -48 VDC Data Center DC
power. The FortiGate-5050 chassis also includes a hot swappable cooling fan
tray. If all five slots contain FortiGate-5001SX modules, the FortiGate-5050
chassis provides a total of 40 Gigabit ethernet FortiGate interfaces.
You can also install a FortiSwitch-5003 module in the FortiGate-5050 chassis to
provide HA heartbeat communications. A single FortiSwitch-5003 module can
provide HA heartbeat communications for up to three FortiGate-5000 series
modules in the chassis. You can add a second FortiSwitch-5003 module for
redundancy. The first FortiSwitch-5003 module is installed in slot 2, the second in
slot 1.
The FortiGate-5050 chassis requires -48VDC Data Center DC power. If DC power
is not available you can install a FortiGate-5053 power converter tray (purchased
separately) with FortiGate-5020/5050 power supplies.

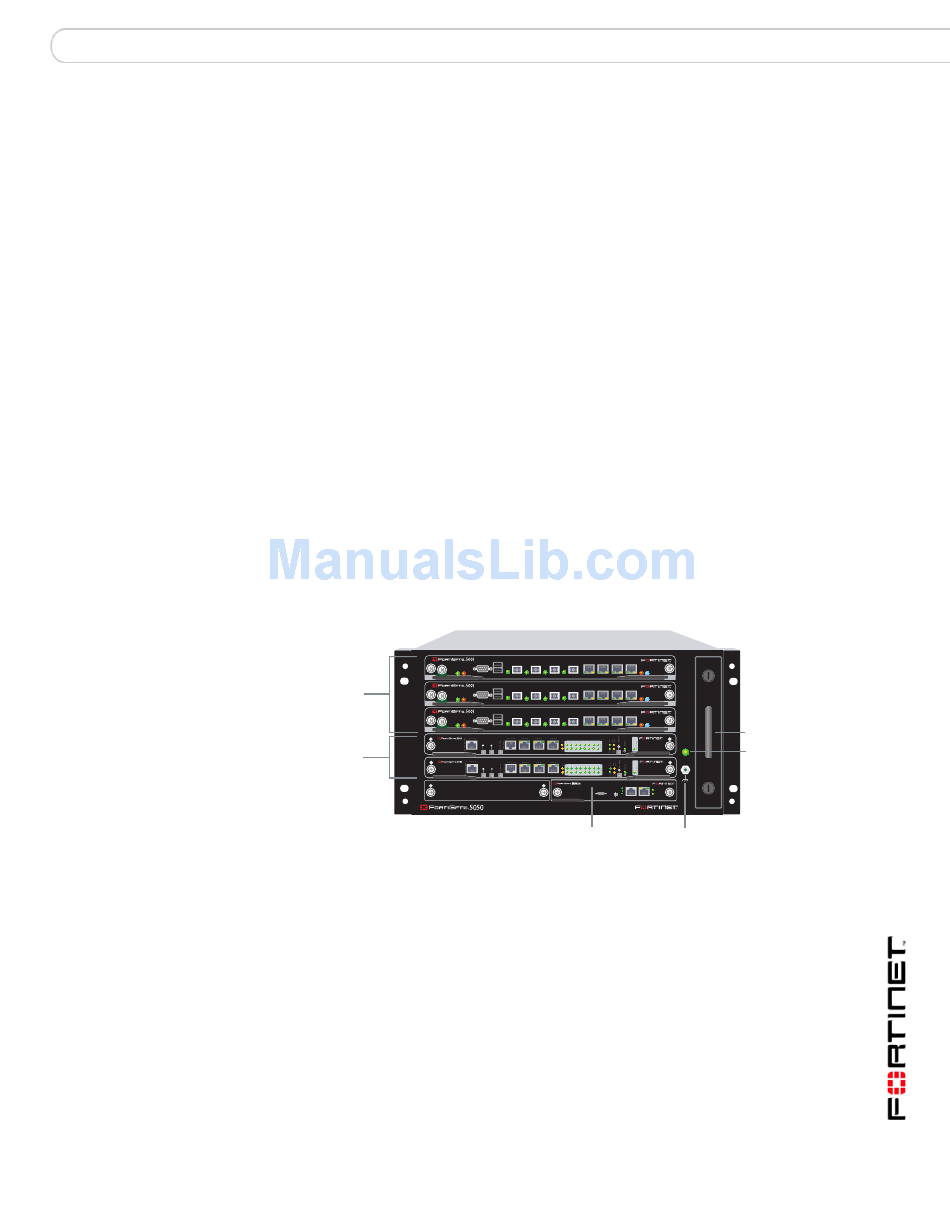

Figure 9 shows the front of a FortiGate-5050 chassis. Two FortiSwitch-5003
modules are installed in slots 1 and 2. Three FortiGate-5001SX modules are
installed in slots 3, 4, and 5.
Figure 9: FortiGate-5050 front panel
5
PWR ACC
FortiGate-5001SX
modules
4
PWR ACC
slots 3, 4,
and 5
3
PWR ACC
2
FortiSwitch-5003
modules
1
slots 1 and 2
ShMC
2
The FortiGate-5050 chassis back panel includes two redundant -48V to - 58V DC
power input connectors labelled Input A and Input B.
