FortiGate-5002FB2 security system

FortiGate-5002FB2 security system
FortiGate-5000 Series Quick Guide
01-00000-0294-20060315
The FortiGate-5002FB2 security system module is a high-performance FortiGate
security system with accelerated packet forwarding and policy enforcement for
two of its six Gigabit ethernet interfaces. Accelerated packet forwarding and policy
enforcement results in accelerated small packet performance required for voice,
video, and other multimedia streaming applications.
The FortiGate-5002FB2 module supports high-end features including 802.1Q
VLANs and multiple virtual domains. You can also configure two or more
FortiGate-5002FB2 modules to create a high availability (HA) cluster to provide
failover protection and load balancing. HA clustering uses two internal gigabit
interfaces for HA communication through the FortiGate-5000 series chassis
backplane, leaving all eight front panel gigabit interfaces available for network
connections.
The FortiGate-5002FB2 module includes the following features:
• A total of six gigabit interfaces
• Two accelerated 1000Base-T gigabit copper network interfaces (interfaces
1 and 2)
• Four 1000Base-T gigabit copper network interfaces (interfaces 3, 4, 5, and
6)
• RJ-45 RS-232 serial console connection
• USB connector
• Mounting hardware
• LED status indicators

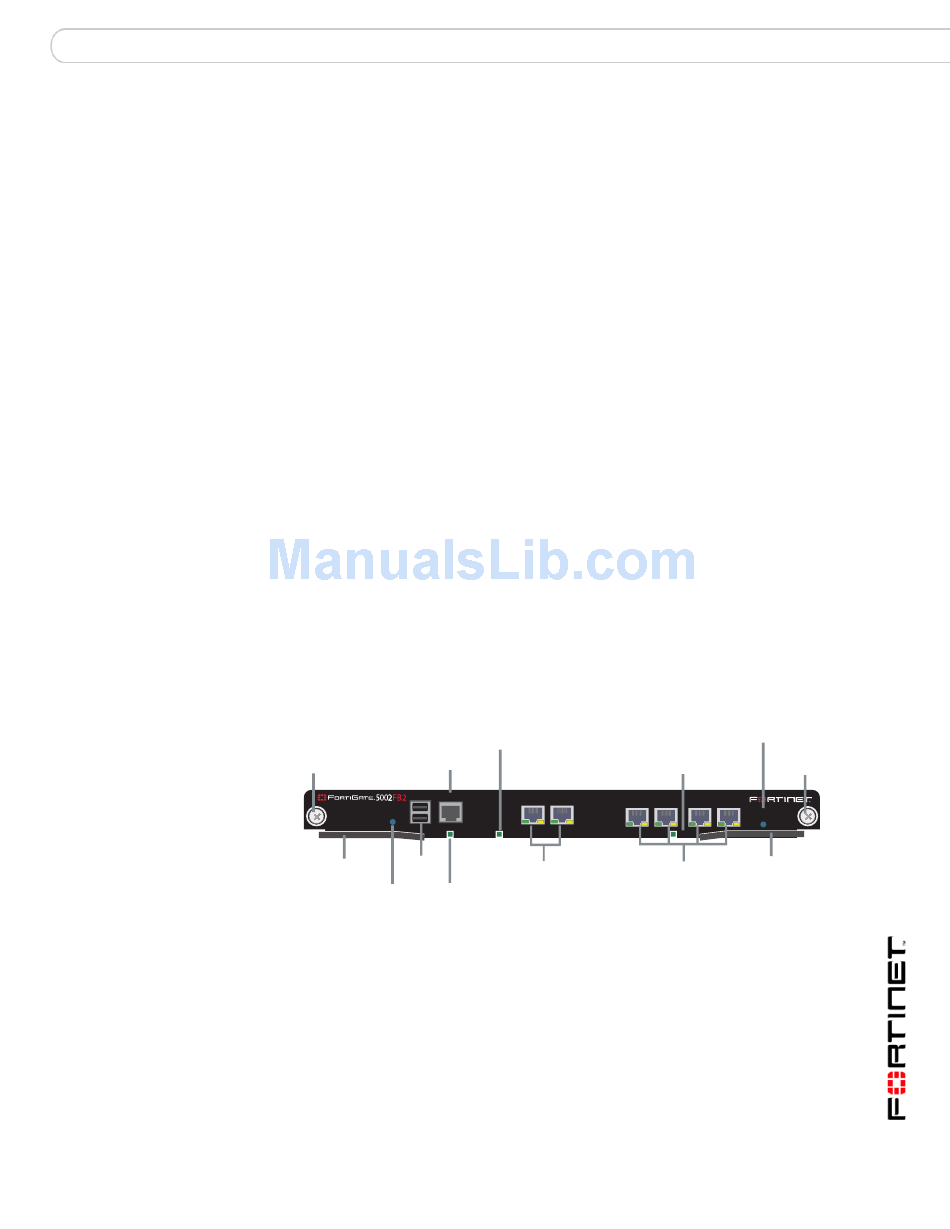

Figure 25: FortiGate-5002FB2 front panel
Mounting
RJ-45 Serial
Knot
USB CONSOLE
RESET
STATUS
Extraction
USB
Lever
Reset Status
Table 9 lists and describes the FortiGate-5002FB2 module LEDs.
Power
Module Position
1 2 6
3 5
PWR
1 2 Gigabit
Copper Accelerated Gigabit Copper
Alt On/Off
Mounting
Knot
4 5 6
ALT
ON/OFF
IPM
3 4 5 6 Extraction
Lever
