FortiGate-5020 chassis

FortiGate-5020 chassis
FortiGate-5000 Series Quick Guide
01-00000-0294-20060315
You can install one or two FortiGate-5000 series modules in the two slots of the
FortiGate-5020 ATCA chassis. The FortiGate-5020 is a 4U chassis that contains
two redundant AC to DC power supplies that connect to AC power. The
FortiGate-5020 chassis also includes an internal cooling fan tray. If both slots
contain FortiGate-5001SX modules, the FortiGate-5020 chassis provides a total
of 16 Gigabit ethernet FortiGate interfaces.
If you install the same FortiGate-5000 series module in both slots, you can
configure the modules to operate as an HA cluster. HA heartbeat communications
between the modules uses the FortiGate-5020 backplane. No extra switching or
other connections are required.
The FortiGate-5020 chassis can only be connected to AC power. Two redundant
FortiGate-5020/5050 power supplies are factory installed in the FortiGate-5020
chassis.
Figure 17
shows the front of a FortiGate-5020 chassis. Two FortiGate-5001SX
modules are installed. The FortiGate-5020/5050 power supplies are factory
installed behind the panel at the top of the chassis. The power LEDs for the power
supplies are visible on the front panel as well.

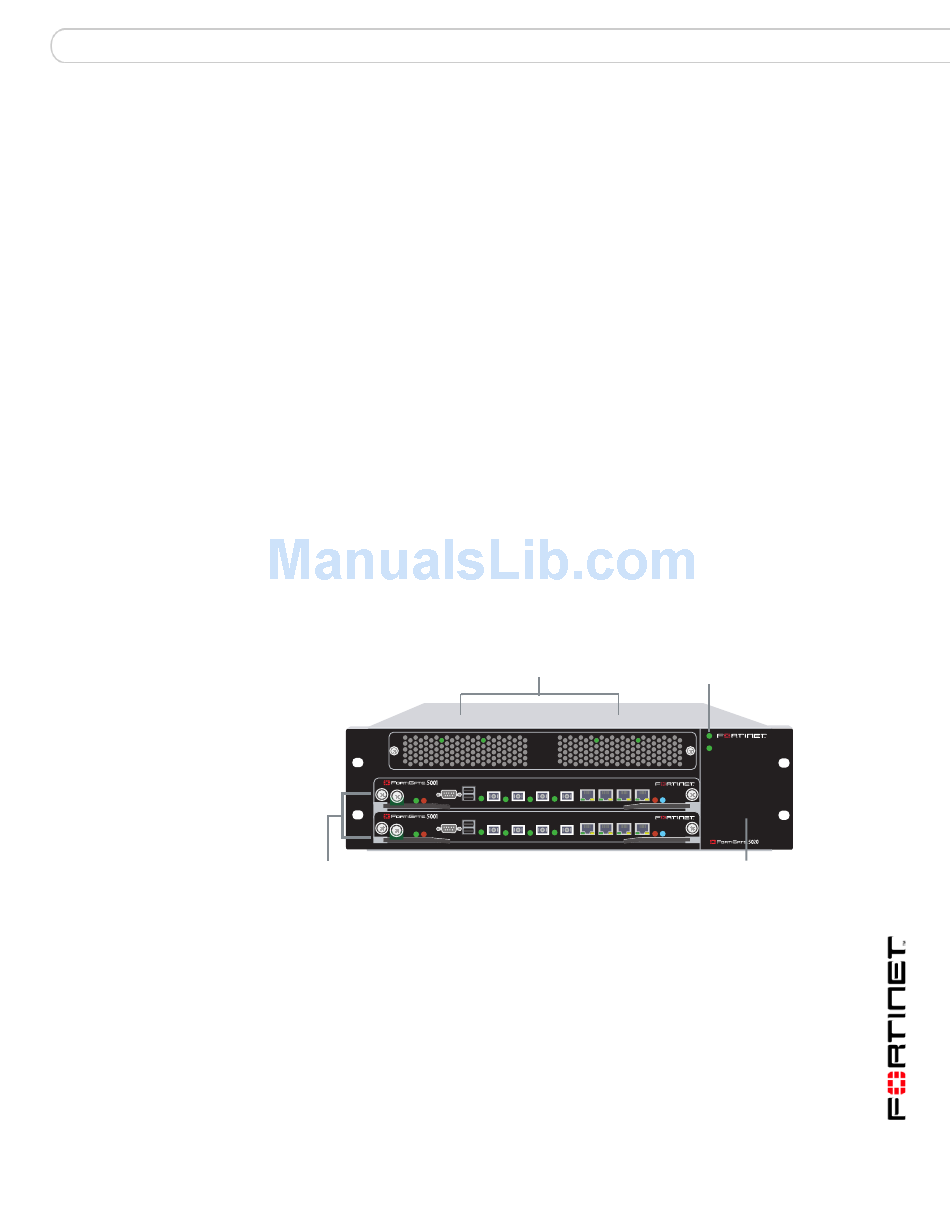

Figure 17: FortiGate-5020 front panel with two FortiGate-5001SX modules
FortiGate-5020/5050
PSU A
CONSOLE
PWR ACC
CONSOLE
PWR ACC
FortiGate-5001SX
modules
Figure 18
shows the back of a FortiGate-5020 chassis. The chassis back panel
includes two redundant AC power connectors and provides access to the hot
swappable cooling fan tray. Each AC power connector includes a 25 Amp circuit
breaker that also functions as the on/off switch for the AC power connector. You
can use the power wire fixtures to secure AC power wires to prevent the power
wires from being accidently disconnected.
Hot-swappable
power supplies
(behind panel)
PSU B
USB
1
2
3
4
5
6
7
8
USB
1
2
3
4
5
6
7
8
Power LEDs
PSU A
PSU B
STA IPM
STA IPM
Hot swappable
cooling fan tray
(accessable from
back panel)
19
