FortiGate-5001SX security system

FortiGate-5001SX security system
FortiGate-5000 Series Quick Guide
01-00000-0294-20060315
The FortiGate-5001SX security system module is a high-performance FortiGate
security system with a total of 8 Gigabit ethernet interfaces. The
FortiGate-5001SX module supports high-end features including 802.1Q VLANs
and multiple virtual domains. You can also configure two or more
FortiGate-5001SX modules to create a high availability (HA) cluster to provide
failover protection and load balancing. HA clustering uses two internal gigabit
interfaces for HA communication through the FortiGate-5000 series chassis
backplane, leaving all eight front panel gigabit interfaces available for network
connections.
The FortiGate-5001SX module includes the following features:
• A total of eight gigabit interfaces
• Four gigabit interfaces that can accept Small Formfactor Pluggable (SFP)
fiber or copper transceivers (interfaces 1, 2, 3, and 4)
• Four 1000Base-T gigabit copper network interfaces (interfaces 5, 6, 7,
and 8)
• DB-9 RS-232 serial console connection
• USB connector
• Mounting hardware
• LED status indicators
The FortiGate-5001SX module comes supplied with four fiber or four copper SFP
transceivers. Before you can connect FortiGate-5001SX interfaces 1 to 4, you
must insert the SPF transceivers into the FortiGate-5001SX front panel cage slots
numbered 1 to 4.

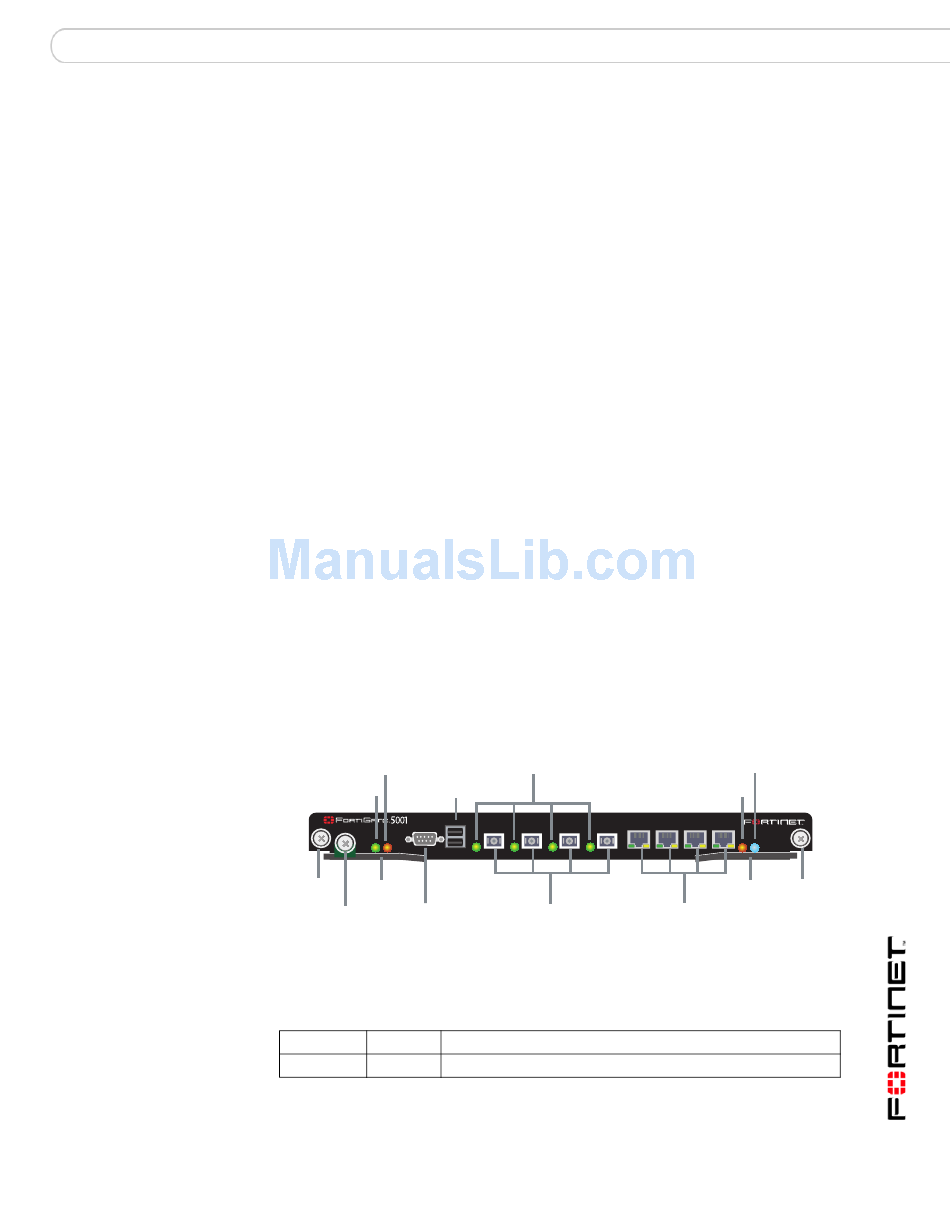

Figure 19: FortiGate-5001SX front panel
Flash Disk
Access
Power
USB
USB
CONSOLE
PWR ACC
Mounting
Extraction
Knot
Lever
RS-232
Locking
Serial
Screw
Table 1 lists and describes the FortiGate-5001SX module LEDs.
Table 1: FortiGate-5001SX LEDs
LED State Description
PWR Green The FortiGate-5001SX module is powered on.
Link/Traffic
1 2 3 4 5 6
1 2 3 4 5 6 7 8
SFP Gigabit fiber Gigabit Copper
or copper
Module
Position
Status
7 8
STA IPM
Mounting
Extraction
Knot
Lever
21
