Normally, because the jumpers are factory set, you do not have to change them.
However, if you are moving a FortiGate-5001FA2 from a FortiGate-5140 or
FortiGate-5050 to a FortiGate-5020 or the reverse, you need to move the JP3
jumper.
Also, if a new FortiGate-5001FA2 module does not function properly, you should
check the JP3 jumper settings.
Table 7: FortiGate-5001FA2 JP3 jumper settings for each chassis
Chassis Correct JP3
Jumper Setting
FortiGate-5140 pins 2 and 3
FortiGate-5050 pins 2 and 3
FortiGate-5020 pins 1 and 2
Note: If the shelf manager in a FortiGate-5140 or FortiGate-5050 chassis is missing or not
functioning, FortiGate-5001FA2 modules with JP3 jumper connecting pins 2 and 3 will not
start up. To operate FortiGate-5001FA2 modules in a FortiGate-5140 or FortiGate-5050
chassis without a shelf manager, set the JP3 jumper to connect pins 1 and 2.

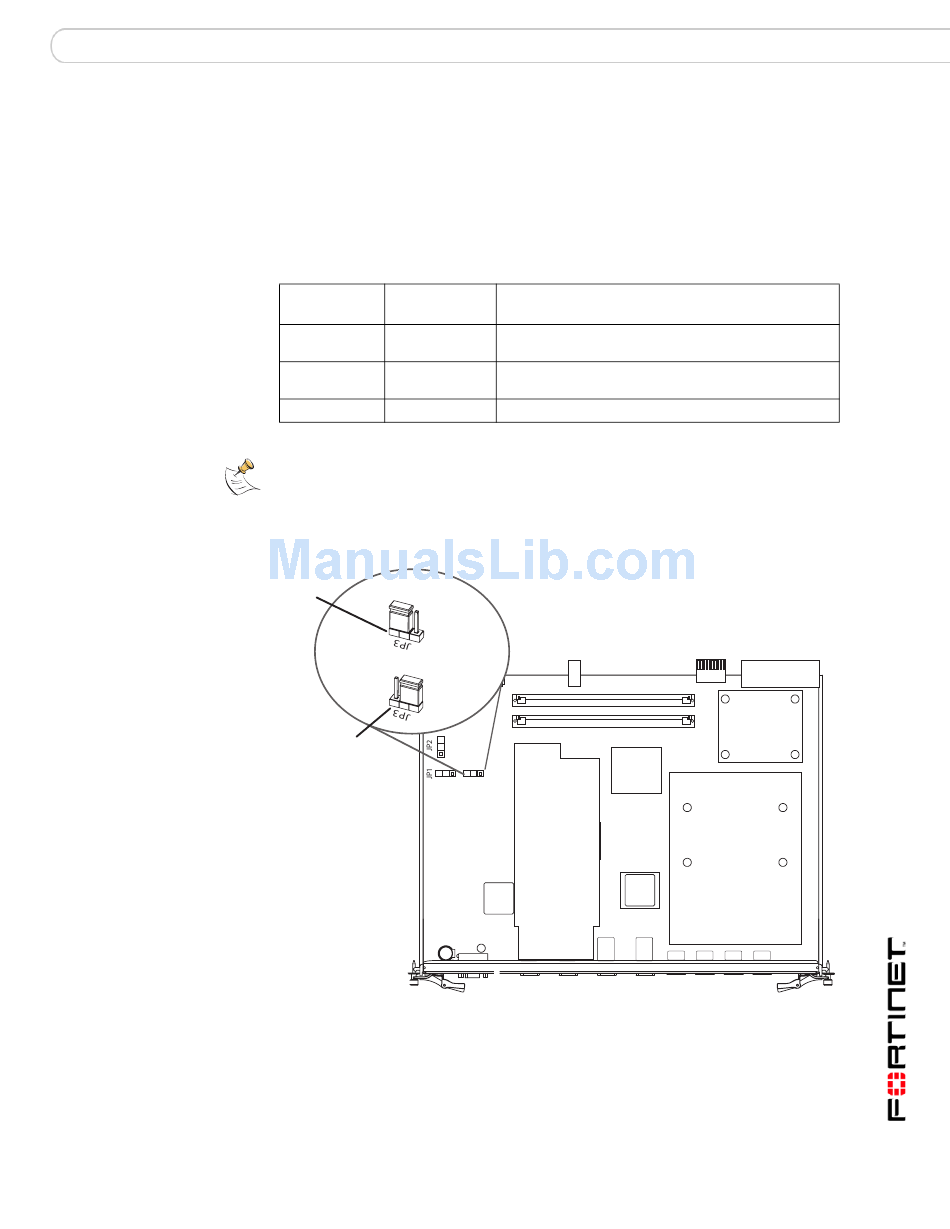

Figure 23: FortiGate-5001FA2 jumper positions
Pins 2 and 3
5050 and 5140 chassis
5020 chassis
Pins 1 and 2
Result of wrong jumper setting
Shelf manager cannot find FortiGate-5001FA2
module. No chassis information available
Shelf manager cannot find FortiGate-5001FA2
module. No chassis information available
FortiGate-5001FA2 module will not start up.
JP3
Front Faceplate
Changing jumper settings
