FortiGate-5001SX security system
Inserting a FortiGate-5001SX module into a chassis
FortiGate-5000 Series Quick Guide
01-00000-0294-20060315
Normally, because the jumpers are factory set, you do not have to change them.
However, if you are moving a FortiGate-5001SX from a FortiGate-5140 or
FortiGate-5050 to a FortiGate-5020 or the reverse, you need to move the JP3
jumper.
Table 3: FortiGate-5001SX JP3 jumper settings for each chassis
Chassis Correct JP3
Jumper Setting
FortiGate-5140 pins 2 and 3
FortiGate-5050 pins 2 and 3
FortiGate-5020 pins 1 and 2

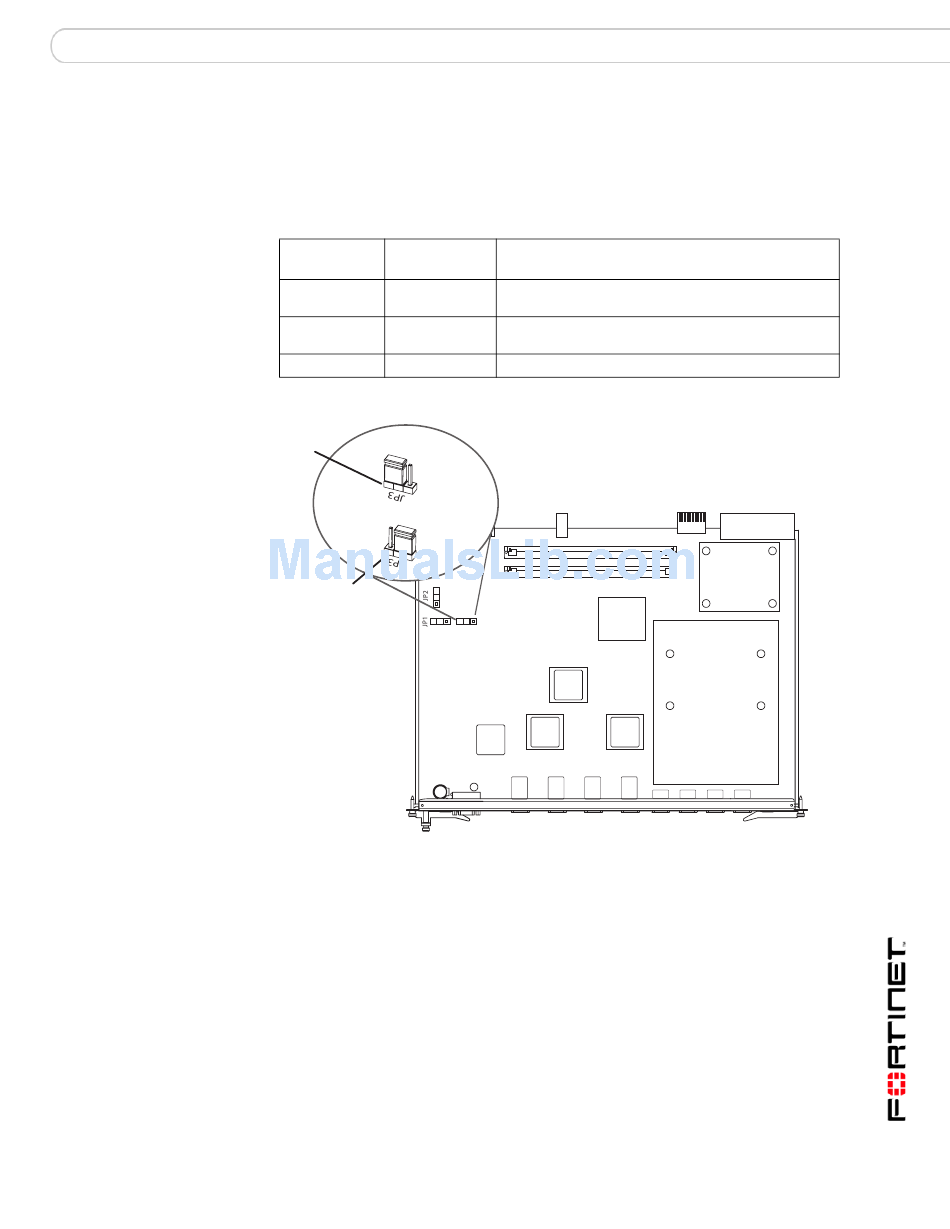

Figure 20: FortiGate-5001SX jumper positions
Pins 2 and 3
5050 and 5140 chassis
5020 chassis
Pins 1 and 2
The FortiGate-5001SX module left extraction lever contacts to a hidden power
switch. The module must be fully installed in a chassis slot and this extraction
lever must be closed and locked for the FortiGate-5001SX module to receive
power and operate normally. If the FortiGate-5001SX module is not receiving
power, the IPM LED glows blue and all other LEDs remain off.
Inserting a FortiGate-5001SX module into a chassis
Result of wrong jumper setting
Shelf manager cannot find FortiGate-5001SX module.
No chassis information available
Shelf manager cannot find FortiGate-5001SX module.
No chassis information available
FortiGate-5001SX module will not start up.
JP3
Front Faceplate
