Atdec AWMS-2-D13-C Installation Manual page 9

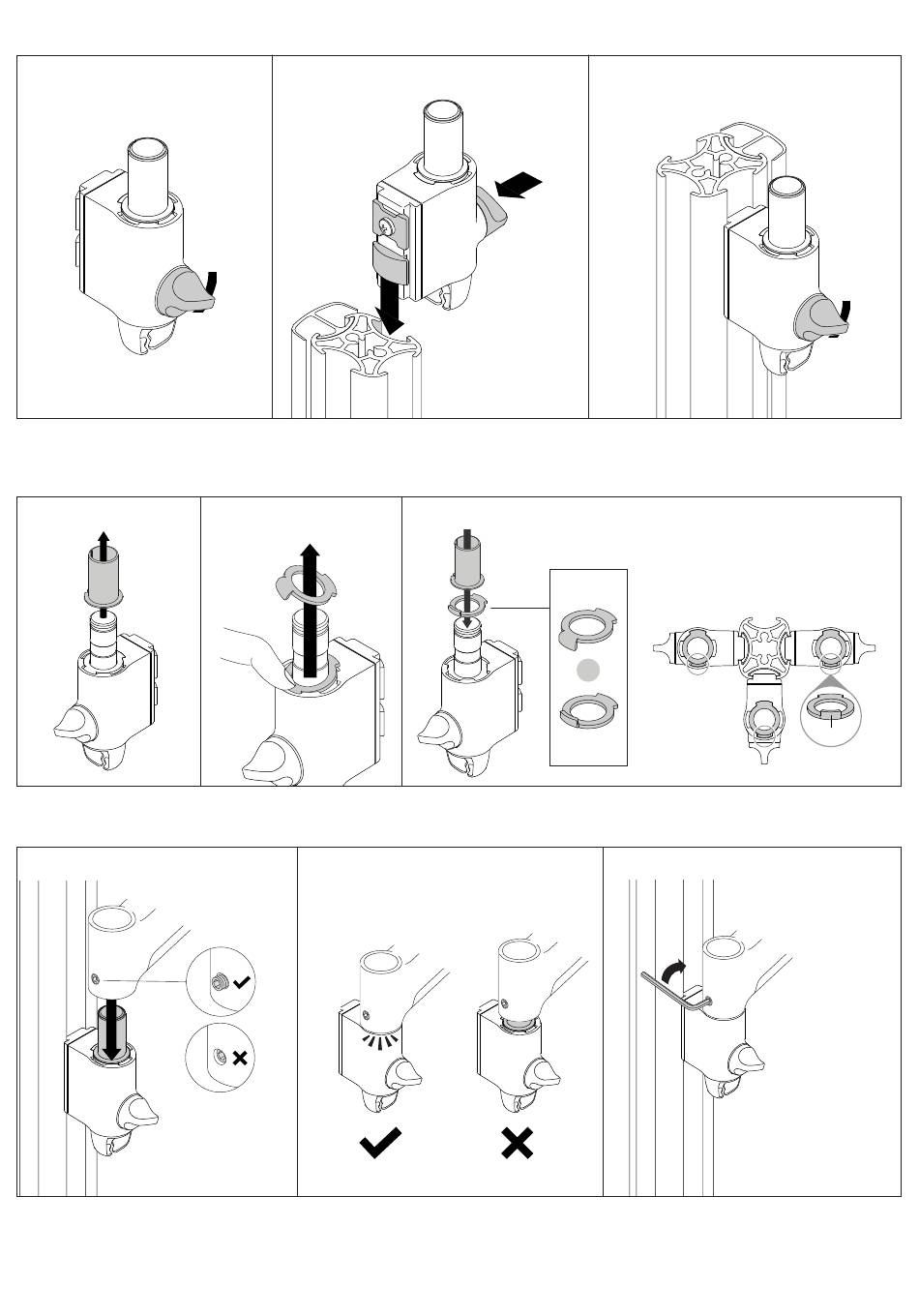

1. Fix Clamp to Post or Wall Channel
1.1 Ensure knob is undone.
2. Set arm rotation to 180° (optional)
2. Remove rotation ring
Note: default arm rotation is set to rotate 360�
2.1 Remove plastic sleeve.
3. Fit AWM Series arm to Post Clamp
3.1 Push arm onto clamp.
Note: Arm sold
separately
No portion of this document or any artwork contained herein should be reproduced in any way without
the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer
reserves the right to alter specifications without notice. ©20180518A - E02
atdec.com | atdec.co.uk | atdec.com.au
1.2 Slide Post Clamp into channel.
2. Slide post clamp into channel
3. Place the rotation ring
in the desired postion
2.2 Remove rotation ring
2. Lift
1. Press
3.2 Ensure arm is fully pushed onto clamp.
2. Ensure arm is fully pushed onto clamp
3. Hold clamp in desired position on post a
knob to lock in place
Push knob to
aid insertion
Tip: push knob
to aid insertion
2.3 Place rotation ring in the desired position.
Default
Position
360°
OR
180°
Flipped
Position
3. Tighten set screw
1.3 Hold clamp in desired position on post
and turn knob to lock in place.
Note: Place the rotation ring
depending on what post channel
the arm will be attached to. The tag
should always face towards the user.
3.3 Tighten joint screw.
AWMS-2-D13-C | Page 9 of 13
AWM-LC Page 2 of 2
Tag
Note: Check the
arm rotation is
Tip: Check the
smooth after
arm rotation i
tightening.
smooth after
tightening.
