Atdec AWMS-2-D13-C Installation Manual page 4

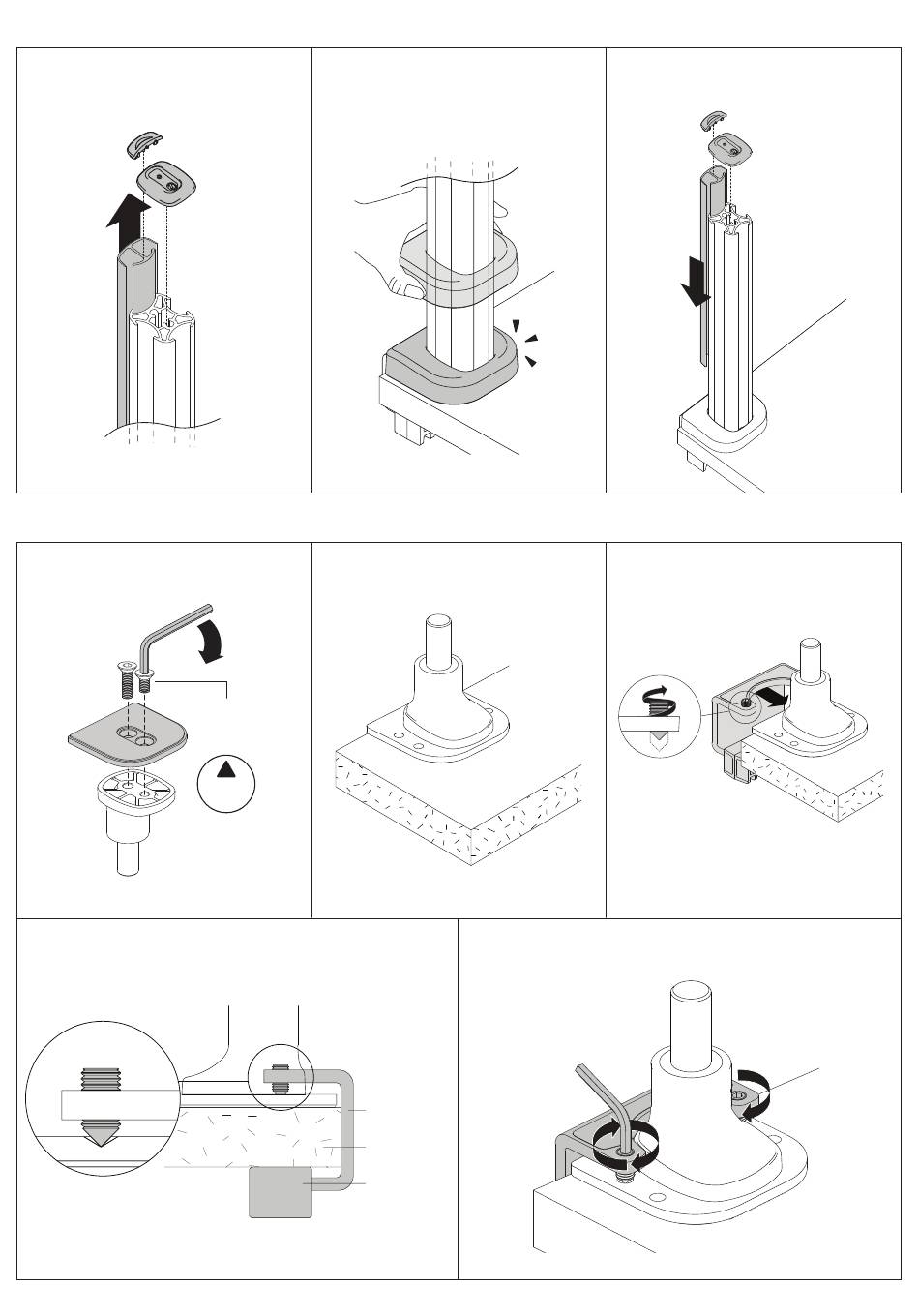

4. Installing the clamp cover to post
4.1 Remove the cable cover by pulling it
straight up and out of the post. Remove
top cap if already installed
5. Base mount installation
5.1 Attach plate to base
5.4 Check the set screws are mounted in position. Also check the
desk clamp bracket is positioned tight up against the mounting
surface edge
M8 x 16mm
Set Screw
4.2 Locate the C Clamp cover over the
post. Guide over the holes in the base
plate and gently apply pressure on the
cover until it clicks into place
5.2 Place the base and plate in desired
location
Fasteners
supplied
with base
!
Tighten
Firmly
Click!
5.5 Tighten the set screws firmly and evenly on both sides of the
desk clamp bracket
Desk Clamp
Bracket
Mounting
surface
Pad
4.3 Re-attach the cable cover by sliding
it into the post channel. Fit the pole and
cover caps back on.
5.3 Slide the bracket onto the base plate
and position screw tips in the indents on
the base plate
Note: You may need to un-screw the set
screws out of the plate using the allen key
!
AWMS-2-D13-C | Page 4 of 13
AWM-FC Page 3 of 4
