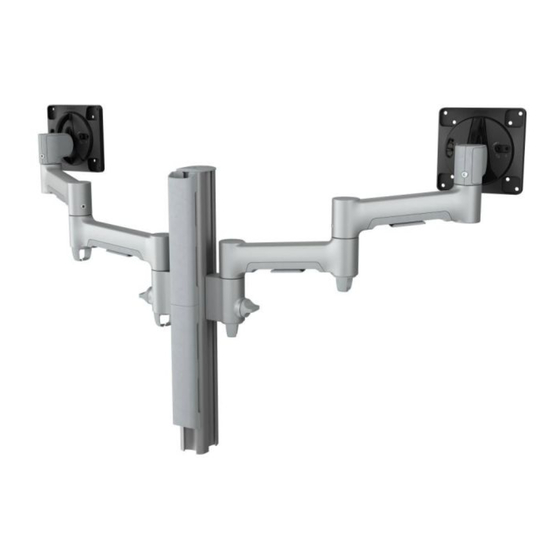

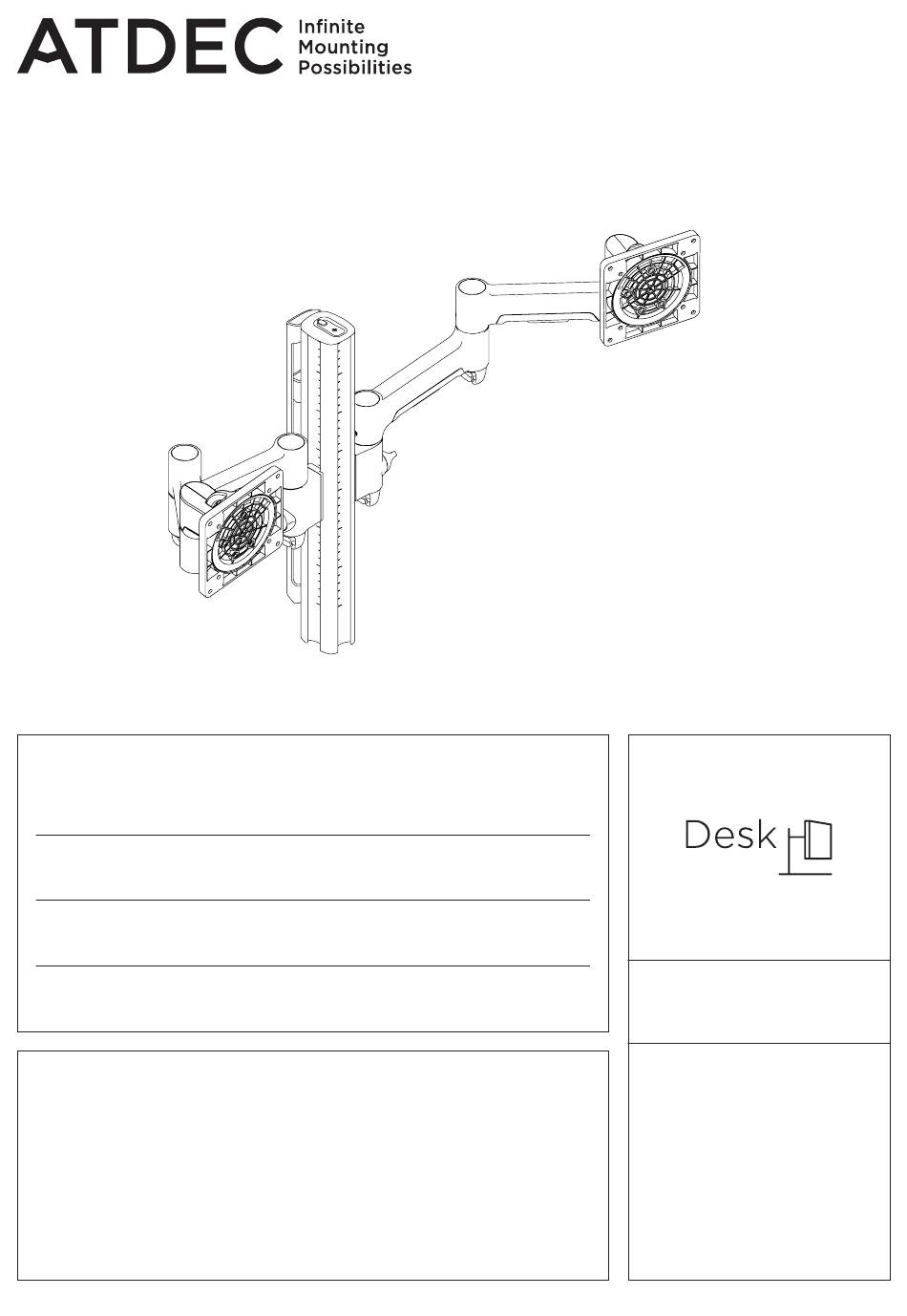

Dual Monitor Mount on 400 Post
INDEX
Component Checklist
AWM 400 Post with Guide Marks
AWM-P40G
AWM 460 Arm
AWM-A46T
Cable Management
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! Do not remove or throw away the plastic sleeve on the arm link and channel clamp.
! The manufacturer accepts no responsibility for incorrect installation.
! This product is not suitable for outdoor use or mobile applications
! Do not over-tighten screws and adjustment points on product.
! Periodic adjustment to counterbalance and tilt tension may be required.
! VESA mounted accessories (such as mini PC brackets and mounts), offset VESA
locations, and unevenly weighted monitors (relative to the center of the VESA
mounting interface) exert additional leverage that can exceed the capacity of the
mount even though the monitor weight may be within the stated range. Please
contact Atdec if you would like further information.
Page 2
Installation Instructions
Page 3
Installation Instructions
Page 4
Page 6
Installation Guide
AWMS-2-4640
REQUIRED TOOLS
• Phillips Head Screwdriver
CAPACITY
Flat Monitors
0 - 12kg (0 - 26.5lbs)
Curved Monitors*
0 - 10kg (0 - 22lbs)
*Curved monitors with an overall
depth up to 140mm (5.5").
Monitor weight should be within
the weight range of all modular
elements that make up the complete
monitor mounting solution.
AWMS-2-4640 Page 1 of 6
Advertisement
Related Manuals for Atdec AWM 460 Arm
Summary of Contents for Atdec AWM 460 Arm
- Page 1 Please elements that make up the complete contact Atdec if you would like further information. monitor mounting solution. AWMS-2-4640 Page 1 of 6...
-
Page 2: Component Checklist
Below are the fixing options available for this solution. Fixing installation guides are supplied with the product or can be accessed through Atdec’s website, along with detailed product specifications. NOTE: Chosen desk fixing must be added to this solution code when ordering. - Page 3 1. Attach post to fixing 1.1 Follow the installation BOLT F CLAMP C CLAMP HEAVY DUTY GROMMET THROUGH F CLAMP CLAMP guide provided with AWM-FF AWM-FC your fixing to attach it AWM-FB AWM-FH AC-GC to the post and fit it to the worksurface.
- Page 4 4. Attach arm onto channel clamp 4.1 Push lower link onto shaft. 4.2 Ensure arm is fully pushed 4.3 Tighten joint screw. onto shaft. NOTE: IMPORTANT Check Ensure plastic the arm sleeve is fitted rotation is on post clamp. smooth after tightening.
- Page 5 7. (OPTIONAL) Adjust tilt tension 7.1 If required, adjust the tilt tension using the 4mm hex key. NOTE: Support monitor while adjusting. DROOPS FORWARD HOLDS POSITION TIGHTEN LOOSEN 8. (OPTIONAL) Adjust rotation tension 8.1 Adjust the rotation tension using 4mm hex key. Adjustment may only be required for ultrawide monitors.
- Page 6 No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. ©20240604...
