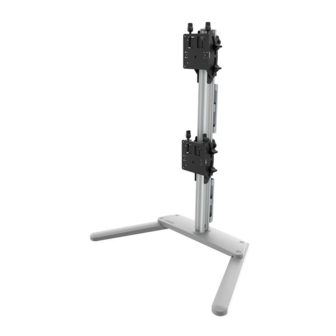

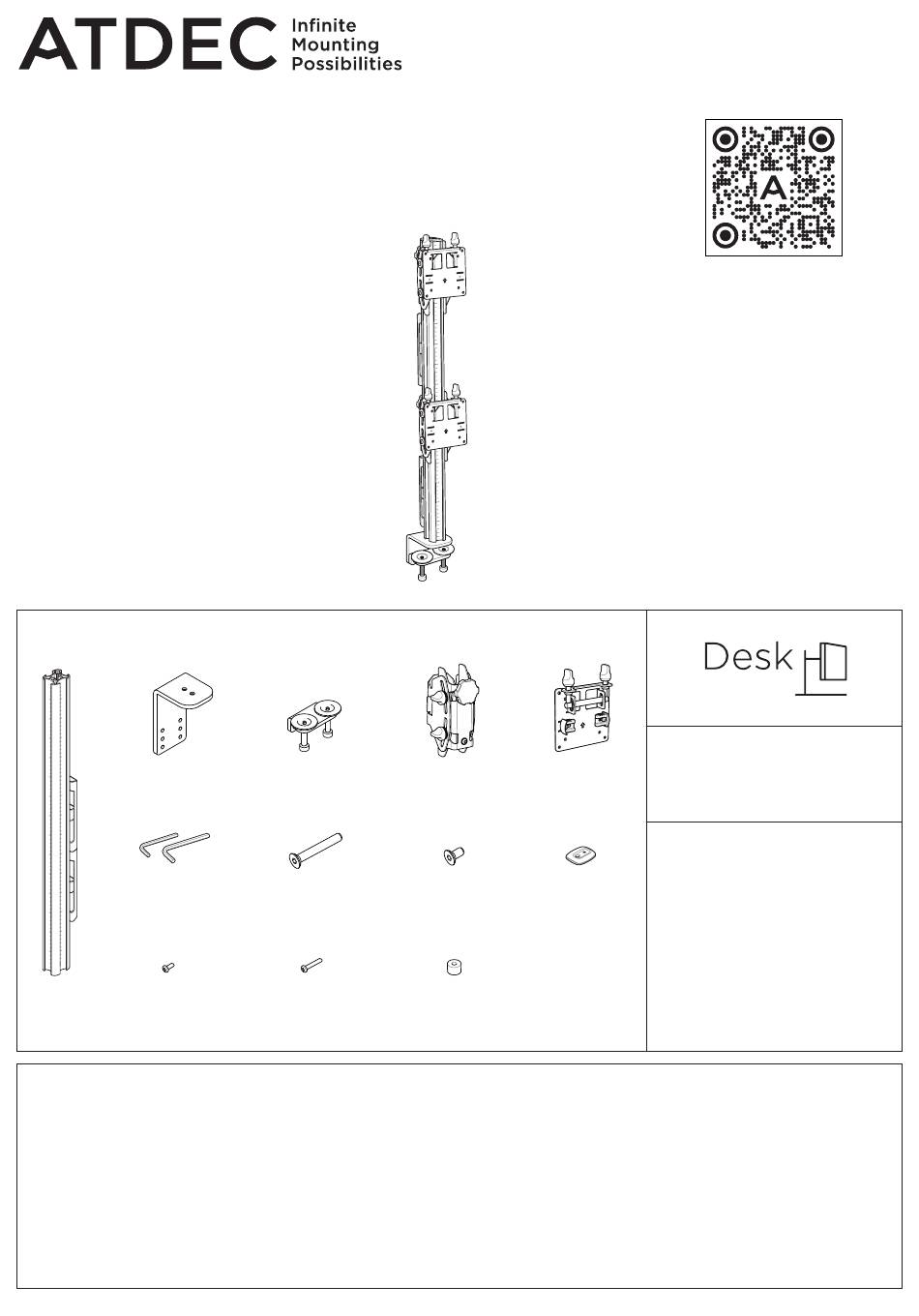

Post Mounted Heavy Duty
Dual Vertical Monitor Mount
Heavy Duty F Clamp
COMPONENT CHECKLIST
B
Upper Clamp
(x1)
F
4mm/5mm
Hex Key
(x1 each)
A
J
Post
M4x10mm Screw
(x1)
(x8)
IMPORTANT INFORMATION
! Product should only be assembled and used as per these installation instructions.
! The manufacturer accepts no responsibility for incorrect installation.
! Each bracket supports a maximum weight as per above capacity specification.
! Avoid applying downward load to corners of display.
! Product must only be installed on a solid work surface capable of supporting the weight of all equipment being mounted.
! This product is not suitable for outdoor use.
! Do not use this product for mobile applications.
! VESA mounted accessories (such as mini PC brackets and mounts), and offset VESA locations exert additional leverage that can
exceed the capacity of the mount even though the monitor weight may be within the stated range. Please contact Atdec if you
would like further information.
! WARNING! Death or serious injury may occur if a child climbs on or tips product.
B
Bridge
(x1)
C
Lower Clamp
(x1)
G
M8x60mm
M8x16mm
Screw
(x2)
K
M4x20mm Screw
10mm Spacer
(x8)
C
Leg
(x2)
D
E
Bracket
VESA Plate
(x2)
(x2)
H
I
Post Cap
Screw
(x1)
(x2)
L
(8x)
Installation Guide
AWMS-2-BT75-H
Scan to access
more information
REQUIRED TOOLS
• Phillips Head Screwdriver
CAPACITY
(per monitor)
Flat Monitor
4.5 - 25kg (10 - 55lb)
Curved Monitor
4.5 - 18kg (10 - 40lb)
Display Size
24" - 55"
300mm (12") max overall
display depth
AWMS-2-BT75-H Page 1 of 4
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Atdec AWMS-2-BT75
Summary of Contents for Atdec AWMS-2-BT75
- Page 1 ! VESA mounted accessories (such as mini PC brackets and mounts), and offset VESA locations exert additional leverage that can exceed the capacity of the mount even though the monitor weight may be within the stated range. Please contact Atdec if you would like further information.
- Page 2 4.1 Tilt bracket must only be attached with display facing the front of the mounting surface. VIEW FROM ABOVE BACK of desk INNER GUIDE in rear post channel WORK WORK WORK WORK SURFACE SURFACE SURFACE SURFACE FRONT AWMS-2-BT75-H Page 2 of 4...
- Page 3 4mm hex key can be used to reduce tilt down to desired position. friction (for light screen) or increase tilt friction (for heavy screen). WARNING: Ensure clips closed before tilting TILT KNOBS Clockwise = More friction Anti-clockwise = Less friction AWMS-2-BT75-H Page 3 of 4...
- Page 4 No portion of this document or any artwork contained herein should be reproduced in any way without Please Recycle the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. ©20230120 AWMS-2-BT75-H Page 4 of 4...
