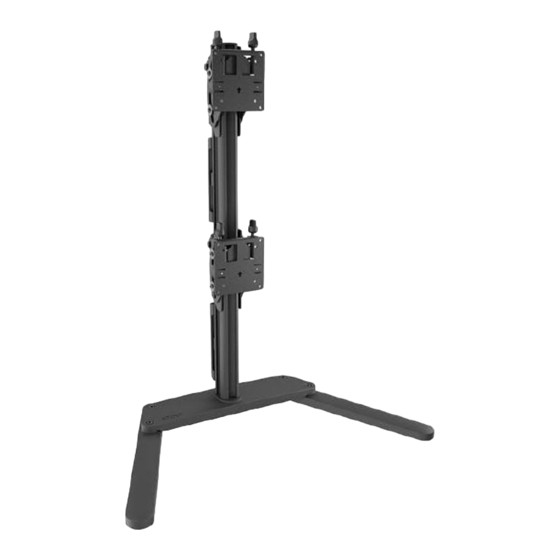

Atdec AWMS-2-BT75-FS Installation Manual

Freestanding Heavy Duty
Dual Vertical Monitor Mount
COMPONENT CHECKLIST
B
Bridge
(x1)
F
4mm/6mm
Hex Key
(x1 each)
A K
Post Post Cap
(x1) (x1)
IMPORTANT INFORMATION
! Product should only be assembled and used as per these installation instructions.
! The manufacturer accepts no responsibility for incorrect installation.
! Each Bracket supports a maximum weight as per above capacity specification.
! This product is not suitable for outdoor use.
! Do not use this product for mobile applications.
! Do not move mount with displays attached.
! VESA mounted accessories (such as mini PC brackets and mounts), and offset VESA locations exert additional leverage that can
exceed the capacity of the mount even though the monitor weight may be within the stated range. Please contact Atdec if you
would like further information.
! WARNING! Death or serious injury may occur if a child climbs on or tips product. Anchor product if applicable. Never place
product in an unstable location.
C
Leg
(x2)
G H
M8x30mm M8 Nut
Cap Screw (x4)
(x4)
L M
M4x10 Screw M4x20 Screw
(x8) (x8)
D E
Bracket VESA Plate
(x2) (x2)
I J
M8 Washer M8x80
(x2) Cap Screw
(x2)
N
10mm Spacer
(8x)
Installation Guide
AWMS-2-BT75-FS
Scan to access
more information
REQUIRED TOOLS
• Phillips Head Screwdriver
CAPACITY
Flat Monitor
4.5 - 25kg (10 - 55lb)
Curved Monitor
4.5 - 18kg (10 - 40lb)
Display Size
24" - 55"
300mm (12") max overall
display depth
AWMS-2-BT75-FS Page 1 of 4
