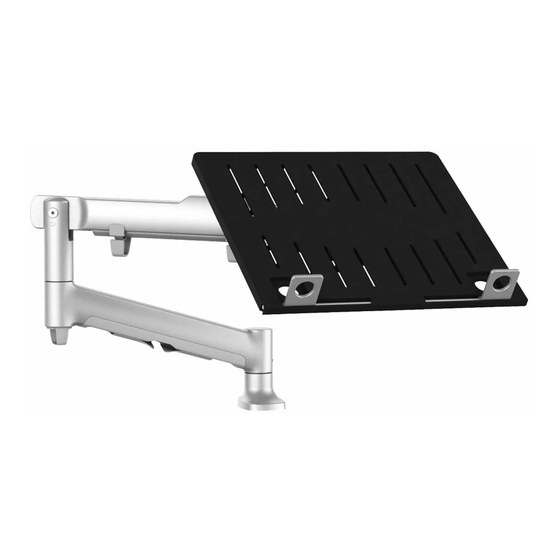

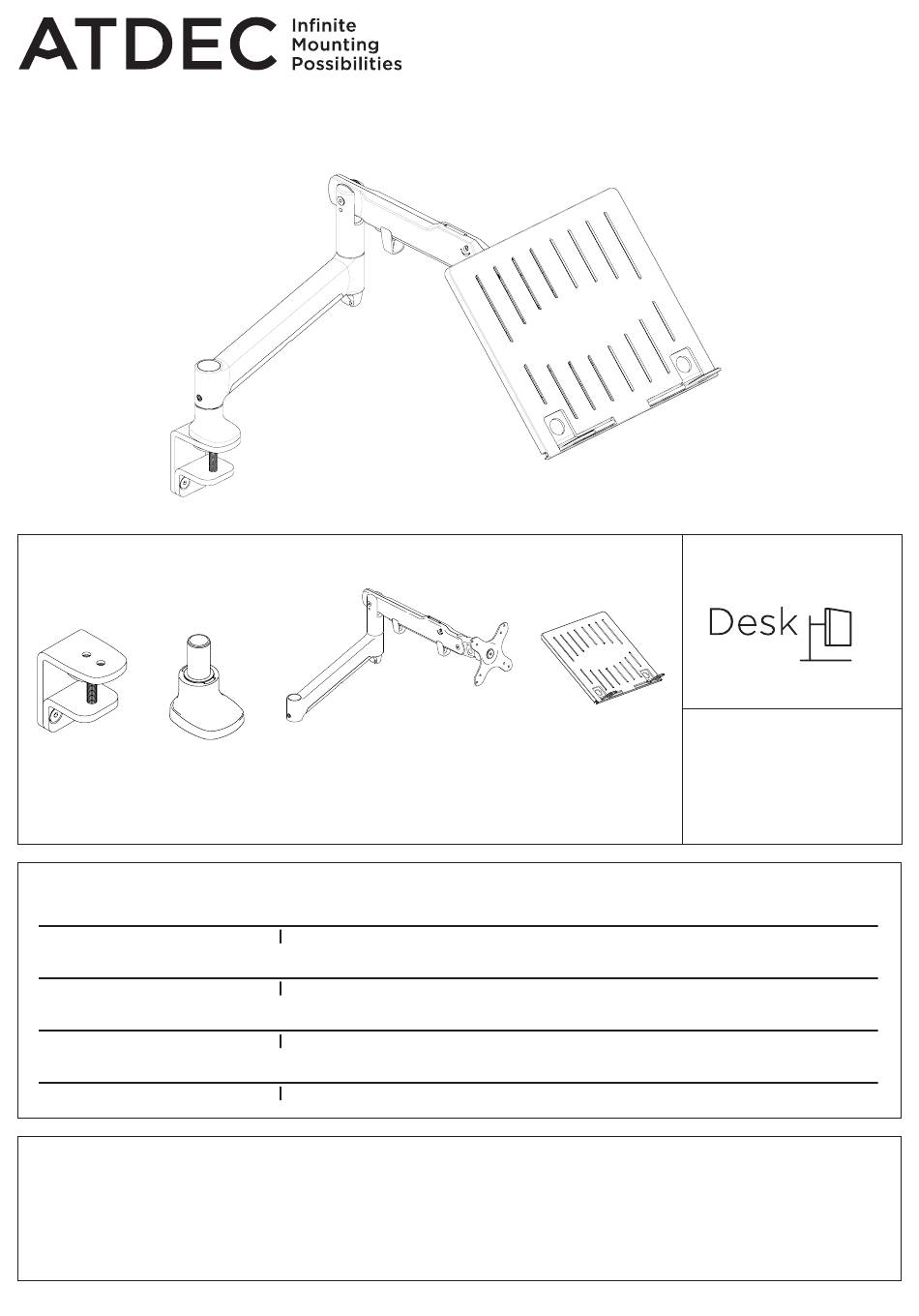

AWM Dynamic Notebook Arm
COMPONENT CHECKLIST
AWM-FF
AWM-LB
F Clamp
Base
(x1)
CONTENTS
F Clamp
Page 2
Base
Page 3
Dynamic Arm
Page 4
AWM Notebook Tray
Page 4
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! Do not remove/ throw away the plastic cap on the base.
! This product is compatible with Atdec AWM Series products.
! Curved monitors, deep devices (such as all-in-one PCs) and offset VESA locations exert additional leverage that can exceed
the capacity of the mount even though the monitor weight may be within the stated range.
! The manufacturer accepts no responsibility for incorrect installation.
AWM-AD
Dynamic
(x1)
AWM-FF
Component Checklist + Clamp Installation
AWM-LB
Component Checklist + Base Installation
AWM-AD
Component Checklist + Arm Installation
AWM-HN
Component Checklist + Tray Installation
Arm
Notebook Tray
(x1)
Installation Guide
AWMS-NDB
REQUIRED TOOLS
AWM-HN
• Phillips Head
AWM
Screwdriver
(x1)
AWMS-NDB-F Page 1 of 7
Advertisement
Related Manuals for Atdec AWM Series
Summary of Contents for Atdec AWM Series
- Page 1 ! Do not remove/ throw away the plastic cap on the base. ! This product is compatible with Atdec AWM Series products. ! Curved monitors, deep devices (such as all-in-one PCs) and offset VESA locations exert additional leverage that can exceed the capacity of the mount even though the monitor weight may be within the stated range.
-
Page 2: Component Checklist
F Clamp AWM-FF COMPONENT CHECKLIST Upper Clamp Lower Clamp Screw M8 x 16mm 5mm Allen key (x1) (x1) (x2) (x1) 1. Attach base to upper clamp Fasteners supplied with base 2. Attach lower clamp to upper clamp 2.1 Measure the worksurface thickness and 2.2 If using inverted 2.3 Attach lower clamp to upper choose the suitable lower clamp position... - Page 3 Base AWM-LB COMPONENT CHECKLIST Base (x1) Screw M8 x 16mm Screw M8 x 30mm (x1) (x1) 1. Attach Base to Fixing Supplied Also Compatible AC-GC Bolt F Clamp HD F Clamp C Clamp Grommet Through Clamp 1.1 Follow the F Clamp installation guide on pages 2 of this AC-GC...
- Page 4 Dynamic Arm AWM-AD COMPONENT CHECKLIST Screw Screw WEIGHT RANGE M4x25mm M4x16mm (x4) (x4) Flat Monitors 0 - 9kg (0 - 20lbs) Curved Monitors 0 - 6kg Display (0 - 13.5lbs) Screw Spacer (x1) M4x12mm (x4) Display weight should be within the weight range (x4) of all modular elements that make up the complete...
- Page 5 2. Fit arm onto Base 2.1 Push arm onto shaft. 2.2 Ensure arm is fully pushed onto shaft. 2.3 Tighten joint screw. Note: Check the arm rotation is smooth after tightening. 3. Mount Notebook Tray onto arm 3.1 Insert Notebook Tray into 3.2 Ensure that the Notebook Tray is seated 3.3 Push the lever down the display arm...
- Page 6 6. Adjust arm tension 6.1 To accurately set the tension of the arm, position 6.2 Use the allen key to adjust the arm tension to the weight of the device. Follow steps 6.3 to 6.5 to set the tension. the device at 90 degrees 90°...
- Page 7 No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. ©20220509B...
