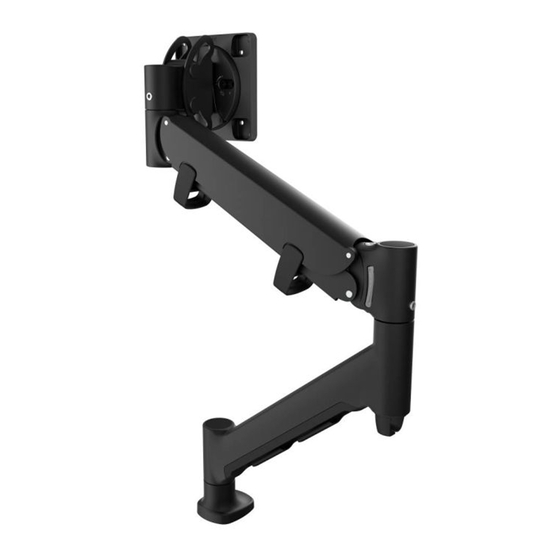

Fortis Monitor Arm

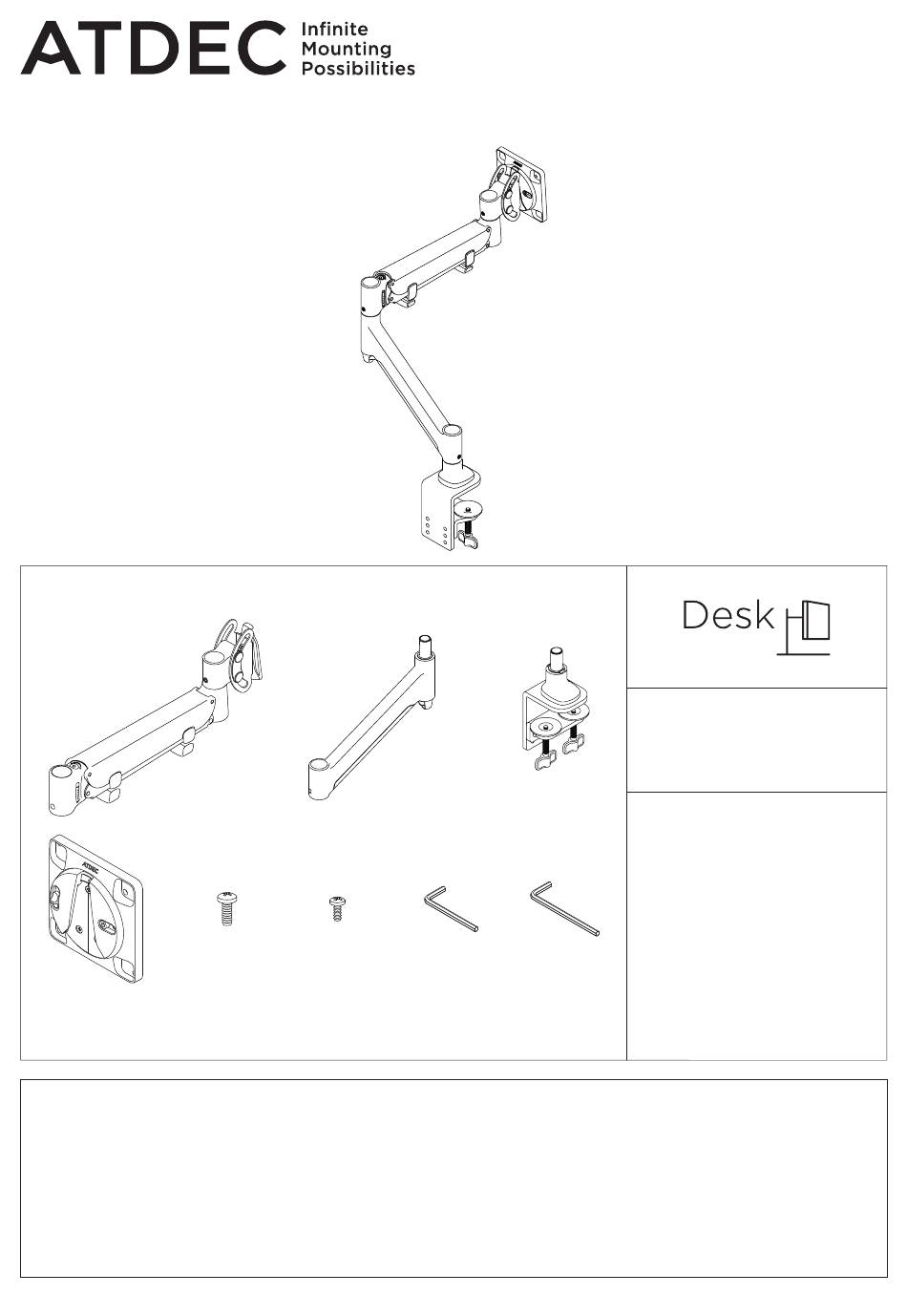

COMPONENT CHECKLIST
A
Heavy Duty
Dynamic Link
(x1)
D
VESA Head
M4x10mm
(x1)
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! Do not remove or throw away the plastic sleeve on the arm links and base.
! The manufacturer accepts no responsibility for incorrect installation.
! This product is not suitable for outdoor use or mobile applications.
! Do not over-tighten screws and adjustment points on product.
! Periodic adjustment to counterbalance and tilt tension may be required.
! VESA mounted accessories (such as mini PC brackets and mounts), offset VESA locations, and unevenly weighted monitors
(relative to the center of the VESA mounting interface) exert additional leverage that can exceed the capacity of the mount
even though the monitor weight may be within the stated range. Please contact Atdec if you would like further information.
Lower Angled
E
F
Screw
Security
Screw
(x4)
(x1)
B
C
Heavy Duty
Link
F Clamp
(x1)
(x1)
G
H
4mm
5mm
Hex Key
Hex Key
(x1)
(x1)
Installation Guide
AWMS-HXB-H--V
REQUIRED TOOLS
• Phillips Head Screwdriver
CAPACITY
Flat Monitors
6 - 16kg
(13.5 - 35lbs)
Curved Monitors
6 - 12kg
(13.5 - 26.5lbs)
Monitor weight should be within the
weight range of all modular elements
that make up the complete monitor
mounting solution.
AWMS-HXB-H--V Page 1 of 6

Advertisement

loading
Need help?

Need help?

Do you have a question about the Fortis and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Atdec Fortis

  • Page 1 (relative to the center of the VESA mounting interface) exert additional leverage that can exceed the capacity of the mount even though the monitor weight may be within the stated range. Please contact Atdec if you would like further information.
  • Page 2 Alternative desk fixing options Alternative AWM Fixing options Sold separately Follow the installation guide provided with the preferred C Clamp Grommet fixing to attach the Base and fit it to the worksurface. Clamp AWM-FC AC-GC 1. Attach Clamp to Desk 1.1 Measure the worksurface thickness and choose the suitable lower clamp position.
  • Page 3 2. (OPTIONAL) Set arm rotation to 360° NOTE: Rotation is set to 180° by default. 2.1 Remove plastic sleeve. 2.2 To remove rotation ring press 2.3 Replace rotation ring in the desired orientation and replace down on front edge and lift. plastic sleeve.
  • Page 4 5. Attach VESA head to monitor 5.1 Check VESA mounting compatibility of monitor. 5.2 Attach VESA head onto monitor with provided screws. (Alternatively, use fasteners NOTE: For other sizes, use a suitable adaptor plate (sold separately). specified by the monitor manufacturer). 100mm 75mm NOTE: Ensure screw length suits the monitor VESA mounting holes.
  • Page 5 7. Adjust tilt tension 7.1 Use the knob to tighten and loosen the tilt tension to suit your monitor weight. NOTE: Always support the monitor whilst adjusting to prevent it from falling forward sharply. Loosen IMPORTANT Loosen If extra tilt Tighten tension is required for your...
  • Page 6 No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. ©20240221...
