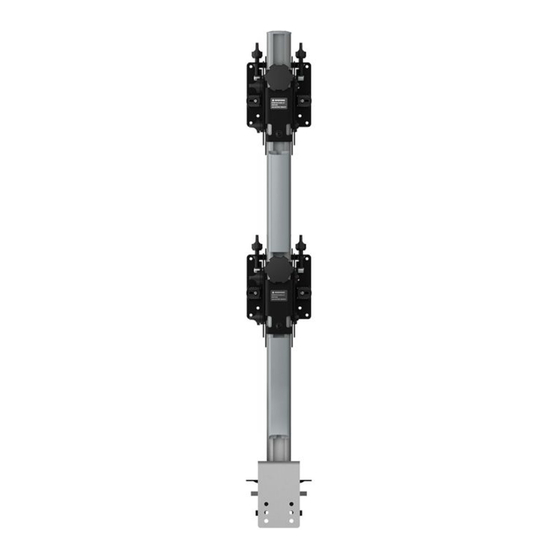

Atdec AWMS-2-BT75-H Installation Manual

Post Mounted Heavy Duty
Dual Vertical Monitor Mount
Heavy Duty F Clamp

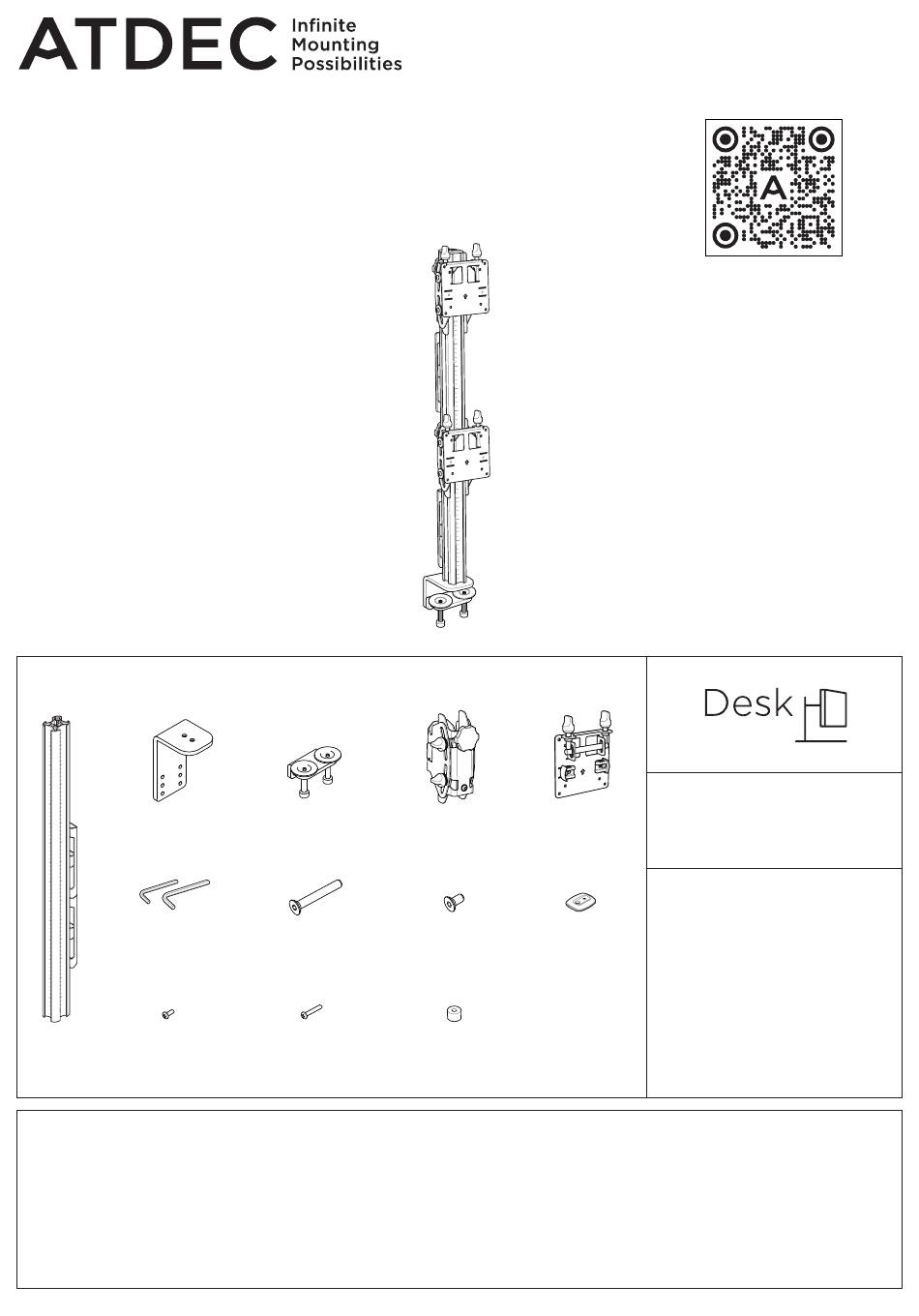

COMPONENT CHECKLIST
B
Upper Clamp
(x1)
F
4mm/5mm
Hex Key
(x1 each)
A J
Post M4x10 Screw
(x1) (x8)
IMPORTANT INFORMATION
! Product should only be assembled and used as per these installation instructions.
! The manufacturer accepts no responsibility for incorrect installation.
! Each Bracket supports a maximum weight as per above capacity specification.
! This product is not suitable for outdoor use.
! Do not use this product for mobile applications.
! VESA mounted accessories (such as mini PC brackets and mounts), and offset VESA locations exert additional leverage that can
exceed the capacity of the mount even though the monitor weight may be within the stated range. Please contact Atdec if you
would like further information.
B
Bridge
(x1)
C
Bracket
Lower Clamp
(x1)
G
M8x60mm M8x16
Screw Screw
(x2)
K
M4x20 Screw 10mm Spacer
(x8)
C
Leg
(x2)
D E
VESA Plate
(x2) (x2)
H
I
Post Cap
(x1)
(x2)
L
(8x)
Installation Guide
AWMS-2-BT75-H
Scan to access
more information
REQUIRED TOOLS
• Phillips Head Screwdriver
CAPACITY
Flat Monitor
4.5 - 25kg (10 - 55lb)
Curved Monitor
4.5 - 18kg (10 - 40lb)
Display Size
24" - 55"
300mm (12") max overall
display depth
AWMS-2-BT75-H Page 1 of 4
