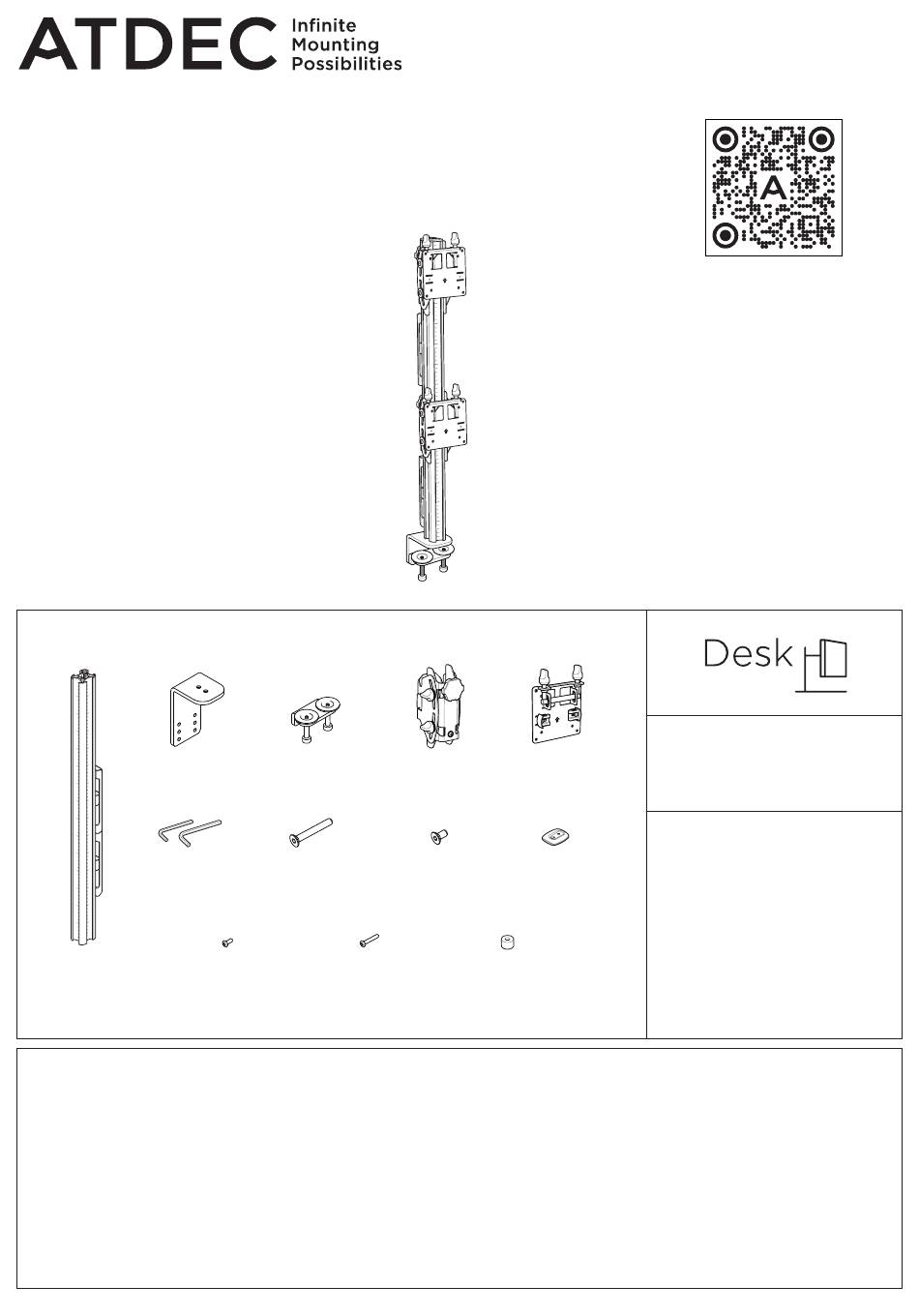

Post Mounted Heavy Duty
Dual Vertical Monitor Mount
Heavy Duty F Clamp
COMPONENT CHECKLIST
B
Upper Clamp
(x1)
F
4mm/5mm
Hex Key
(x1 each)
A
Post
M4x10mm Screw
(x1)
IMPORTANT INFORMATION
! Product should only be assembled and used as per these installation instructions.
! The manufacturer accepts no responsibility for incorrect installation.
! Each bracket supports a maximum weight as per above capacity specification.
! Avoid applying downward load to corners of display.
! Product must only be installed on a solid work surface capable of supporting the weight of all equipment being mounted.
! This product is not suitable for outdoor use.
! Do not use this product for mobile applications.
! Curved monitors, deep devices (such as all-in-one PCs), VESA mounted accessories (such as mini PC brackets and mounts), offset
VESA locations, and unevenly weighted monitors (relative to the center of the VESA mounting interface) exert additional leverage
that can exceed the capacity of the mount even though the monitor weight may be within the stated range. Please contact Atdec if
you would like further information.
! WARNING! Death or serious injury may occur if a child climbs on or tips product.
C
Lower Clamp
(x1)
G
M8x60mm
Screw
(x2)
J
K
M4x20mm Screw
(x8)
(x8)
B
C
Bridge
Leg
(x1)
(x2)
D
E
Bracket
VESA Plate
(x2)
(x2)
H
I
M8x16mm
Post Cap
Screw
(x1)
(x2)
L
10mm Spacer
(8x)
Installation Guide
AWMS-2-BT75-H
Scan to access
more information
REQUIRED TOOLS
• Phillips Head Screwdriver
CAPACITY
(per monitor)
Flat Monitor
4.5 - 25kg (10 - 55lb)
Curved Monitor
4.5 - 18kg (10 - 40lb)
Display Size
24" - 57"
340mm (13.4") max overall
curved display depth
AWMS-2-BT75-H Page 1 of 4
Advertisement
Related Manuals for Atdec AWMS-2-BT75-H-B
Summary of Contents for Atdec AWMS-2-BT75-H-B
- Page 1 VESA locations, and unevenly weighted monitors (relative to the center of the VESA mounting interface) exert additional leverage that can exceed the capacity of the mount even though the monitor weight may be within the stated range. Please contact Atdec if you would like further information.
- Page 2 1. Assemble post to clamp 1.2 Measure the worksurface 1.1 Attach post to upper 1.3 Attach lower clamp to upper clamp using the M8x60mm thickness and choose the clamp in the suitable position using the screws and 5mm hex key. suitable lower clamp position.
- Page 3 4.2 Line up the inner guide 4.3 Firmly tighten hand knob at on rear of bracket with rear chosen height. Arrow side channel on post. towards user Ensure height is sufficient for Slide inner guide into channel, display to clear desk once in place. then lower bracket.
- Page 4 No portion of this document or any artwork contained herein should be reproduced in any way without Please Recycle the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. ©20230926 AWMS-2-BT75-H Page 4 of 4...
