3.3 PAV-VOMVP1x

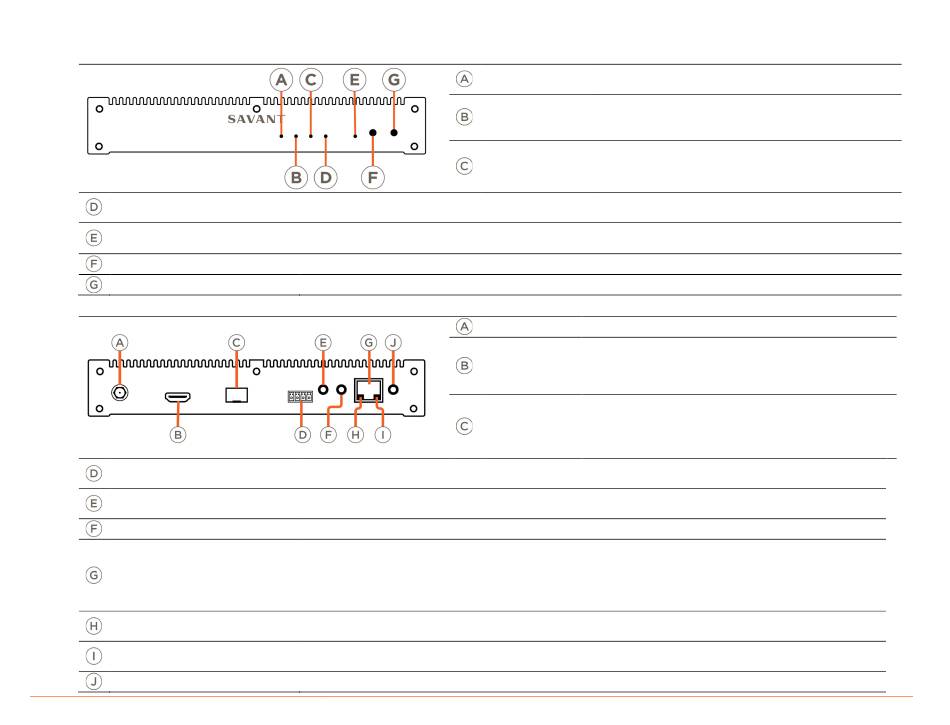

Front Panel
Video LED
Power LED
P1
RSVD
Rear Panel
RS-232
IR OUT
IR IN
LAN (C)
Link LED
Link Activity LED
Audio Out
Savant IP Video with Audio Processing Deployment Guide
009-1621-01 | 181107
Off - No video signal detected.
Blue - Video signal detected.
Off - Device is off. No power applied.
Red - Main board is powered
Reserved for future use.
Reserved for future use.
4-pin Control Connector. Transmits and receives serial data to and from serial controllable devices.
For pin-out information, refer to the
3.5 mm IR Emitter connection. Transmits IR signals via an IR Flasher (5V tolerant) to devices with an
IR input or IR receiver
Not used.
1G of reserved network data bandwidth commonly used to connect any network compliant device to
transmit its data onto the Ethernet network by sharing the 10G network link. 8-pin RJ-45 female
connection. This is a courtesy port it will not work for all network functions. Example: Spanning tree
devices are not supported by this port.
IMPORTANT! Do not connect this port to a network switch.
Solid Orange - Link is established.
Off – No link established
Green Blinking - Indicates data activity.
Off – No Activity
Reserved for future use.
9 of 32
Reserved for future use.
RSVD LED
Blue - LED on by default.
Off - No valid connection
Link TX LED Blue - Valid link
Blinking - Sending Ethernet Data
Off - No valid connection
Link RX LED Blue - Valid link
Blinking - Receiving Ethernet
Power Input 12V DC
19-Pin Type A HDMI female digital audio/video
output.
HDMI Out
Supports HDMI 2.0a
HDMI 2.0 complaint cable required for 4K content.
10G input from the Audio/Video over IP 10G network
Optical In
switch.
or
SFP+ (PAV-VOMVP1F)
10 GbE
RJ-45 (PAV-VOMVP1C)
RS-232 Wiring section below.
