Savant PAV-VIMAP8S Quick Reference Manual

Savant® ProAV Video 8 or 4 Input IP Transmitter 4K UHD with Audio Processing
and Control (PAV-VIMAP8S/PAV-VIMAP4S)
Quick Reference Guide
Box Contents
(1) Audio/Video over IP Switch
(PAV-VIMAP8S-00/PAV-VIMAP4S-00)
(1) Installation Kit (075-0192-xx/075-0197-xx)
(2) Standard 3U Rack Mounting Brackets (071-0638-xx)
(4) M5 x 8 mm Flat-head Phillips Screws (039-0180-xx)
(1) 4 ft Power Cord (064-0443-xx N. America)
or 4ft Power Cord (International can vary)
(16 or 8) 3-pin Control Connectors (028-9351-xx)
(1) Quick Reference Guide (this document)
Specifications
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Cooling 70 cubic feet per minute (CFM) recommended
BTU 1365 BTU/hr
Dimensions and Weights
Height 5.21 in (132.3 mm) | Rack Space 3U
Width 17.30 in (439.4 mm)
Depth 14.24 in (361.7 mm)
Weight Net: 14.5lb (6.59 kg) | Shipping 18.25lb (8.27 kg)
Power
Input Power 100-240V AC 50/60Hz, (5A maximum)
N. America - 144VA - (1.2 A @ 120V AC, 60Hz)
Nominal Power
International - 156VA - (.68 A @ 240V AC 50Hz)
N. America - 400VA - (4 A @ 120V AC, 60Hz)
Maximum Power
International - 432VA - (1.8 A @ 240V AC 50Hz)
Power Cable IEC320 C13 three-pole detachable power card
Audio
Multi-Channel PCM
Dolby® TrueHD™
Dolby® Digital (AC-3)
Audio Down Dolby® Digital Plus (Enhanced AC-3) - AAC
Mixing to Stereo DTS®
PCM DTS-HD Master Audio™
DTS Digital Surround 96/24™
DTS-HD Low Bit Rate (LBR)
DTS-HD High Resolution Audio™
Supports pass-though of all HDMI audio formats.
Video
HDR Supported
5
Supported 640x480
5
Formats 720x480
4
720x576
800x600
1024x768
1280x720
1 = at 24 Hz 3 = at 30 Hz
2 = at 25 Hz 4 = at 50 Hz
Compliance
FCC Part 15
Safety and
Emissions
RoHS Compliant
PAV-VIMAP8S-00/PAV-VIMAP4S-00 | 009-1604-00 | 180116
Copyright 2018 Savant Systems, LLC
5
1280x720 1920x1200
5
1280x1024 3840x2160
1
1920x1080 3840x2160
5 3
1920x1080 3840x2160
5 4
1920x1080 3840x2160
4 5
1920x1080 3840x2160
5 = at 60 Hz
CE C-Tick
Required Components
Savant Audio/Video over IP Device (PAV-VOMVP1F/PAV-VOMVP1C)
Savant System Host
Savant qualified 10G Managed Network Switch
Savant User Interface
Savant Design and Configuration Tools

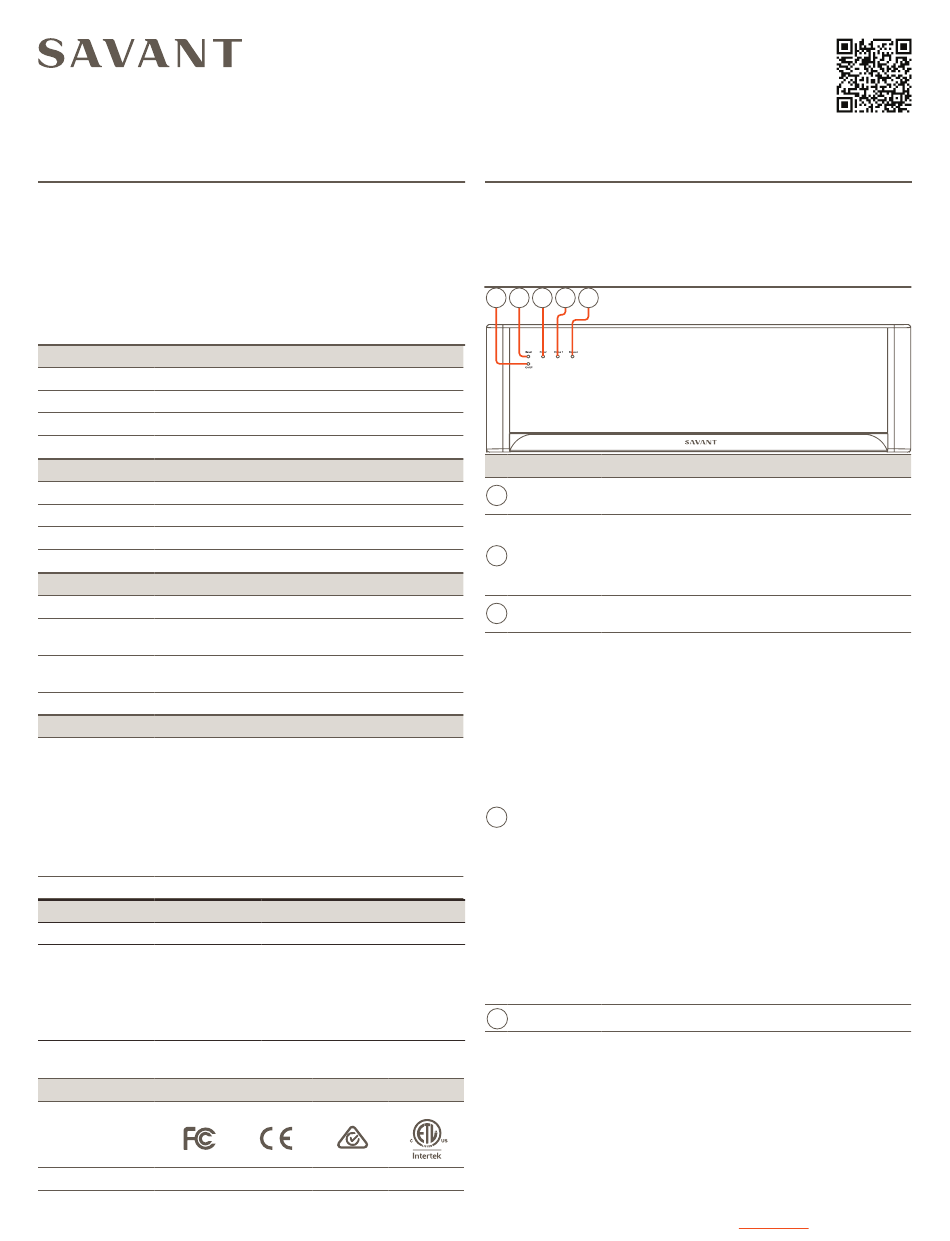

Front Panel
A B C D E
Item
On / Off
A
Button
B
Reset Button
C
Power LED
D
Status 1 LED
5
1
2
3
4
E
Status 2 LED
5
ETL
1 of 2
Description
Reboots the main board (mcu) and power cycles
the IP Video transmit (Tx) cards
Press and Release - Resets the IP Video transmit
(Tx) cards.
Press and hold – Clears the network settings.
Press and hold button for 5 seconds until Status
LED blinks red rapidly; then release.
Off – Device is off. No power applied.
Green – Main board is powered
Green Blinking: Embedded system is ready, but
no communication has been established with the
host.
Green: Host has established communications
with the embedded system.
Red Blinking: Embedded firmware is running, but
has not received a DHCP IP Address.
Red: Host has determined the firmware needs to
be updated, but a problem occurred during the
process that will initiate a reset.
Amber Blinking: Embedded system has a valid
link local IP Address and is connecting to the
host.
Amber: Host is updating the embedded
firmware.
Off: Embedded processor is resetting, or is
powered up, and is booting the embedded
firmware.
Hardware Failure: If a hardware failure occurs,
the status LED indication will be interrupted
every three seconds with a solid red indication.
For example, if the LED is blinking green when a
hardware failure occurs, the LED will
alternate between blinking green and solid red at
three-second intervals.
Reserved for future use.
45 Perseverance Way, Hyannis, MA 02601
Savant.com
For Product Info
| 508.683.2500
