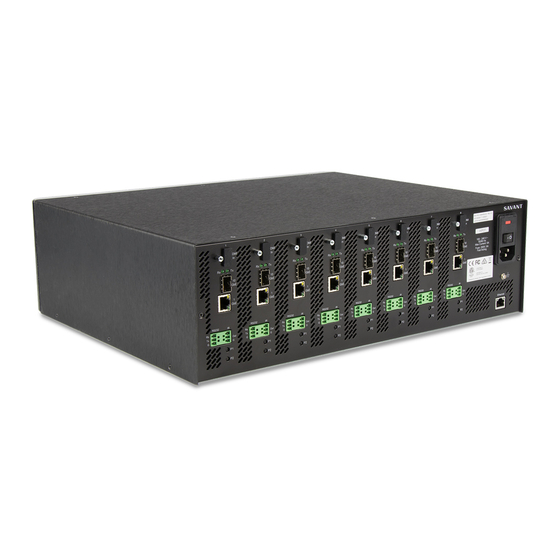

Savant PAV-VIMAP8S Deployment Manual

Ip video with audio processing
Hide thumbs Also See for PAV-VIMAP8S:
Table of Contents

Advertisement

Quick Links

Download this manual
IP Video with Audio Processing
PAV-VIMAP8S | PAV-VIMAP4S
Deployment Guide
Document Number:
009-1621-01
Document Date:
November 2018
Document Supports:
da Vinci 8.8
Savant IP Video with Audio Processing Deployment Guide
009-1621-01 | 181107
1
of
32
Copyright © 2018 Savant System, LLC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAV-VIMAP8S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Savant PAV-VIMAP8S

Summary of Contents for Savant PAV-VIMAP8S

  • Page 1 IP Video with Audio Processing PAV-VIMAP8S | PAV-VIMAP4S Deployment Guide Document Number: 009-1621-01 Document Date: November 2018 Document Supports: da Vinci 8.8 Savant IP Video with Audio Processing Deployment Guide Copyright © 2018 Savant System, LLC 009-1621-01 | 181107...

  • Page 2: Table Of Contents

    Appendix A: 10G Network Requirements ..........26 Appendix B: Accessories .................. 27 Appendix C: UPS Recommendations ............28 Appendix D: EDID Optimization ..............29 Savant IP Video with Audio Processing Deployment Guide Copyright © 2018 Savant System, LLC 009-1621-01 | 181107...
  • Page 3 WEIGHT INJURY! dropped. Installing some of the Savant equipment requires two installers to ensure safe handling during installation. Failure to use two installers 15. To completely disconnect this equipment from the AC mains, may result in injury.

  • Page 4: Introduction

    1 Introduction The Savant IP Video is a scalable UHD (4K) Video Matrix using a Savant verified 10G network switch. This document will guide the installer through the process of installing, configuring, and adding Savant IP Video devices to a RacePoint Blueprint® configuration.
  • Page 5 Requirements) Unique IDs (UID) of the IP Video devices ........................... (located on the back of the units) Savant Pro Host licensed and running da Vinci 8.8 or higher ..................(Mac based Pro Host only) Savant Development Environment (SDE/MacBook®)....................RacePoint Blueprint da Vinci 8.8 or higher Source equipment that will be used in the system ......................

  • Page 6: Deployment Steps

    2 Deployment Steps Follow these steps to successfully deploy Savant IP Video devices. This page can be used as a checklist to record which steps have been completed. Review product specifications and connection details ....................IP Video Equipment Overview Install the Savant IP Video devices ............................

  • Page 7: Ip Video Equipment Overview

    3 IP Video Equipment Overview This section covers the IP Video Audio Processing chassis and just the PAV-VOMVP1x for information on deploying other IP Video devices see the Savant IP Video Deployment Guide on the Savant Customer Community. 3.1 Box Contents and Specifications Refer to the Quick Reference Guide for these products located on the Savant Customer Community for Box Contents and Specifications.
  • Page 8 Push Buttons Reserved for future use. 8-Pin RJ-45 female connection. Used to communicate with the Savant System Host. Ethernet Supports Audio Video Bridging (AVB)/Time Sensitive Networking (TSN) NOTE: This port must be connected to a AVB switch in order to use the breakout down-mixed audio.

  • Page 9: Pav-Vomvp1X

    Off – No link established Green Blinking - Indicates data activity. Link Activity LED Off – No Activity Audio Out Reserved for future use. Savant IP Video with Audio Processing Deployment Guide Copyright © 2018 Savant System, LLC 009-1621-01 | 181107...

  • Page 10: Wiring And Connections

    4.2 10G Ethernet Fiber (SFP+) Enhanced small form-factor pluggable connection. Use a Savant certified Direct Access Copper (DAC) SFP+ cable to connect the chassis to the 10G switch, or Savant certified fiber and fiber connectors along with Savant certified SFP+ modules.

  • Page 11: Ir Wiring

    Serial control connection are made using a 4-pin Control Connector supplied with the device. The wire slips into the hole and locks with a screw located at the top of the connector. Savant IP Video with Audio Processing Deployment Guide Copyright © 2018 Savant System, LLC 009-1621-01 | 181107...

  • Page 12: Network

    The PAV-VIMAPxS uses a standard RJ-45 port complying with IEEE 802.3 Ethernet standards. This port supports AVB/TSN for communication with the Savant Host and with Savant IP Audio devices. If the breakout down-mixed audio is going to be used this port must be connected to a AVB switch.

  • Page 13: Installation

    5 Installation The Savant IP Video Input Transmitter can be mounted in a 3U rack style enclosure and is compatible with all standard 19-inch NEMA rack mounts. The rack ears need to be attached prior to placing in a rack Savant IP Video with Audio Processing Deployment Guide Copyright ©...

  • Page 14: Blueprint Configuration

    Savant Host – 10G Network Switch – IP Video Transmitter – Video Sources – – IP Video Receiver HD/UHD Displays 6.1 Basic Blueprint Layout Savant IP Video with Audio Processing Deployment Guide Copyright © 2018 Savant System, LLC 009-1621-01 | 181107...

  • Page 15: Adding A Video Input Ip Transmitter To A Configuration

    Equipment zone. If placed in a User zone the outputs cannot leave NOTE: This connection can only be made to a AVB switch. that zone. Name the Device. Savant IP Video with Audio Processing Deployment Guide Copyright © 2018 Savant System, LLC 009-1621-01 | 181107...

  • Page 16: Adding A Video Output Ip Receiver To A Configuration

    Select the Video Output IP Receiver that is needed and drag it into the User zone that is will be used. Name the Device. Savant IP Video with Audio Processing Deployment Guide Copyright © 2018 Savant System, LLC 009-1621-01 | 181107...

  • Page 17: Adding A 10G Switch To A Configuration

    6.4 Adding a 10G switch to a Configuration This process is to add a NetGear ProSafe M4300 10G network switch to the configuration. See Savant Video over IP Network Configuration Guide on the Savant Customer Community for information on how to set up this device before its Video connection are made. In an open Blueprint configuration do the following.

  • Page 18: Adding An Avb/Tsn Switch

    3. Drag into a Shared Equipment zone. 4. Name the Device. 5. Place the AVB/TSN switch in the layout window and make AVB connections. Savant IP Video with Audio Processing Deployment Guide Copyright © 2018 Savant System, LLC 009-1621-01 | 181107...

  • Page 19: Making 10G/Avb Connections

    13. Highlight the M4300 8x8F then the desired SFP port and left-click. 14. Repeat steps 11 to 13 for each PAV-VOM in the system. Savant IP Video with Audio Processing Deployment Guide Copyright © 2018 Savant System, LLC 009-1621-01 | 181107...

  • Page 20: Avb Expansion

    6.8 External AVB Sources The Savant IP Video with Audio Processing Input chassis can be used to pass AVB audio to IP Video endpoints. There is a 4 stream limit per PAV- VIMAPxS. The audio service path must be set in Blueprint. Below is an example of how to configure AVB services for PAV-VOM endpoints.
  • Page 21 For more information on service path selection see Service Selection RacePoint Blueprint Programming Guide on the Savant Customer Community. Savant IP Video with Audio Processing Deployment Guide Copyright © 2018 Savant System, LLC 009-1621-01 | 181107...

  • Page 22: Best Practices

    7 Best Practices Once the system is installed and the configuration has been uploaded to the Host, there are a couple best practices to test a Savant IP Video system. Initial Audio and Video setup/testing should be done using the default EDID. The default EDID has support for video resolutions up to 4k 60hz 4:2:0 8-bit.

  • Page 23: System Monitor

    Color Depth – Displays the active number of bits for color data. Source Stable – Displays if video is received from the connected source. Current Audio Format – Displays current audio format. Savant IP Video with Audio Processing Deployment Guide Copyright © 2018 Savant System, LLC 009-1621-01 | 181107...

  • Page 24: Video/Audio Setting

    Video stutter may occur due to frame rate conversion frame slips. – Output colorspace is always RGB 8bit. – Video latency depends on display to source synchronization time. Savant IP Video with Audio Processing Deployment Guide Copyright © 2018 Savant System, LLC 009-1621-01 | 181107...

  • Page 25: Netgear Switch Information

    M4300 96X the module number starts at one (1). The last number is the port number. The port numbers start at one (1). Port Information – Displays connection status of the connected port. This information is mainly used it troubleshooting. Savant IP Video with Audio Processing Deployment Guide Copyright © 2018 Savant System, LLC...

  • Page 26: Appendix A: 10G Network Requirements

    Output IP Receiver. If the cable length is more than 300ft (100m) it will require the use of a PAV-VOMVPF1 using a SFP+ port on the switch. Savant IP Video with Audio Processing Deployment Guide Copyright © 2018 Savant System, LLC...

  • Page 27: Appendix B: Accessories

    High Speed Category HDMI 2.0 Cable (1,2, or 3 Meter) CBL-HDMI2M3-00 CBL-SFPDACM2-00 SFP+ Direct Attach Copper Cable (2 meter) FTK-F2000-00 Fiber Termination kit FTK-FTEST-00 Fiber Test Kit Savant IP Video with Audio Processing Deployment Guide Copyright © 2018 Savant System, LLC 009-1621-01 | 181107...

  • Page 28: Appendix C: Ups Recommendations

    Appendix C: UPS Recommendations Savant does not recommend any brand or model UPS, however there are a couple of factors that should be considered. It is important that the UPS does not only work during complete power loss but protects devices and their functionality during events like surges and brownouts. It is not uncommon for a residence or small business to see variations in power service that do not result in a complete black-out.

  • Page 29: Appendix D: Edid Optimization

    HDMI the HDMI the HDMI the HDMI audio noise) output) output) output) output) Savant IP Video with Audio Processing Deployment Guide Copyright © 2018 Savant System, LLC 009-1621-01 | 181107...
  • Page 30 (TVs are not (TVs are not (TVs are not (TVs are not HBR audio HBR audio HBR audio HBR audio capable) capable) capable) capable) Savant IP Video with Audio Processing Deployment Guide Copyright © 2018 Savant System, LLC 009-1621-01 | 181107...
  • Page 31 Mode Channel Channel Channel Channel audio audio audio input 2 channel checked checked checked checked (Multi- (Multi- PCM only channel channel PCM) PCM) Savant IP Video with Audio Processing Deployment Guide Copyright © 2018 Savant System, LLC 009-1621-01 | 181107...
  • Page 32 Savant Systems, LLC. shall not be liable for any technical or editorial errors or omissions contained herein or for incidental or consequential damages resulting from the performance, furnishing, reliance on, or use of this material.
