Savant HCX-4KHDR100 Quick Reference Manual

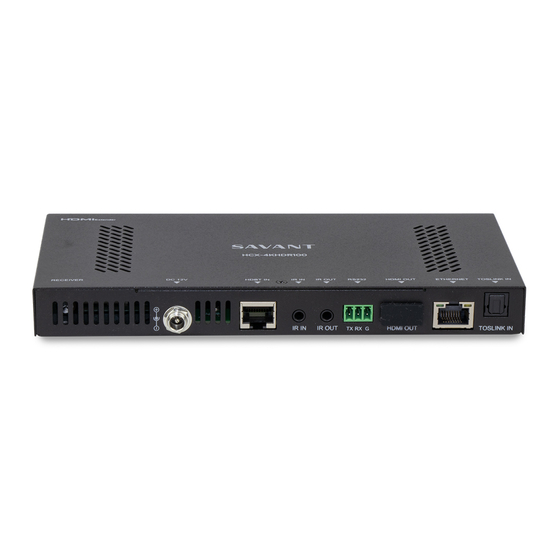

HDBaseT Extenders with 4K HDR up to 100M (HCX-4KHDR100)
Quick Reference Guide
Box Contents
(1) HDBaseT Transmitter
(1) HDBaseT Receiver
(1) Power Cords (Regional adapters included)
(1) Power Supply
(4) Brackets
(3) 3-pin Control Connector
(1) IR Emitter
(1) IR Connector Cable
(1) IR Receiver
(1) Regulatory Card
Specifications
Environmental
Temperature 32° to 113° F (0° to 45° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Dimensions and Weights
Height 0.82 in (2.1 cm)
Width 7.68 in (19.5 cm)
Depth 3.73 in (9.5 cm)
Weight Shipping 4.20 lb (1.91 kg)
Power
Input Power 12V DC 3A
Power
27 Watts (maximum)
Consumption
2-way Power over HDBaseT (PoH).
Power over
Power connected to either the transmitter or
HDBaseT (PoH)
receiver can be used to power the opposite
device.
Video
HDR Supported
800x600
1024x768
Supported 1280x760
Formats 1280x800
1280x960
1280x1024
1 = at 24 Hz | 2 = at 25 Hz | 3 = at 30 Hz | 4 = at 60 Hz
Audio
Supported Pass-through of all HDMI audio formats are
Formats supported.
Audio Return
Supported
Channel (ARC)
Compliance
FCC Part 15
Safety and
Emissions
RoHS Compliant
HCX-4KHDR100 | 009-1674-03 | 2004001
Copyright 2020 Savant Systems, LLC
1360x768 1680x1050
4 4
1366x768 1920x1080
4 4
1440x900 1920x1200
4 4
1600x900 3840x2160
4 4
1600x1200 4096x2160
4 4
4
CE

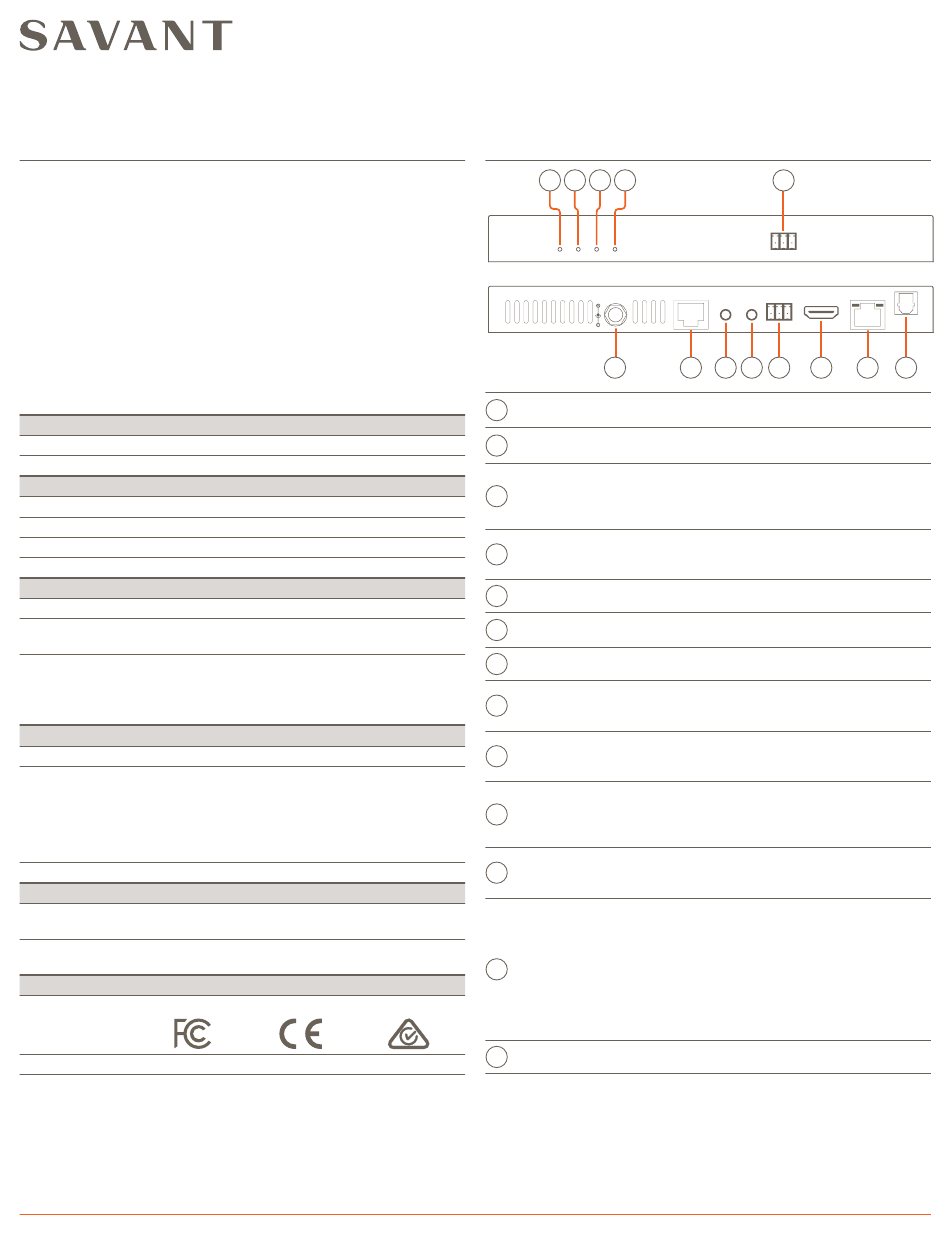

Transmitter
A B
POWER STATUS HDCP
Front Panel
Rear Panel
A
Power LED
B
Status LED
C
HDCP LED
D
Link LED
E
Audio Output
F
Power Input
G
HDBaseT Out
H
IR In
I
IR Out
4
4
4
J
RS-232
1,2,3,4
1,2,3,4
K
HDMI In
L
Ethernet
C-Tick
M
TOSLink Out
1 of 2
C D
L
LINK AUDIO OUT
IR IN IR OUT TX RX G
F G H I
Off: Device is off. No power applied.
Red: Main board is powered.
Off: HDBaseT processor is not running.
Blinking Blue: HDBaseT processor is running.
Off: No HDMI stream.
Blue: HDCP present in HDMI stream.
Rapid Blinking Blue: Non-encrypted HDCP
signal.
Off: No connection established.
Blue: Connection established between
Transmitter and Receiver.
3-pin analog audio output.
12V DC locking power connection.
(2-way PoH)
RJ-45 HDBaseT connection.
3.5 mm IR input for IR pass-through. Transmits
IR signals via an IR Flasher (5V tolerant) to
devices with an IR input or IR receiver.
3.5 mm IR output connection. Transmits
IR signals via an IR flasher (5V tolerant) to
devices with an IR input or IR receiver.
3-pin Control Connector. Transmits and
receives serial data to and from serial
controllable devices. For pin-out information,
refer to the RS-232 Wiring section below.
19-Pin Type A HDMI female digital audio/
video input. Supports HDMI 2.0b. An HDMI 2.0
complaint cable is required for 4K content.
RJ-45 10/100 Base-T, auto-negotiating port
with Link/Activity LEDs. For use of pass-
through of network connection.
Link LED:
Off: Ethernet link is not established.
Green Solid: Ethernet link is established.
Activity LED:
Off: No Activity.
Green Blinking: Activity (Rx/Tx).
Digital optical output.
