3 IP Video Equipment Overview

This section covers the IP Video Audio Processing chassis and just the PAV-VOMVP1x for information on deploying other IP Video devices see the Savant IP
Video Deployment Guide on the Savant Customer Community.

3.1 Box Contents and Specifications

Refer to the Quick Reference Guide for these products located on the Savant Customer Community for Box Contents and Specifications.

3.2 PAV-VIMAPxS

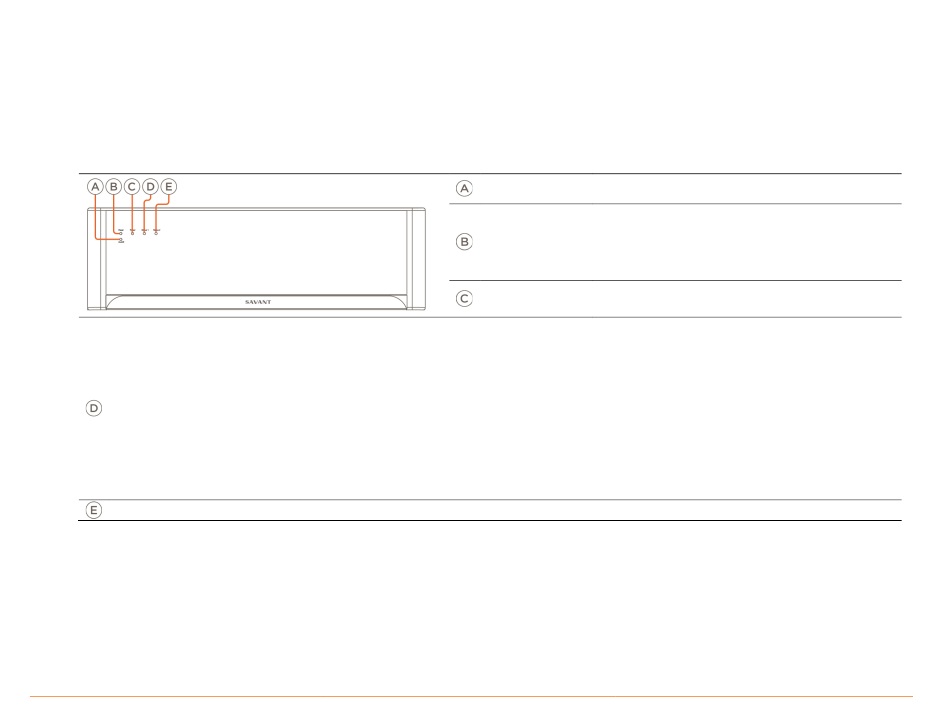

Front Panel
Status 1 LED
Status 2 LED
Savant IP Video with Audio Processing Deployment Guide
009-1621-01 | 181107
Green Blinking: Embedded system is ready, but no communication has been established with the host.
Green: Host has established communications with the embedded system.
Red Blinking: Embedded firmware is running, but has not received a DHCP IP Address.
Red: Host has determined the firmware needs to be updated, but a problem occurred during the process
that will initiate a reset.
Amber Blinking: Embedded system has a valid link local IP Address and is connecting to the host.
Amber: Host is updating the embedded firmware.
Off: Embedded processor is resetting, or is powered up, and is booting the embedded
firmware.
Hardware Failure: If a hardware failure occurs, the status LED indication will be interrupted every three
seconds with a solid red indication. For example, if the LED is blinking green when a hardware failure
occurs, the LED will alternate between blinking green and solid red at three-second intervals.
Reserved for future use.
7 of 32
Reboots the main board (mcu) and power cycles the
On / Off Button
IP Video transmit (Tx) cards
Press and Release - Resets the IP Video transmit
(Tx) cards.
Reset Button
Press and hold – Clears the network settings. Press
and hold button for 5 seconds until Status LED
blinks red rapidly; then release.
Off – Device is off. No power applied.
Power LED
Green – Main board is powered
