Savant HCX-1100 Quick Reference Manual

The Savant HDMI Over COAX Extender (HCX-1100) Quick Reference Guide provides the
steps necessary to install the HCX-1100.
Features
• The Savant HDMI™ over COAX (RGBHV) digital extension solution set takes an
HDMI™ signal and extends its distance over 5-connector coaxial cabling.
• HDMI™ over COAX is capable of delivering 1080p HDMI™ at extended
distances of up to 330 feet (100 meters).
• Supports both audio and video signals for large HD displays.
• Connects and extends HDMI™ source signals to remote HDMI™ displays over
RGBHV.
• HDMI™ 1.3 and HDCP compliant
• Supports mandatory HDMI™ 1.4 3D resolutions
• Both audio and video signals are transmitted digitally over mini-COAX cables.
Unpack the Components
To unpack and mount the Transmitter and Receiver, refer to the diagram below for connection
information and do the following:
1. Open the box and remove the packing.
2. Remove the supplied items from the box (see Box Contents below).

Box Contents

• (1) Extender for HDMI Over COAX with Transmitter Unit
• (1) Extender for HDMI Over COAX with Receiver Unit
• (1) 9V DC Power Supply
• (1) Quick Reference Guide
Mount the Components
To mount the HDMI™ over COAX Transmitter and Receiver, do the following:
1. Place the components in locations that provide adequate access to the connectors in
order to route the power cables and other required signal and control cables.
Note: All components requiring 120 VAC, 50/60 Hz source power must obtain it from a
surge-protected circuit.
2. Interconnect the components as described in Interconnecting the Units below and
shown in the interconnection diagram.
Specifications - Transmitter and Receiver
Temperature 32° to 95° F (0° to 35° C)
Humidity 10% to 90% RH (non-condensing)
Height 1.20 in/3.0 cm
Width 3.3 in/8.4 cm
Depth 3.5 in/8.9 cm
Weight 0.8 lb/0.36 kg (weight of each unit)
9V DC Input Power 120 VAC, 50/60 Hz to 9V DC Power Supply
(Transmitter); 9V DC is output from Transmitter to
PWR connector on Receiver
Power Consumption 6 Watts (max) per unit
Max. Video Resolution Supported 1080p
Safety and Emissions CSA NRTL/C and FCC Part 15 Class B
RoHS Compliant

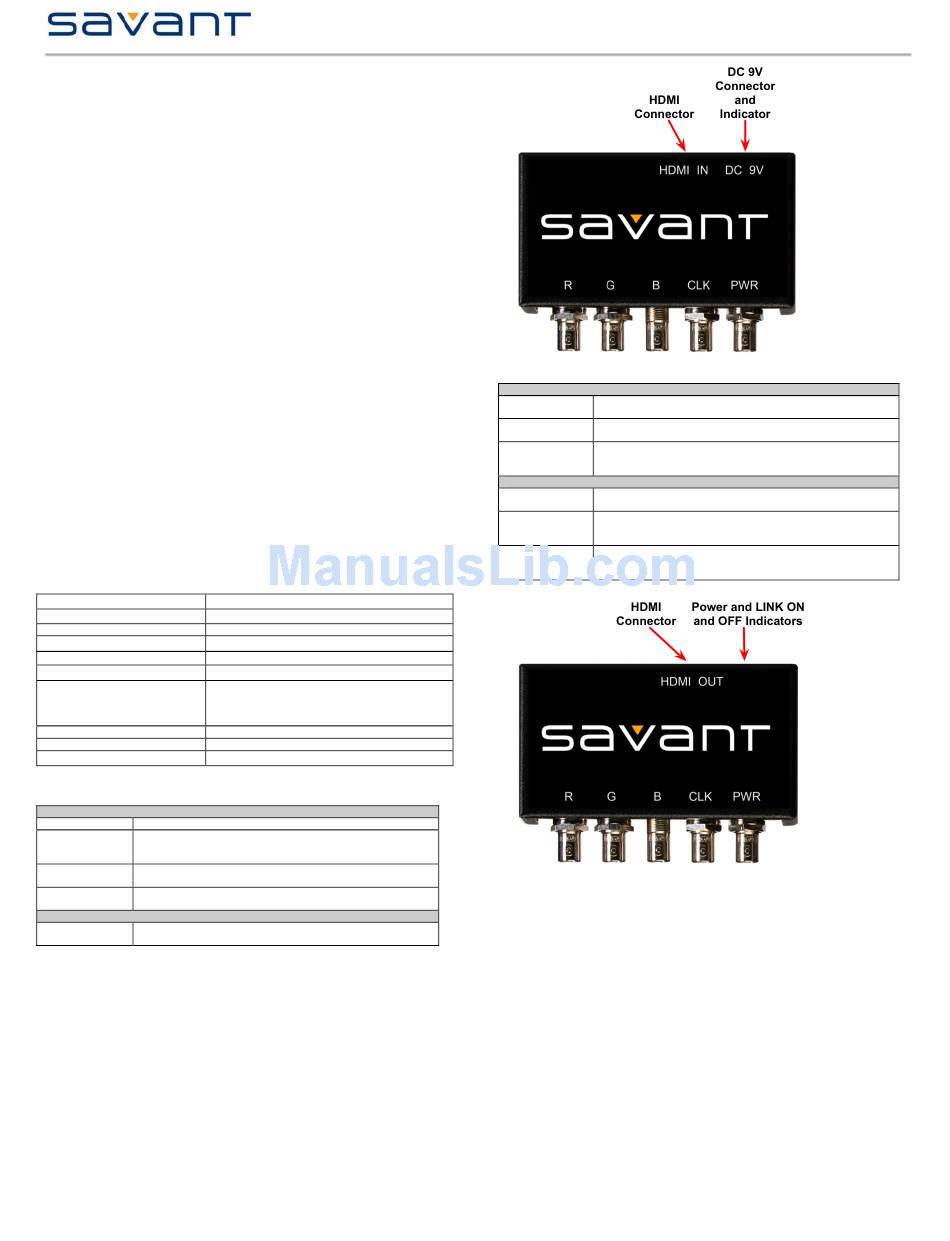

Transmitter
Connectors
DC 9V Receives 9V DC@ 1A input power to Transmitter
HDMI In Provides HDMI signal input to Transmitter
(Type A 19 pin
female)
R G B CLK These BNC connectors output the HDMI signal to the Receiver
over COAX cabling.
PWR This BNC connector outputs 9V DC to the Receiver over COAX
cabling.
Indicator
DC 9V LED • Blue indicates the transmitter is receiving 9V DC power.
• Off indicates the transmitter is not receiving 9V DC power.
Copyright © 2011 Savant Systems LLC. SAVANT® and RacePoint Blueprint™ are trademarks of Savant Systems LLC.
HDMI Over COAX Extender HCX-1100 Quick Reference Guide
Savant LLC reserves the right to change product specifications without notice.
770 Main Street, Osterville, MA 02655, Phone 508.683.2500, Fax 508.683.2600, http://www.savantav.com
Receiver
Connectors
R G B CLK These BNC connectors receive the HDMI signal from the
Transmitter over mini-COAX cables.
PWR This BNC connector inputs 9V DC from the Transmitter over
COAX a mini-COAX cable.
HDMI Out Outputs HDMI signal to audio and video components
(Type A 19 pin
female)
Indicator
Power LED • Blue indicates the Receiver is receiving 9V DC power.
• Off indicates the Receiver is not receiving 9V DC power.
LINK ON • Green indicates a valid link exists between the Transmitter and
(4 LEDs) Receiver over the COAX cabling for the respective R, G, B, and
CLK signals.
LINK OFF • Red indicates a valid link does not exist between the transmitter
(4 LEDs) and receiver over the COAX cabling for the respective R, G, B,
and CLK signals.
Interconnect the Units
To interconnect the units, do the following:
1. Connect the Transmitter to the HDMI source device such as a router or switch using a
HDMI cable.
2. Connect the Receiver to an audio/video device such as a HD Display, DVD, DVR, etc.,
using a HDMI cable.
3. Interconnect the R, G, B, and CLK BNC connectors on Transmitter and Receiver.
These connections route the HDMI signal from the Transmitter to the Receiver. The
Transmitter and Receiver units may be up to 330 feet apart.
4. Interconnect the PWR BNC connectors on Transmitter and Receiver. These
connections route the 9V DC input power from the Transmitter to the Receiver.
5. Apply power to all connected units. Plug the AC power adapter between a surge-
protected power strip and the DC 9V input connector on the Transmitter.
009-0307-01
