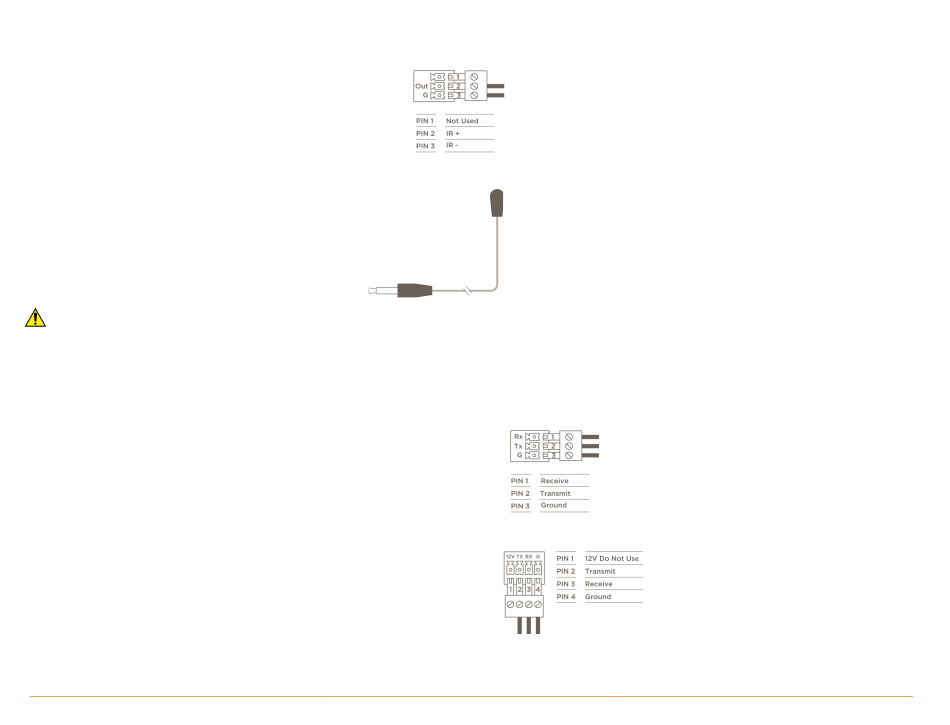

4.4 IR Wiring

PAV-VIMAPxS

IR connections are made using a 3-pin Control

Connector supplied with the device. The wire slips into

the hole and locks with a screw located at the top of

the connector.

PAV-VOMVP1x

IR connection are made using 3.5 mm IR Emitter

supplied with the device.

IMPORTANT: IR Wiring Precautions

Ensure that all IR emitters are within 15 feet (4.6 meters) from the controller's location.

Use of 3rd party blinking IR emitters with Talk Back is not recommended. These types of emitters can draw voltage away from the IR signal that can

degrade IR performance.

PAV-VIMAPxS

Serial control connections are made using a 3-pin Control Connector

supplied with the device. The wire slips into the hole and locks with a

screw located at the top of the connector.

PAV-VOMVP1x

Serial control connection are made using a 4-pin Control Connector

supplied with the device. The wire slips into the hole and locks with a

screw located at the top of the connector.

Savant IP Video with Audio Processing Deployment Guide

009-1621-01 | 181107
