Savant HCX-4KHDR40 Quick Reference Manual

HDBaseT Extenders with 4K HDR up to 40M (HCX-4KHDR40)
Quick Reference Guide

Box Contents

(1) HDBaseT Transmitter
(1) HDBaseT Receiver
(1) Power Supply (Regional clips included)
(4) Brackets
(2) 3-pin Control Connector
(1) Ir Emitter
(1) Ir Connector Cable
(1) Ir Receiver
(1) Regulatory Card

Specifications

Environmental

Temperature 32° to 113° F (0° to 45° C)
Humidity 10% to 90% Relative Humidity (non-condensing)

Dimensions and Weights

Height 0.60 in (1.52 cm)
Width 5.37 in (13.64 cm)
Depth 2.92 in (7.42 cm)
Weight Shipping 2.05 lb (0.93 kg)

Power

Input Power 18V DC 3A
Power
54 Watts (maximum)
Consumption
2-way Power over HDBaseT (PoH).
Power over Power connected to either the transmitter or
HDBaseT (PoH) receiver can be used to power the opposite
device.

Video

HDR Supported
800x600
1024x768
Supported 1280x760
Formats 1280x800
1280x960
1280x1024
1 = at 24 Hz | 2 = at 25 Hz | 3 = at 30 Hz | 4 = at 60 Hz

Audio

Supported Pass-through of all HDMI audio formats are
Formats supported.

Regulatory

FCC Part 15
Safety and
Emissions
RoHS Complaint
HCX-4KHDR40 | 009-1673-02
Copyright 2020 Savant Systems, LLC | 200406
1360x768
4 4
1680x1050
1366x768
4 4
1920x1080
1440x900
4 4
1920x1200
1600x900
4 4
3840x2160
1600x1200
4 4
4096x2160
4
CE
Device
A
POWER
E
A
Power LED
B
Status LED
C
HDCP LED
D
Link LED
E
Power Input
F
HDBaseT
G
IR In
H
IR Out
I
RS-232
4
J
4 HDMI Out
4
1,2,3,4
1,2,3,4
C-Tick
1 of 2
B C D
STATUS HDCP LINK
IR IN IR OUT TX RX G HDMI OUT
F G H I
Off: Device is off. No power applied.
Red: Main board is powered.
Off: HDBaseT processor is not running.
Blinking Blue: HDBaseT processor is running.
Off: No HDMI stream.
Blue: HDCP present in HDMI stream.
Rapid Blinking Blue: Non-encrypted HDCP
signal.
Off: No connection established.
Blue: Connection established between
transmitter and receiver.
18V DC locking power connection.
(2 way PoH)
RJ-45 HDBaseT connection.
3.5 mm IR input for IR pass-through. Transmits
IR signals via an IR flasher (5V tolerant) to
devices with an IR input or IR receiver.
3.5 mm IR output connection. Transmits IR
signals via an IR Flasher (5V tolerant) to devices
with an IR input or IR receiver.
3-pin Control Connector. Transmits and receives
serial data to and from serial controllable
devices. For pin-out information,
refer to the RS-232 Wiring section below.
19-Pin Type A HDMI female digital audio/
video input. Supports HDMI 2.0b. An HDMI 2.0
complaint cable is required for 4K content.
45 Perseverance Way, Hyannis, MA 02601
Savant.com | 508.683.2500
Front Panel

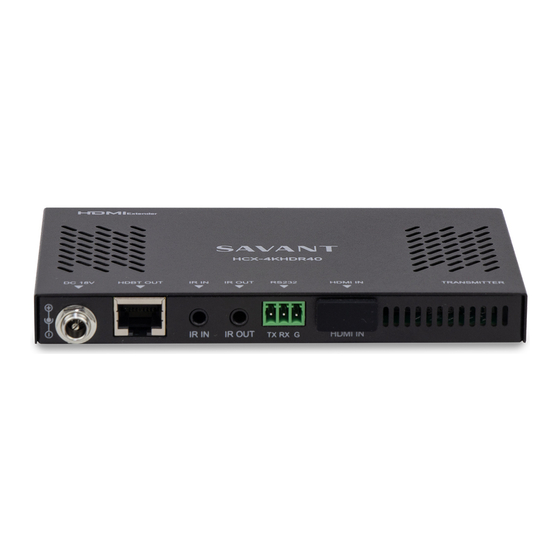

Rear Panel
J
