Savant HCX-1010 Quick Reference Manual

The Savant HDMI Over CAT5/6 Extender (HCX-1010) Quick Reference Guide provides the
steps necessary to install the HCX-1010.
Note: Savant does not support IR functionality for this extender.
Box Contents
(1) HDMI over CAT5/6 Solution Set (HCX-1010-xx) includes the following:
(1) Transmitter Unit
•
(1) Receiver Unit
•
(2) 5V DC Power Supply with locking power connector
•
(1) Quick Reference Guide
Unpack the Components
To unpack and install the components listed above, do the following:
1. Open the component box and remove the packing.
2. Remove the component and supplied items from the box.
3. Place the components in a location that provides for adequate cooling and ventilation,
and access to connectors in order to route the source power cables and other required
cables.
Specifications
Environmental
32° to 95° F (0° to 35°C)
Temperature
10% to 905 RH (non-condensing)
Humidity
Dimensions and Weight
1.25 in x 3.25 in x 3.4 in (3.2 cm x 8.2 cm x 8.6 cm)
Dimensions (H x W x D)
1.5 lb (0.68 kg)
Weight
Power
Power Supply 120V AC, 50/60 Hz to 5V DC
Maximum Power 10 Watts per unit
Signal/Data Transmission
Video Amplifier Bandwidth 225 MHz
Input Video Signal 1.2 Volts p-p
Input DDC Signal 5 Volts p-p (TTL)
Maximum Ethernet Data 100 Mbps
Transmission Rate
Ethernet Packet Full
Transmission Mode
(Duplex)
Resolution
Maximum Video 1080p60/1920 x 1200@60 Hz
Resolution Supported
HDMI Supports all HDMI 1.3 specifications
Supports 3D resolutions for HDMI 1.4 specifications
Compliance
Safety and Emissions FCC Part 15 | CE Mark | C-Tick
RoHS Compliant
ELECTRICAL DISCONNECT: The 5V DC power adaptor connected to the HCX-1010
should be easily accessible in the event of an electrical malfunction.
SURGE PROTECTION: Use a surge-protected circuit for all components requiring 120V
AC, 50/60 Hz source power.
ELECTRICAL DISCONNECT: Remove power before working on the HCX-1010.
Copyright © 2012 Savant Systems LLC, SAVANT and RacePoint Blueprint are trademarks of Savant Systems, LLC.
All brand names, product names and trademarks are the property of their respective owners.
Savant Systems, LLC reserves the right to change product specifications without notice.
45 Perseverance Way, Hyannis, MA 02601
HDMI Over CAT5/6 Extender
(HCX-1010)
Quick Reference Guide

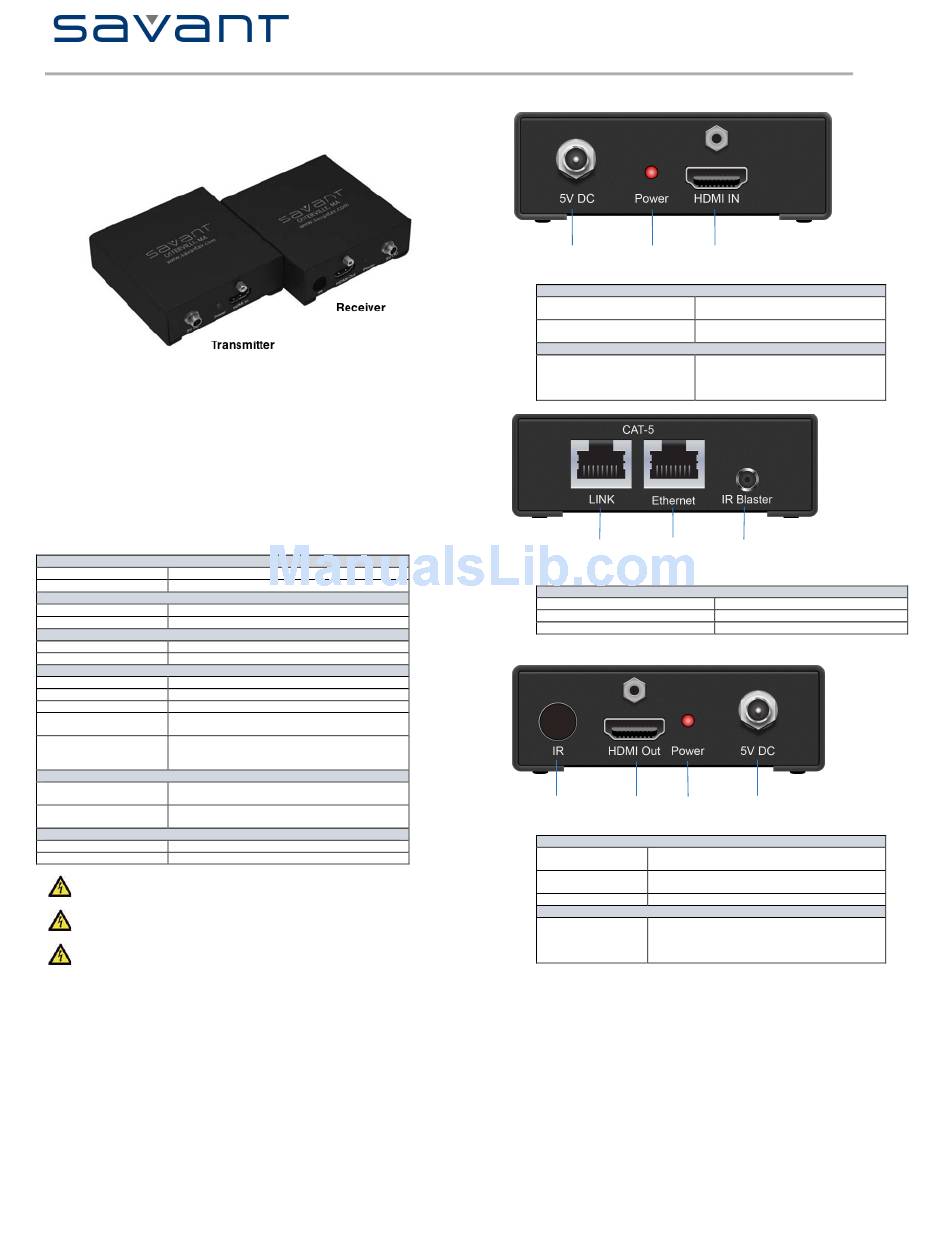

Transmitter Front and Rear Panels
Front Panel
Connectors
5V DC
HDMI In
Indicator
Power LED
Rear Panel
Connectors
Link
Ethernet
IR Blaster
Receiver Front and Rear Panels
Supported
Front Panel
Connectors
5V DC
HDMI Out
IR
Indicator
Power LED
Phone 508.683.2500 Fax 508.683.2600
5V DC Power Power LED HDMI Input from
Supply Input Indicator A/V Source
Locking power supply input. Provides
5V DC input power to transmitter
Provides HDMI signal input to
Transmitter
Red indicates the Transmitter is
receiving 5V DC power.
Off indicates the Transmitter is not
receiving 5V DC power.
CAT 5/6 Link
CAT 5/6
Connector to
Ethernet
Receiver
Connector
RJ-45 Shielded
CAT5/6 Ethernet Connector
Reserved for future use.
HDMI Output Power LED
Not
to Display Indicator
Locking power supply input. Provides 5V DC input
power to Receiver
Type A 19-Pin Female; Outputs HDMI signal input
to Display
Reserved for future use.
Red indicates the Receiver is receiving 5V DC
power.
Off indicates the Receiver is not receiving 5V DC
power.
www.SavantSystems.com
009-0306-04
HCX-1010-00
Not
Supported
5V DC Power
Supply Input
Savant Confidential and Proprietary
052912
