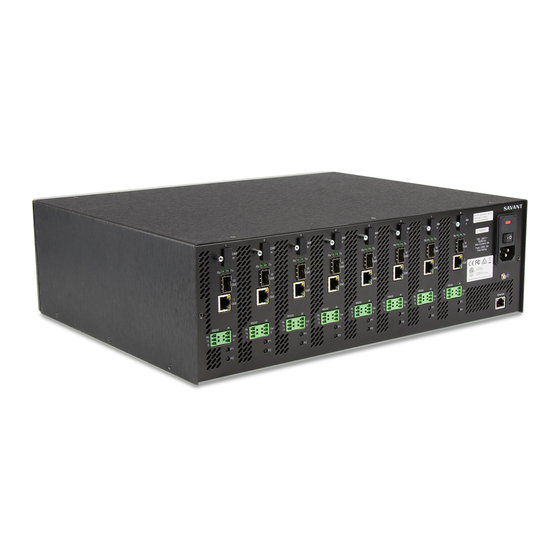

Savant PAV-VIMAP8S Quick Reference Manual

Savant® ProAV Video 8 or 4 Input IP Transmitter 4K UHD with Audio Processing
and Control [PAV-VIMAP8S/PAV-VIMAP4S]
Quick Reference Guide
Box Contents
(1) Audio/Video over IP Switch
(PAV-VIMAP8S-xx/PAV-VIMAP4S-xx)
(1) Installation Kit (075-0192-xx/075-0197-xx)
(2) Standard 3U Rack Mounting Brackets (071-0638-xx)
(4) M5 x 8 mm Flat-head Phillips Screws (039-0180-xx)
(1) 4 ft Power Cord (064-0443-xx N. America)
or 4ft Power Cord (International. Can vary.)
(16 or 8) 3-pin Control Connectors (028-9351-xx)
(1) Product Regulatory Insert (009-1950-xx)
Required Components
– Savant Audio/Video over IP Device
– Savant System Host
– Savant qualified 10G Managed Network Switch
– Savant User Interface (Pro App)
– Savant Development Environment (SDE)
Specifications
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Cooling 70 cubic feet per minute (CFM) recommended.
BTU 1365 BTU/hr
Dimensions and Weights
Height
5.21 in
Device
(13.23 cm)
22.0 in
Shipping
(55.88 cm)
Rack Space 3U
Power
Input Power 100-240V AC 50/60Hz, (5A maximum)
N. America - 144VA - (1.2 A @ 120V AC, 60Hz)
Nominal Power
International - 156VA - (.68 A @ 240V AC 50Hz)
N. America - 400VA - (4 A @ 120V AC, 60Hz)
Maximum Power
International - 432VA - (1.8 A @ 240V AC 50Hz)
Power Cable IEC320 C13 three-pole detachable power card.
Compliance
FCC Part 15
Safety and
Emissions
RoHS Compliant
Supported Releases
PAV-VIMAP8S-00
da Vinci 8.8 and higher
PAV-VIMAP4S-00
PAV-VIMAP8S-10
da Vinci 9.3.4 and higher
PAV-VIMAP4S-10
Network Requirements
For more information, see the Savant Device Networking Guidelines
the Savant Customer Community.
Savant Video Input IP Transmitter QRG | 009-1604-03
Copyright 2021 Savant Systems, Inc. | 210416
Width Depth Weight
17.30 in 14.24 in 14.5 lb
(43.94 cm) (36.17 cm) (6.59 kg)
22.0 in 10.0 in 18.25 lb
(55.88 cm) (25.4 cm) (8.27 kg)
CE C-Tick ETL

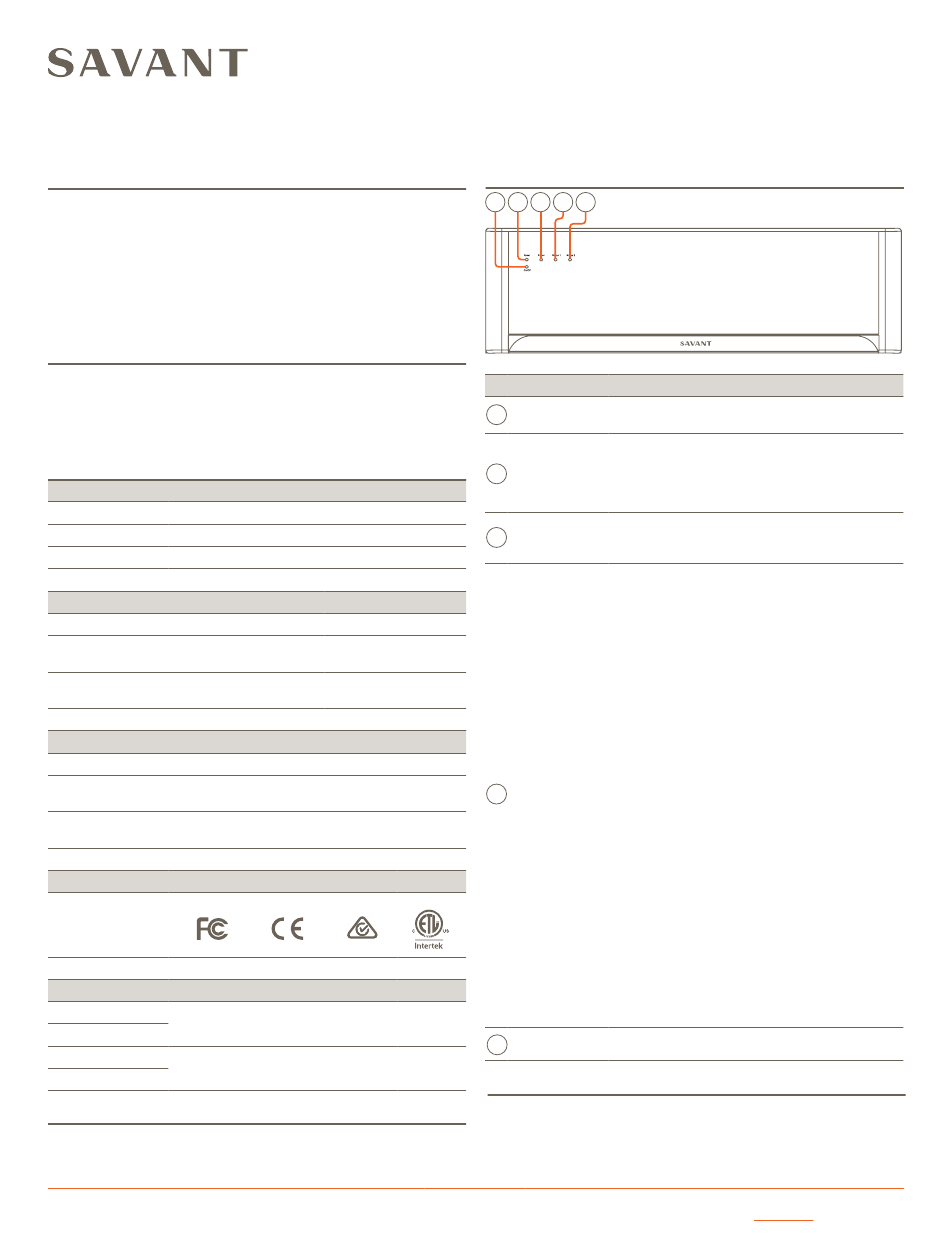

Front Panel
A B C D E
Item Description
On / Off Reboots the main board (MCU) and power
A
Button cycles the IP Video transmit (Tx) cards
Press and Release: Resets the IP Video transmit
(Tx) cards.
B
Reset Button Press and hold: Clears the network settings.
Press and hold button for 5 seconds until Sta-
tus LED blinks red rapidly; then release.
Green: Main board is powered.
C
Power LED Amber: FPGA is currently being updated.
Off: Device is off. No power applied.
Green: Host has established communications
with the embedded system.
Green Blinking: Embedded system is ready, but
no communication has been established with
the host.
Amber: Host is updating the embedded
firmware.
Amber Blinking: Embedded system has a valid
link local IP address and is connecting to the
host.
Red: Host has determined the firmware needs
to be updated, but a problem occurred during
D
Status 1 LED
the process that will initiate a reset.
Red Blinking: Embedded firmware is running,
but has not received a DHCP IP address.
Off: Embedded processor is resetting, or is
powered up, and is booting the embedded
firmware.
Hardware Failure: If a hardware failure occurs,
the status LED indication will be interrupted
every three seconds with a solid red indication.
For example, If the LED is blinking green when
a hardware failure occurs, the LED will
alternate between blinking green and solid red
at three-second intervals.
E
Status 2 LED Reserved for future use.
Additional Information
Refer to the following documents located on the
Community for additional information.
– Savant Video over IP Deployment Guide (009-1551-xx)
on
– Savant Video over IP Network Configuration Guide (009-1552-xx)
– Savant IP Audio Deployment Guide (009-1571-xx)
1 of 2
