Savant HCX-4KHDR40 Quick Reference Manual

HDBaseT Extenders with 4K HDR up to 40M (HCX-4KHDR40)
Quick Reference Guide

Box Contents

(1) HDBaseT Transmitter
(1) HDBaseT Receiver
(1) Power Supply (Regional clips included)
(4) Brackets
(2) 3-pin Control Connector
(1) Ir Emitter
(1) Ir Connector Cable
(1) Ir Receiver
(1) Regulatory Card

Specifications

Environmental

Temperature 32° to 113° F (0° to 45° C)
Humidity 10% to 90% Relative Humidity (non-condensing)

Dimensions and Weights

Height 0.60 in (1.52 cm)
Width 5.37 in (13.64 cm)
Depth 2.92 in (7.42 cm)
Weight Shipping 2.05 lb (0.93 kg)

Power

Input Power 18V DC 3A
Power
54 Watts (maximum)
Consumption
Power over
Can be used to power the second device.
HDBaseT (PoH)
Video
HDR Supported
800x600
1024x768
Supported 1280x760
Formats 1280x800
1280x960
1280x1024
1 = at 24 Hz | 2 = at 25 Hz | 3 = at 30 Hz | 4 = at 60 Hz
Audio
Supported Pass-through of all HDMI audio formats are
Formats supported.
Compliance
FCC Part 15
Safety and
Emissions
RoHS Compliant
HCX-4KHDR40 | 009-1673-00 | 180906
Copyright 2018 Savant Systems, LLC
1360x768 1680x1050
4 4
1366x768 1920x1080
4 4
1440x900 1920x1200
4 4
1600x900 3840x2160
4 4
1600x1200 4096x2160
4 4
4
CE C-Tick

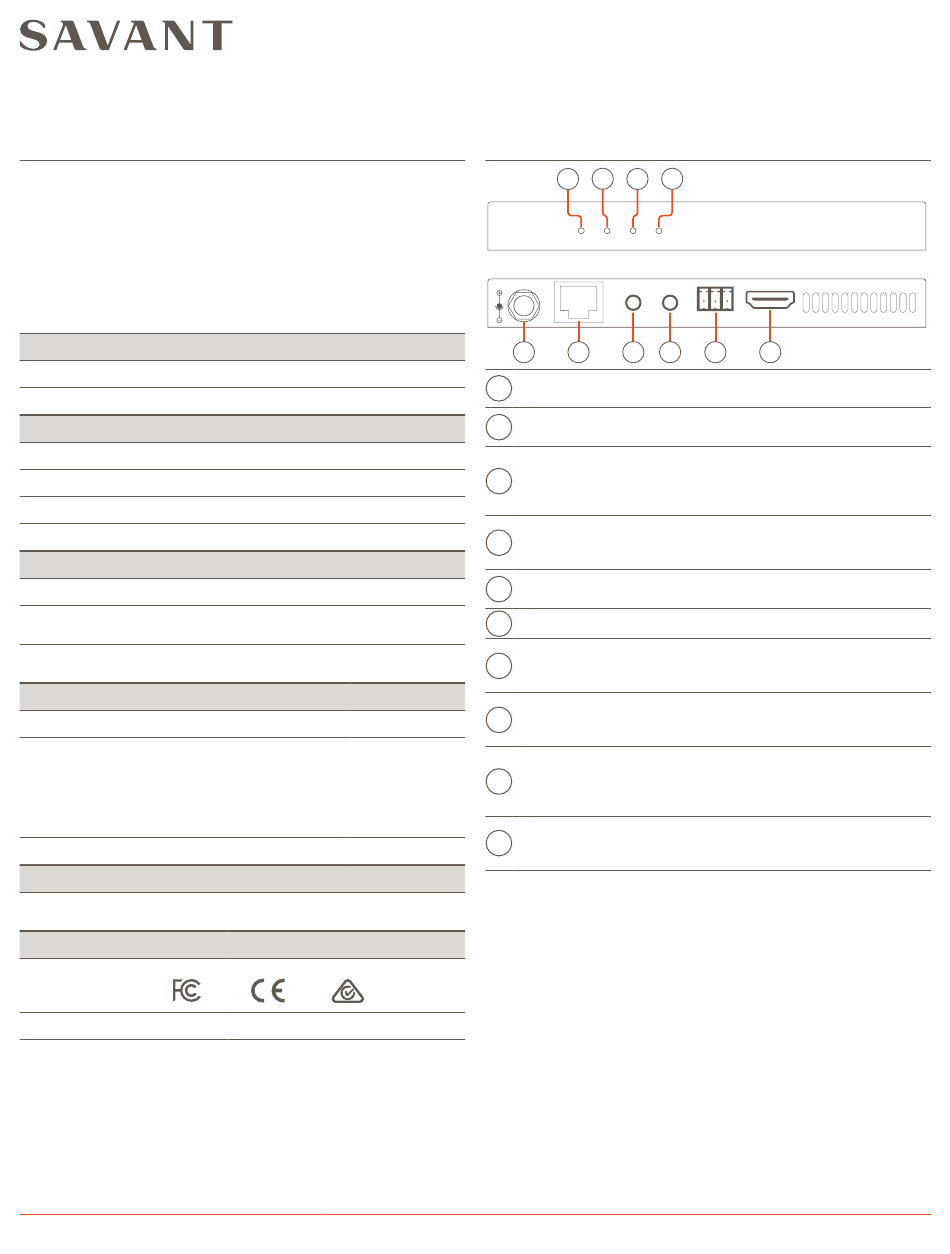

Device

A B
POWER STATUS
E F
A
Power LED
B
Status LED
C
HDCP LED
D
Link LED
E
Power Input
F
HDBaseT
G
IR In
H
IR Out
4
4
I
4 RS-232
1,2,3,4
1,2,3,4
J
HDMI
1 of 2
C D
HDCP LINK

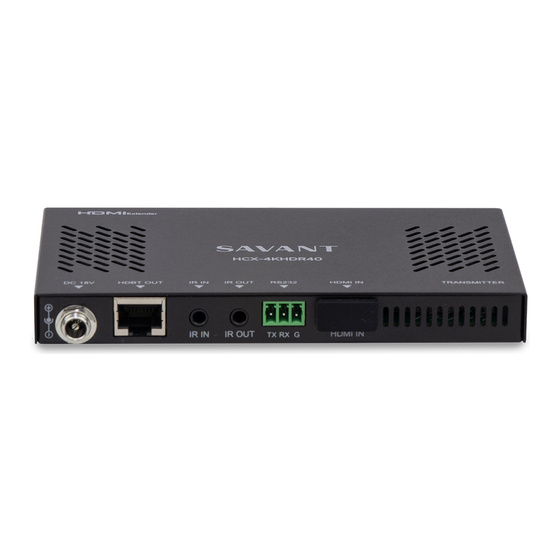

IR IN IR OUT TX RX G HDMI OUT
G H I J
Off: Device is off. No power applied.
Red: Main board is powered.
Off: HDBaseT processor is not running.
Blinking Blue: HDBaseT processor is running.
Off: No HDMI stream.
Blue: HDCP present in HDMI stream.
Rapid Blinking Blue: Non-encrypted HDCP
signal.
Off: No connection established.
Blue: Connection established between
Transmitter and Receiver.
18V DC locking power connection.
(Only one power connection needed.)
RJ-45 HDBaseT connection.
3.5 mm IR input for IR pass-through. Transmits
IR signals via an IR Flasher (5V tolerant) to
devices with an IR input or IR receiver.
3.5 mm IR output connection. Transmits IR
signals via an IR Flasher (5V tolerant) to
devices with an IR input or IR receiver.
3-pin Control Connector. Transmits and receives
serial data to and from serial controllable
devices. For pin-out information,
refer to the RS-232 Wiring section below.
19-Pin Type A HDMI female digital audio/video
input. Supports HDMI 2.0b HDMI 2.0 complaint
cable required for 4K content.
