Savant PAV-VIMAP8S Quick Reference Manual

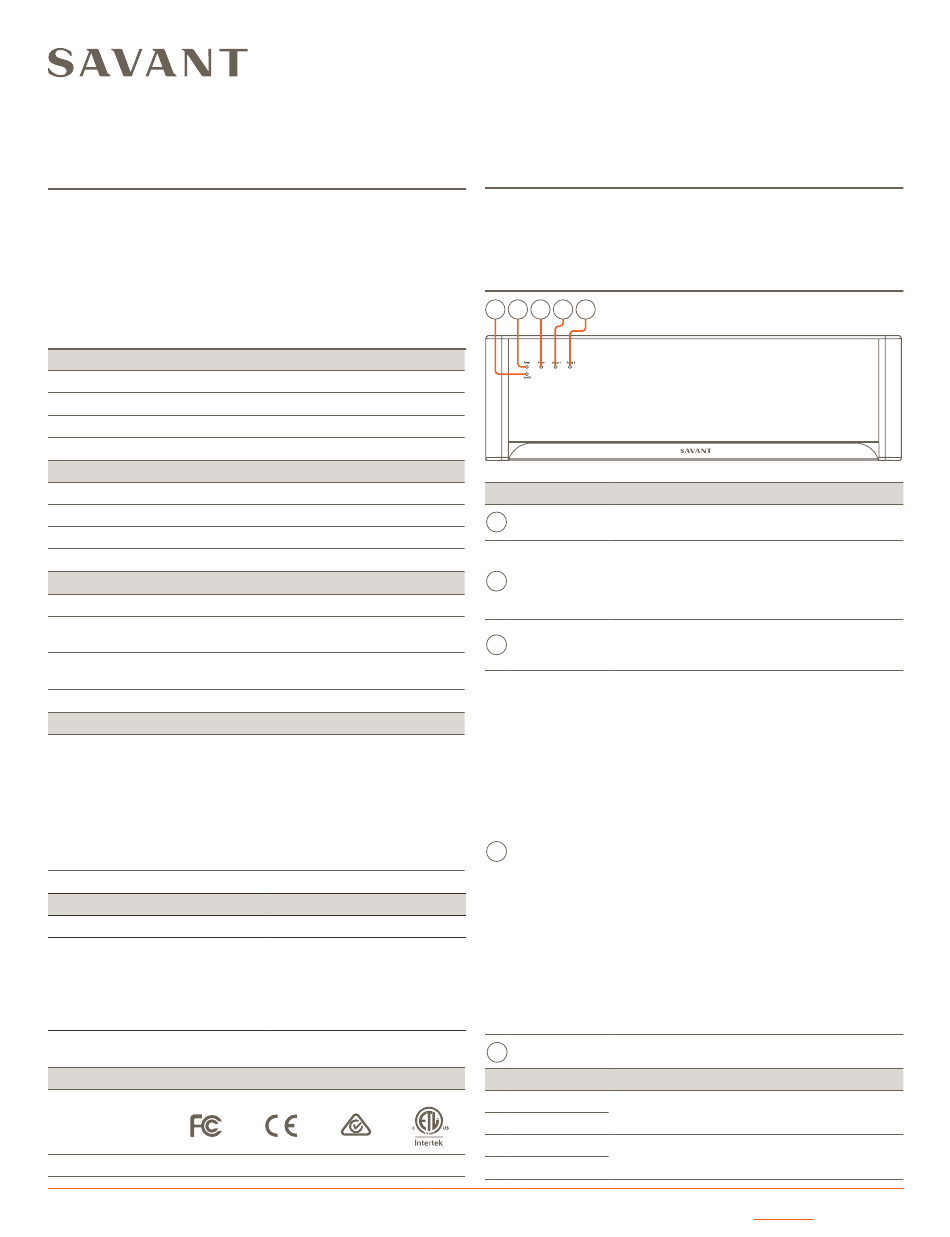

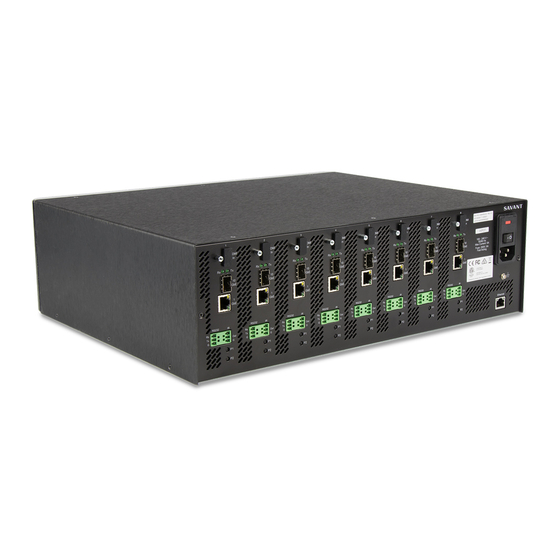

Savant® ProAV Video 8 or 4 Input IP Transmitter 4K UHD with Audio Processing
and Control [PAV-VIMAP8S/PAV-VIMAP4S]
Quick Reference Guide
Box Contents
(1) Audio/Video over IP Switch
(PAV-VIMAP8S-xx/PAV-VIMAP4S-xx)
(1) Installation Kit (075-0192-xx/075-0197-xx)
(2) Standard 3U Rack Mounting Brackets (071-0638-xx)
(4) M5 x 8 mm Flat-head Phillips Screws (039-0180-xx)
(1) 4 ft Power Cord (064-0443-xx N. America)
or 4ft Power Cord (International. Can vary.)
(16 or 8) 3-pin Control Connectors (028-9351-xx)
(1) Product Regulatory Statement (009-1950-xx)
Specifications
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Cooling 70 cubic feet per minute (CFM) recommended.
BTU 1365 BTU/hr
Dimensions and Weights
Height 5.21 in (132.3 mm) | Rack Space 3U
Width 17.30 in (439.4 mm)
Depth 14.24 in (361.7 mm)
Weight Net: 14.5lb (6.59 kg) | Shipping 18.25lb (8.27 kg)
Power
Input Power 100-240V AC 50/60Hz, (5A maximum)
N. America - 144VA - (1.2 A @ 120V AC, 60Hz)
Nominal Power
International - 156VA - (.68 A @ 240V AC 50Hz)
N. America - 400VA - (4 A @ 120V AC, 60Hz)
Maximum Power
International - 432VA - (1.8 A @ 240V AC 50Hz)
Power Cable IEC320 C13 three-pole detachable power card.
Audio
Multi-Channel PCM
Dolby® TrueHD™
Dolby® Digital (AC-3)
Audio Down Dolby® Digital Plus (Enhanced AC-3) - AAC
Mixing to Stereo DTS®
PCM DTS-HD Master Audio™
DTS Digital Surround 96/24™
DTS-HD Low Bit Rate (LBR)
DTS-HD High Resolution Audio™
Supports pass-though of all HDMI audio formats.
Video
HDR Supported.
5
Supported 640x480
5
Formats 720x480
4
720x576
5
800x600
5
1024x768
4
1280x720
1 = at 24 Hz 3 = at 30 Hz
2 = at 25 Hz 4 = at 50 Hz
Compliance
FCC Part 15
Safety and
Emissions
RoHS Compliant
Savant Video Input UP Transmitter QRG | 009-1604-02
Copyright 2021 Savant Systems, Inc. | 210127
5 5
1280x720 1920x1200
5 1
1280x1024 3840x2160
1 2
1920x1080 3840x2160
3 3
1920x1080 3840x2160
4 4
1920x1080 3840x2160
5 5
1920x1080 3840x2160
5 = at 60 Hz
CE C-Tick ETL
1
Required Components
– Savant Audio/Video over IP Device (PAV-VOMVP1F/PAV-VOMVP1C)
– Savant System Host
– Savant qualified 10G Managed Network Switch
– Savant User Interface (Pro App or TrueControl II)
– Savant Development Environment (SDE)
Front Panel
A B C D E
Item Description
On / Off Reboots the main board (MCU) and power
A
Button cycles the IP Video transmit (Tx) cards
Press and Release: Resets the IP Video transmit
(Tx) cards.
B
Reset Button Press and hold: Clears the network settings.
Press and hold button for 5 seconds until Sta-
tus LED blinks red rapidly; then release.
Green: Main board is powered.
C
Amber: FPGA is currently being updated.
Power LED
Off: Device is off. No power applied.
Green: Host has established communications
with the embedded system.
Green Blinking: Embedded system is ready, but
no communication has been established with
the host.
Amber: Host is updating the embedded
firmware.
Amber Blinking: Embedded system has a valid
link local IP address and is connecting to the
host.
Red: Host has determined the firmware needs
to be updated, but a problem occurred during
D
Status 1 LED the process that will initiate a reset.
Red Blinking: Embedded firmware is running,
but has not received a DHCP IP address.
Off: Embedded processor is resetting, or is
powered up, and is booting the embedded
firmware.
Hardware Failure: If a hardware failure occurs,
the status LED indication will be interrupted
every three seconds with a solid red indication.
For example, If the LED is blinking green when
a hardware failure occurs, the LED will
alternate between blinking green and solid red
at three-second intervals.
E
Status 2 LED Reserved for future use.
Supported Releases
PAV-VIMAP8S-00
da Vinci 8.8 and higher
PAV-VIMAP4S-00
PAV-VIMAP8S-10
da Vinci 9.3.4 and higher
PAV-VIMAP4S-10
of 2
