4.6 Network

The PAV-VIMAPxS uses a standard RJ-45 port complying with IEEE 802.3 Ethernet standards. This port supports AVB/TSN for communication with
the Savant Host and with Savant IP Audio devices. If the breakout down-mixed audio is going to be used this port must be connected to a AVB switch.
The VOMVP1x uses a shared Ethernet connection from its 10G connection.

4.7 AC Power Connection

SURGE PROTECTION!
Use a surge-protected circuit for all components and power supplies requiring 100/240V (AC 50/60 Hz) source power.
ELECTRICAL DISCONNECT!
The source power outlet and power supply input power sockets should be easily accessible to disconnect power in the event of an electrical hazard or
malfunction.
Power Management Recommendations
Savant recommends a pure sine wave uninterruptible power supply (UPS) with the ability to shut down the Savant Host before the battery runs out of
power. Never remove power from the Savant Video over IP devices before shutting it down. See
information.

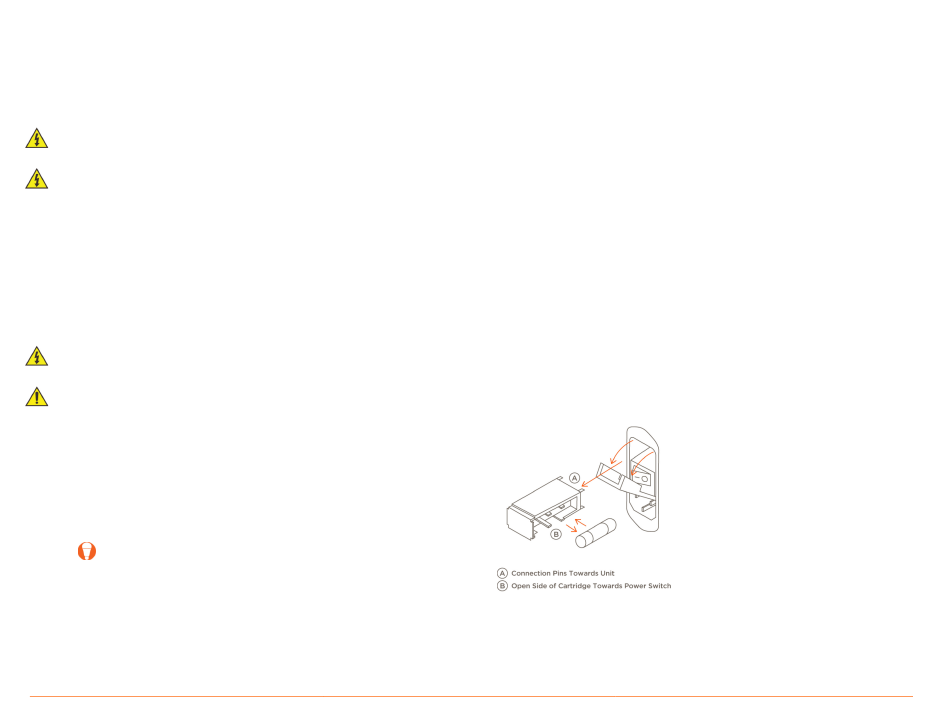

4.8 Checking and Replacing the Fuse

Only the PAV-VIMAPxS has a field replaceable fuse. For fuse information please see the products Quick Reference Guide.
ELECTRIC SHOCK HAZARD:
Disconnect the unit from AC power by removing the power cord from the AC outlet and the unit before replacing the fuse.
IMPORTANT: The orientation of the cartridge within the unit and location of the fuse within the cartridge are crucial to proper operation. Make note of the
orientation of the cartridge and the fuse location within the cartridge before removing.
1. Disconnect the unit from AC power by removing the power cord.
2. Open the fuse cover on the AC power input using a flat head
screwdriver or similar thin flat head tool. This will allow access to
the fuse cartridge.
3. Using a flat head screwdriver or similar thin flat head tool, gently
loosen the cartridge and pull the cartridge out of the unit slowly. As
the cartridge is removed, make note of the orientation, as it is
important to proper operation.
TIP: Mark the chassis and fuse holder with a marker in order to align
when replacing.
4. Remove the old fuse from the cartridge and discard.
5. Gently place the new fuse in the cartridge and place the cartridge
part way into the receptacle aligning it as defined in the diagram.
6. Gently press on the cartridge the rest of the way until it seats into
the terminals at the rear of the slot.
NOTE: If any resistance is encountered during seating the cartridge, DO NOT apply more pressure. Stop pressing on the cartridge, remove it, verify the
orientation, and repeat step.
Savant IP Video with Audio Processing Deployment Guide
009-1621-01 | 181107 12 of 32
Appendix C: UPS Recommendations
