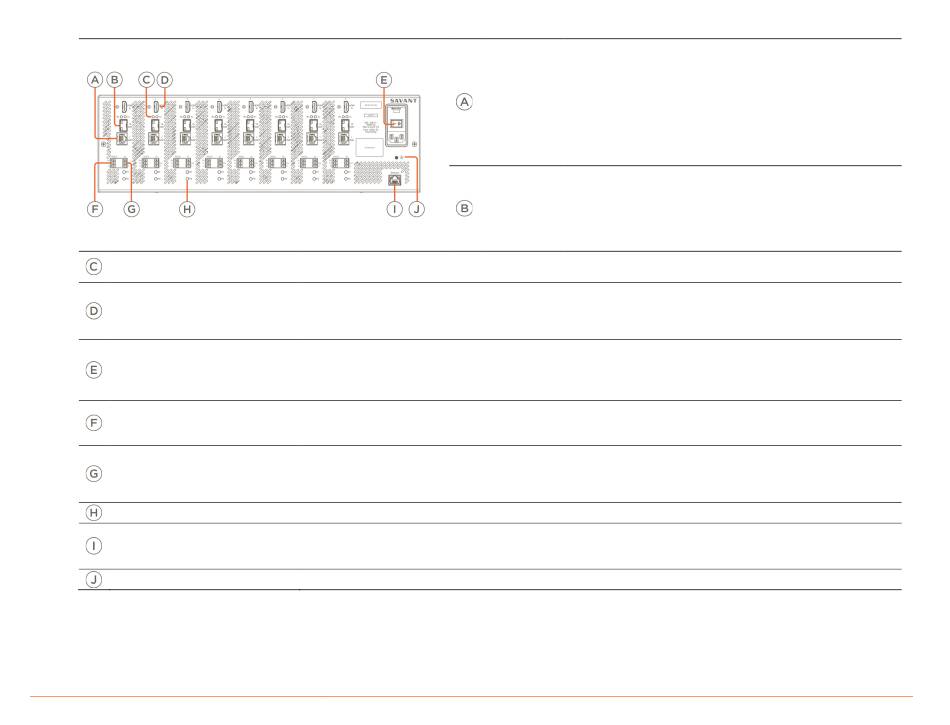

Rear Panel
Rx/Tx LEDs (10 GbE)
HDMI In
Power Input Module
RS-232 Control Port
IR Control Port
Push Buttons
Ethernet
Grounding
Savant IP Video with Audio Processing Deployment Guide
009-1621-01 | 181107
Rx – Link Activity LED indicator for all data received on the 10G connection
Tx – Link Activity LED indicator for all data transmitted from the 10G connection
19-Pin Type A HDMI female digital audio/video input.
Supports HDMI 2.0a
HDMI 2.0 compliant cable is required for 4K
content.
100-240V AC 5A 50/60Hz power input module with On/Off switch.
I – Applies power to the device.
O – Removes power to the device.
NOTE: Includes a field replaceable 5A 250V Fast acting fuse.
3-pin Screw down plug-in connection.
Transmits and receives serial data to and from serial controllable devices. For pin-out information, refer
to the RS-232 Wiring section below
3-pin Screw down plug-in connection.
Transmits IR signals via an IR Flasher
(5V tolerant) to devices with an IR input or IR receiver. For pin-out information, refer to the IR Wiring
section below.
Reserved for future use.
8-Pin RJ-45 female connection. Used to communicate with the Savant System Host.
Supports Audio Video Bridging (AVB)/Time Sensitive Networking (TSN)
NOTE: This port must be connected to a AVB switch in order to use the breakout down-mixed audio.
Chassis Ground (optional)
8 of 32
1G of reserved network data bandwidth commonly used
to connect any network compliant device to transmit its
data onto the Ethernet network by sharing the 10G
network link. 8-Pin RJ-45 female connection.
1 Gigabit
This is a courtesy port it will not work for all network
Ethernet
functions. Example: Spanning tree devices are not
supported by this port.
IMPORTANT! Do not connect these ports to a network
switch.
SFP+ Housing; Used for connectivity to the 10G Ethernet
Network Switch
10 Gigabit
IMPORTANT! For all 10G connections, use only Savant
Ethernet certified SFP+ Direct-Attach Copper (DAC) cables, or
Savant certified fiber and fiber connectors along with
Savant certified SFP+ modules.
